KT-LCD3 eBike Display User Manual
Dear customer, please read this manual before you use KT-LCD3 instrument. The manual will guide
you use the instrument correctly to achieve a variety of vehicle control and vehicle status display.

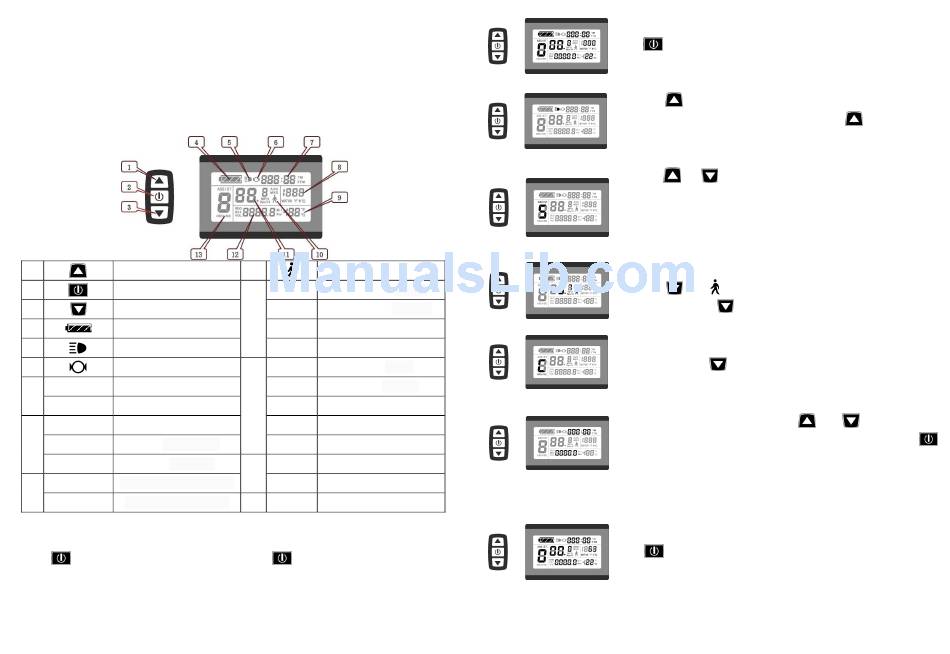

Functions and Display

Instruments using the structure form of instrument body portion and the operation buttons are
designed separately.
1 UP Button
2 SW Button
3 DOWN Button
4 Battery capacity indicator
5 Backlight and headlights
6 The brake display
TM Single trip time
7
TTM Total trip time
MOTOR W
Power display
8 MOTOR ℃ ℃ ℃ ℃ Motor temperature
MOTOR ℉ ℉ ℉ ℉ Motor fahrenheit
Environment temperature
℃ ℃ ℃ ℃
9
Environment fahrenheit
℉ ℉ ℉ ℉

Operation

1. ON/OFF
Hold button long to turn on the power, and hold
power. When the motor stops driving and when the e-bike is not used for a consecutive 5 minutes, it will
automatically shut down and turn off the motor power supply.

2. Display 1

10 6Km/H push power assist
Km/H Riding speed(metric)
MPH
Riding speed (imperial)
11
MXS MAX speed
AVS average speed
Km distance(metric)
Mil distance (imperial)
12 DST Trip distance
ODO
Total distance
VOL Battery voltage
ASSIST Pas level
13
CRUISE
Cruise
long for a second time to turn off the
V1.0

2.1 Turn on backlight and headlights

2.2 Assist ratio gear (ASSIST) switch

2.3 6Km/H assist promotion function

2.4 Cruise function

2.5 Display and delete of single Data

button within 5 seconds, it will automatically return the display interface after 5 seconds, original
content is preserved.
3. Display 2
In the riding mode after 5 seconds, display 2 automatically returns to display 1, and the
originalmotor power (MOTOR W) display is replaced with motor operating temperature display
Hold button to start up and enter display 1.
Hold long to turn on backlight and headlights (the controller
should have headlight drive output function); hold
off the backlight and headlights.
Hold or shortly to switch 1-5 file gear. Gear 1 is for the
minimum power, gear 5 is for the highest power. Each startup will
automatically restore the gear shutdown last time(the user can set
randomly). Gear 0 is without booster function.
Hold and flashes,the vehicle drives at the speed not more
than 6Km /h. Release button,the function is invalid.
After the cruise function is turned on, the trip riding speed is greater
than 11 km/ h, hold long and enter cruise, the CRUISE lit. Brake or
hold any button to cancel.
After power on for 5 seconds, hold
single trip riding time (TM) and single trip distance (DST) flash, hold
button shortly, the content of both is cleared. If failed holding the
Hold button shortly in display 1 to enter display 2.
long again to turn
and at the same time,
