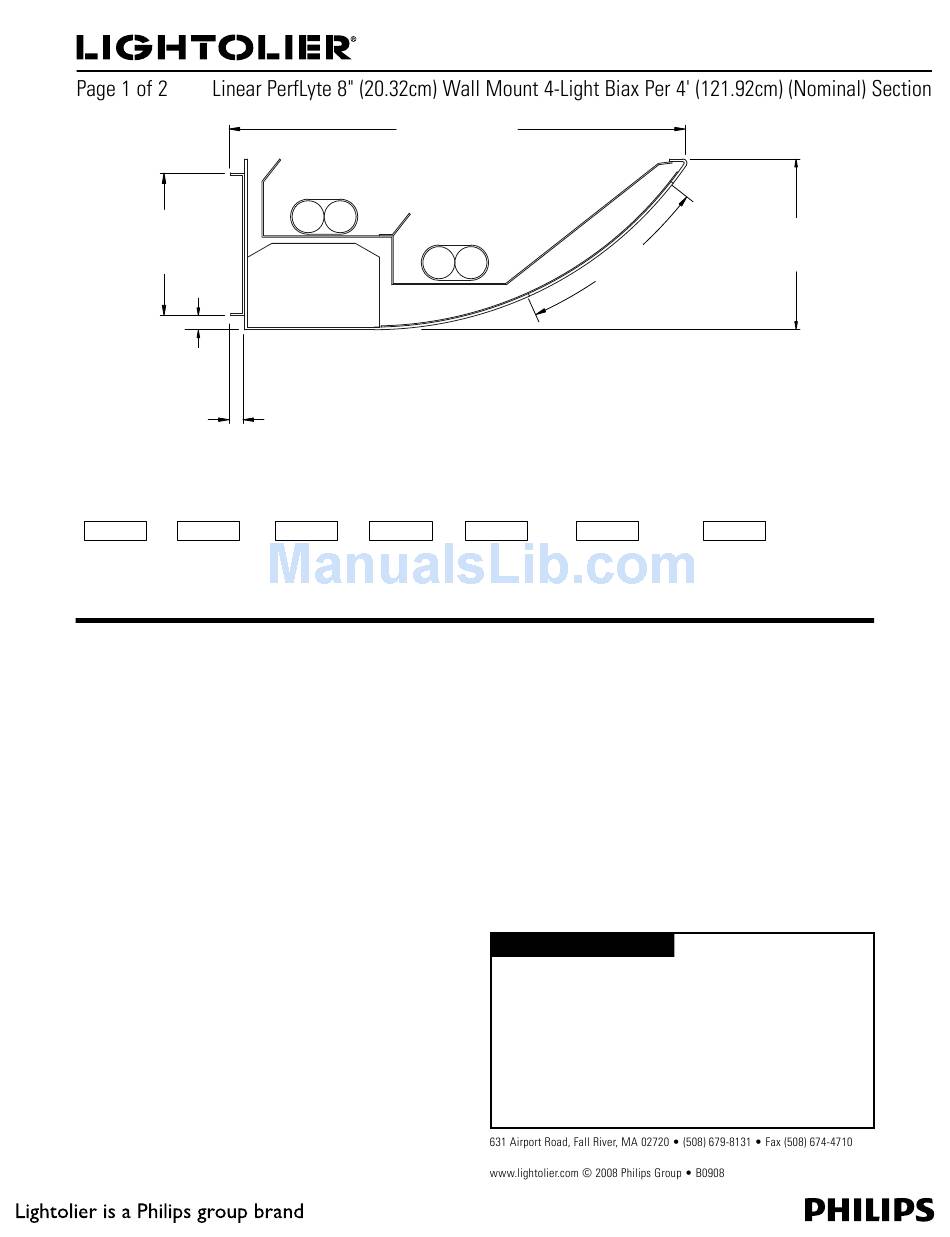

Lightolier LP-23 Specification Sheet

2.50"
(6.35cm)
0.25"(0.64cm)
Module Ordering Information
Style Series
LP W
Complete ordering instructions below.
Features
1. Housing: 18 gauge steel. Die-formed steel end cap with concealed access
holes for through wiring. No exposed fasteners or hardware.
2. Lamping: Four FT40W or FT50W fluorescent lamp per 4-Foot section. Provided
by others.
3. Reflector: Precision die-formed specular aluminum.
4. Diffuser: Opal Acrylic.
Electrical
Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-
ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection
for joiner modules. For special circuiting consult factory. Factory installed ballast
disconnect allows the ballast to be disconnected from and reconnected to incoming
power under load without turning the entire circuit off.
Dimming: 120/277 VAC.
Emergency Battery Pack: 40 watt: 450 lumens @ 90 minutes.
Labels
UL, cUL and I.B.E.W.
Finish
Powder coated baked white enamel. Custom colors available, consult factory.
Options
Dual Switching: Order the DS option for separate row switching. DS option
automatically ships with the X4 option included.
X4 Wire: Order X4 modules for remainder of the run when using dimming
and/or switched emergency battery pack modules.
Emergency Circuiting: Special circuiting - consult factory.
8.00" (20.32cm)
0.25" (0.64cm)
Lamps Type
2
2 = 2 Lt Cross B4 = 40w Biax
B5 = 50w Biax
Section

Lighting Systems

PERF
3.35" (8.51cm)
Half Scale
Length Ballast
4 = 4-Foot U = Uni-voltage
8 = 8-Foot E = Emergency Pack
D1 = Dimming 120v
D2 = Dimming 277v
Ordering Information
Individual Fixtures:
1. Order number of MODULES required.
2. Order one END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete run.
3. Order one END SET per run.
4. Order one JOINER CONNECTOR per MODULE in run minus one.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
LP-23
3.00"
(7.62cm)
Options
Blank = No Options
DS = Dual Switched
X4 = 4th through wire
Type:
