Lightolier Lighting Systems LP-10 Specifications

Module Ordering Information
Style Series
LP 2
Complete ordering instructions below.

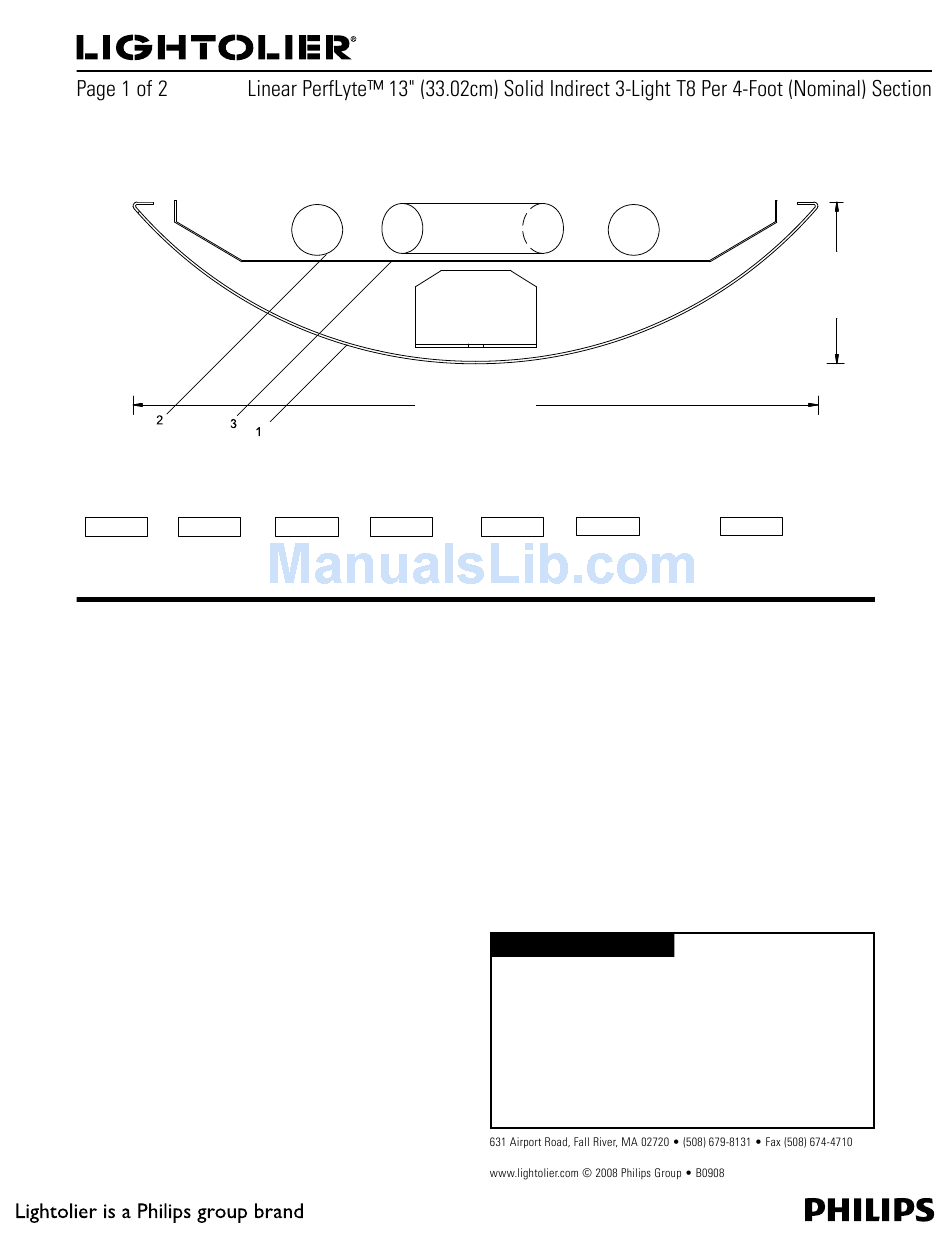

Features
1. Housing: 18 gauge steel. Die-formed steel end cap with concealed access
holes for through wiring. No exposed fasteners or hardware.
2. Lamping: Three T8 32 watt fluorescent lamps per 4-foot section. Provided by
others.
3. Reflector: Precision die-formed CRS painted high reflectance white.
Electrical
Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-
ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection
for joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory
installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
Dimming: 120/277 VAC, 4 wire feed required.
Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.
Mountings
Cable Suspension (not shown) - 4-1/2" (11.43cm) diameter flat canopy finished
white enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up
to 36" (91.44cm) without cutting.
Options
Dual Switching: Order the DS option for separate row switching. DS option
automatically ships with the X4 option included.
4 Wire: Order X4 modules for remainder of the run when using dimming and/or
switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed
End Sets (LP2EC36X4) when using 4 Wire Modules.
Emergency Circuiting: Special circuiting - consult factory.
13" (33.02cm)
Type Lamps
A 3T8
3T8 = 3-F32T8
Lighting Systems
Length Ballast
4 = 4-Foot U = Universal Voltage
8 = 8-Foot E = Emergency Pack
D1 = Dimming 120v
D2 = Dimming 277v
Ordering Information
Individual Fixtures:
1. Order number of MODULES required.
2. Order one POWER FEED END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete run.
3. Order one POWER FEED END SET per run.
4. Order one CABLE ASSEMBLY per MODULE minus one per run.
5. For runs that exceed amperage limits, order the appropriate number of SINGLE
CABLE & CORD FEEDS.
Finish
Powder coated baked white enamel. Custom colors available, consult factory.
Labels
UL, cUL and I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
LP-10
3"
(7.62cm)
Options
Blank = No Options
DS = A-B Switch
X4 = 4 Wire for Dimming &
Switched Emergency
Type:
