Lightolier Lighting Systems RT6-11 Specification Sheet

Ordering Information
Lytetube Indirect Wall Mount:
4 Foot Joiner: RT656042
8 Foot Joiner: RT656082
Complete ordering instructions on back.
Features
1. Housing: Extruded aluminum. 1/8" (0.32cm) aluminum end cap attached with
no exposed fasteners.
2. Lamping: Four T8 32 watt fluorescent lamps. Provided by others.
3. Reflector: Precision die-formed high gloss baked white enamel reflector.
4. Alignment/Locking Mechanism: Heavy gauge steel bracket with integral
splines for alignment of housing modules, joins modules tightly together
without removing any luminaire component at time of installation.
Electrical
Specify 120 volt or 277 volt. 3 conductor, 18 gauge wire. Color-coded quick
connectors allow ease of connection for joiner modules. For special circuiting,
consult factory. Rapid start, HPF, class "P" thermally protected. PowerSpec HDF
dimming ballast is available. Factory installed ballast disconnect allows the ballast
to be disconnected from and reconnected to incoming power under load without
turning the entire circuit off.
Mountings

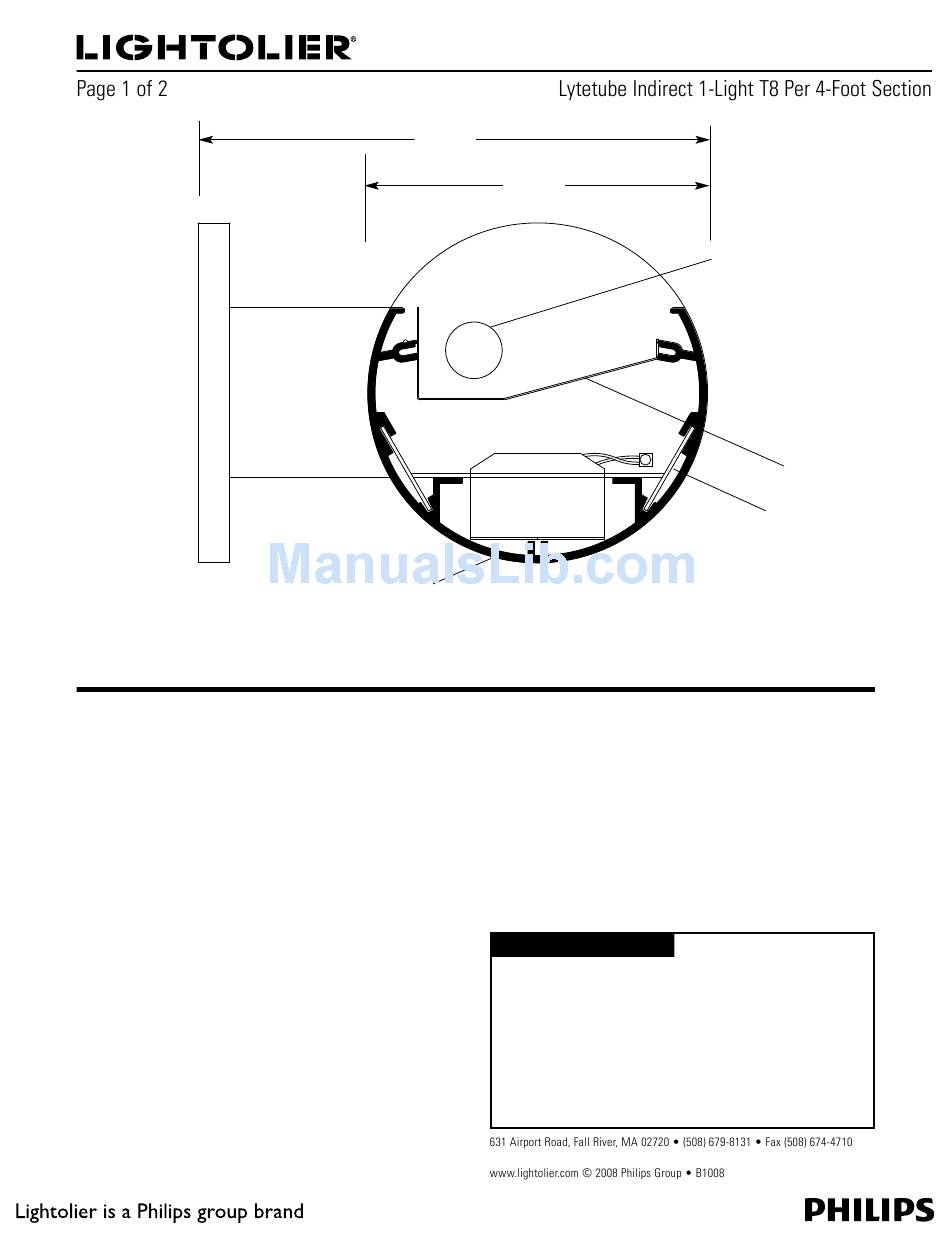

Wall Mounting: (2) 3" (7.62cm) x 1" (2.54cm) extruded arms with 4" (10.16cm) x 6"
(15.24cm) cast aluminum back plate. 9" (22.86cm) projection from wall.
9" (22.86cm)
1
Ballast & Voltage (add code to end of base catalog number - Example: RT656082E82)
E81 = T8 Electronic 120v HD1 = T8 Electronic PowerSpec Dimming 120v
E82 = T8 Electronic 277v HD2 = T8 Electronic PowerSpec Dimming 277v
For all fixtures represented in this family please refer to the brochure and/or additional specification sheets.
Lighting Systems
6" (15.24cm)
Finish
Powder coated baked white enamel. Custom colors available, consult factory.
Options and Accessories
L and Inline joiner blocks, emergency battery packs, dual switching and fusing
available.
Labels
UL, cUL and I.B.E.W.
US Patent No. 4,717,993.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
RT6-11
2
Half Scale
3
4
M71 = T8 Electronic Dimming 120v
M72 = T8 Electronic Dimming 277v
Type:
