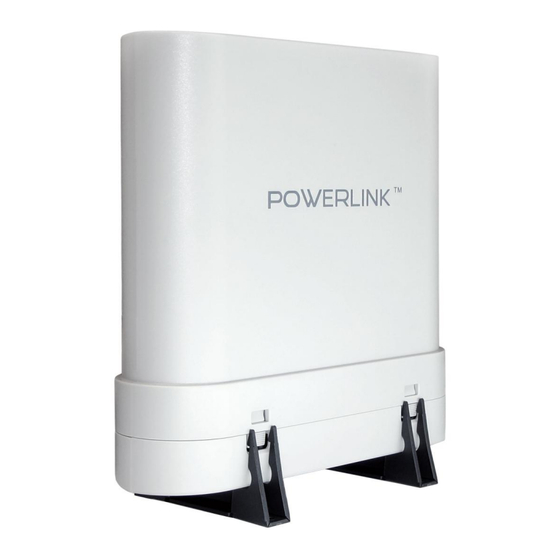

Powerlink PL-2814N Outdoor Plus Installation Manual

Wireless n usb adapter
Hide thumbs

Advertisement

Quick Links

Wireless N USB Adapter
Installation Manual
Part#: PL-2814N
Model: Outdoor Plus
V. 0613

Advertisement

loading
Need help?

Need help?

Do you have a question about the PL-2814N Outdoor Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powerlink PL-2814N Outdoor Plus

Summary of Contents for Powerlink PL-2814N Outdoor Plus

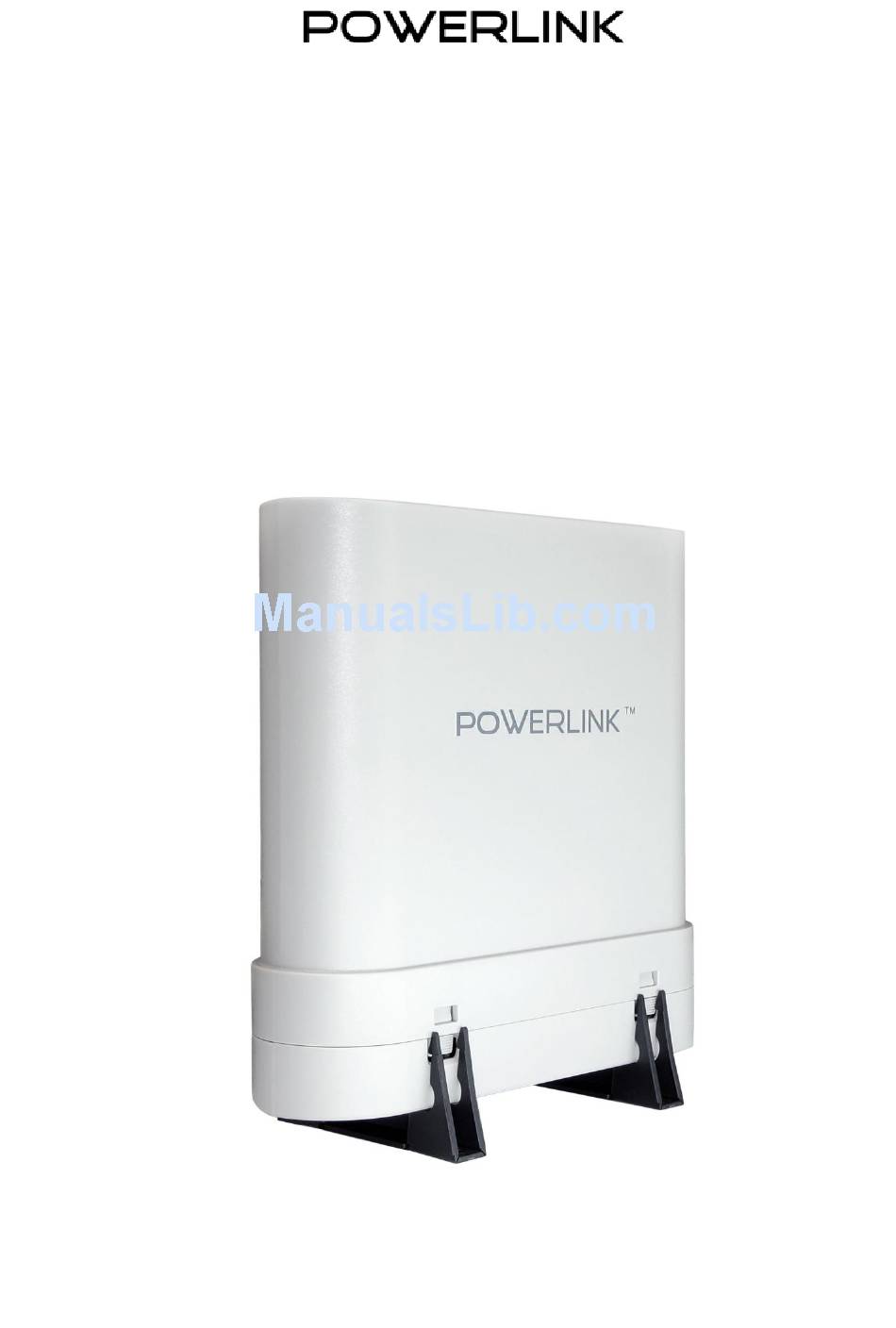

  • Page 1 Wireless N USB Adapter Installation Manual Part#: PL-2814N Model: Outdoor Plus V. 0613...

  • Page 2: Table Of Contents

    Part#: PL-2814N Contents Chapter 1 Getting Start ..................3 Chapter 2 Installation Guide................5 Installing the Drivers for Mac OS X...............10 Uninstall the Drivers & Client Utility...............12 Chapter 3 Connection Guide ................14 Connecting with Windows................14 Connecting with Mac OS................21 Chapter 4 Trouble Shooting................25 Page 2...

  • Page 3: Chapter 1 Getting Start

    Part#: PL-2814N Chapter 1 Getting Start Minimum System Requirements  Pentium® 300 MHz or higher compatible processor  At least one available USB 2.0 or 1.1 port  50Mbytes free hard disk space.  Windows 2000, XP, XP professional, Vista, Windows 7, Windows 8 If you do not have a USB 2.0 port on your computer, the throughput of the USB adapter will be limited to the 14 Mbps of the USB 1.1 standard.
  • Page 4 Part#: PL-2814N Keep away from large amounts of water such as fish tanks and water coolers. Reduce interference Keep away from computers, cordless phones, cell phone, coping machine and fax machines. Keep away from microwave oven. Site survey nearby wireless devices to determine your operating channel. 1.1 Features ...

  • Page 5: Chapter 2 Installation Guide

    Part#: PL-2814N Chapter 2 Installation Guide 2.1 Installing the Drivers for Windows NOTE: Snap-shot screens of the following installation procedure are based on Windows XP. Installation procedures will be similar for other windows operating systems. 1. Power on your PC, let the operating system boot up completely, and log in as needed. 2.
  • Page 6 Part#: PL-2814N 5. Click Next to accept the Agreement. Or click Cancel to cancel the installation. Page 6...
  • Page 7 Part#: PL-2814N 6. Select Install driver and Ralink WLAN Utility or Install driver only then click Next. 7. Select Ralink Configuration Tool or Microsoft Zero Configuration Tool then click Next. a. It’s recommended to select Ralink Configuration Tool, which provides fully access to all function of PL-2814N.
  • Page 8 Part#: PL-2814N 8. Click Install to start installation. Or click Cancel to cancel the installation. Page 8...
  • Page 9 Part#: PL-2814N 9. Click Finish to complete the software installation. Page 9...

  • Page 10: Installing The Drivers For Mac Os X

    Part#: PL-2814N You will see a tray icon appear in your system tray at the bottom of the screen after the software and hardware installation completed successfully 2.2 Installing the Drivers for Mac OS X Follow the steps below in order to install the USB adapter drivers: Page...
  • Page 11 Part#: PL-2814N 1. Insert the CD-ROM that was provided to you in this package. The setup should run automatically. If the setup does not run automatically, then you must manually select the Macintosh.dmg file from the CD-ROM drive. 2. Click on the Continue button to configure the next step. 3.
  • Page 12 Part#: PL-2814N 4. Click on the Continue button to configure the next step. 5. The installation is complete. Click on the Restart button. 6. Carefully insert the USB adapter into the USB port. MAC OS X will then detect and install the new hardware.

  • Page 13: Uninstall The Drivers & Client Utility

    Part#: PL-2814N 2.4 Uninstall the Drivers & Client Utility If the USB client adapter installation is unsuccessful for any reason, the best way to solve the problem may be to completely uninstall the USB adapter and its utility and repeat the installation procedure again.

  • Page 14: Chapter 3 Connection Guide

    Part#: PL-2814N Chapter 3 Connection Guide 3.1 Connecting through Ralink Utility Clicking the Ralink icon on your desktop will bring up the utility main window. Users can find the surrounding AP signal in the list. You can use the advanced tab to configure other advanced features provided by Ralink's wireless NIC.
  • Page 15 Part#: PL-2814N Figure 3-1 2. Select your desire SSID you want to connect: Double Click the highlighted SSID to go to the Profit Settings. See Figure 3-2 and Figure 3-3 Figure 3-2 Page...
  • Page 16 Part#: PL-2814N Figure 3-3 3. Under the Profile Settings, if there is password and security for SSID you chose, please following the steps to set up the Authentication and Encryption (You need to know the security type and password). See Figure 3-4 Figure 3-4 4.
  • Page 17 Part#: PL-2814N Figure 3-5 3.3 Steps to add wireless signal with Ralink Utility for future use 1. Click “Profit Setting" and click Add to Profile : This part will help your wireless adapter memorize the signal and password for your future use. See Figure 3-6, Figure 3-7 and Figure 3-8 Figure 3-6 Page...
  • Page 18 Part#: PL-2814N Figure 3-7 Figure 3-8 3.4 Connecting with Microsoft Zero Configuration for Window XP (Window 7 is similiar) After specifying the Microsoft Zero Configuration tool to configure your wireless on system tray as below. Select “View network, right click on the icon available wireless Networks”...
  • Page 19 Part#: PL-2814N Figure 3-6 The tool shows the available wireless networks. Select your network SSID to connect with like Figure 3-7. Figure3-7 If your wireless Network has encryption enable, you will be ask to enter the password like Figure 3-8. Please enter your wireless password at “Network key” section twice and click “Connect”...
  • Page 20 Part#: PL-2814N Figure 3-8 If your wireless Network does not contains encryption, select the intended access point and click "Connect". Then click "Connect Anyway" like Figure 3-9 Figure 3-9 Once completed, you should see like Figure 3-10 as your computer is now “Connected”...

  • Page 21: Connecting With Mac Os

    Part#: PL-2814N Figure 3-10 You should see the pop-up window on your low right hand corner indicate the connected status. As shown in Figure 3-11 Figure 3-11 3.5 Connecting with Mac OS The Connection Utility can also help you connect through Mac OS. Page...
  • Page 22 Part#: PL-2814N Figure 3-13 Upon opening the Wireless Utility program, first click open “Site Survey” Select your desired AP signal under the AP List. You can further search the signal by clicking “RESCAN” After selecting the AP signal, you can select either “CONNECT” or “ADD PROFILE”...
  • Page 23 Part#: PL-2814N Figure 3-14 Once click Profile, you will be prompt to ask for your personal settings such as “System Configuration” and “Authentication & Security”.  You have the choice to select “Authentication & Security” and enter the password for connecting to the signal. Please make sure that your settings for Authentication &...
  • Page 24 Part#: PL-2814N Figure 3-15 For WEP, Select Open or Shared from the Authentication Type‘s drop-down list.  Then select WEP from Encryption’s drop-down list.  WEP Key: Type a character string into the field.  For 64-bit enter 5 alphanumeric or 10 hexadecimal characters. ...

  • Page 25: Chapter 4 Trouble Shooting

    Part#: PL-2814N Figure 3-16 For WPA or WPA2, please select from Authentication’s drop-down list.  Select TKIP or AES from Encryption’s drop-down list.  WPA Preshared key: Enter a pass phrase which is between 8 and 32 characters long.  Click on the OK button to save the changes.
  • Page 26 Part#: PL-2814N following: Make sure that your PC has a free IRQ (Interrupt ReQuest, a hardware interrupt on a PC.) Make sure that you have inserted the right adapter and installed the proper driver. If PL-2814N does not function after attempting the above steps, remove it and do the following: Uninstall the driver software from your PC.
  • Page 27 Part#: PL-2814N  Ad-hoc function must be enabled for the wireless device you wish to establish a direct wireless link.  Please adjust the position of PL-2814N and click Rescan button for few more times. If you can find the wireless access point or wireless device you want to connect by doing this, try to move closer to the place where the wireless access point or wireless device is located.
  • Page 28 Part#: PL-2814N For questions, please visit our website www.premiertek.com Page...
