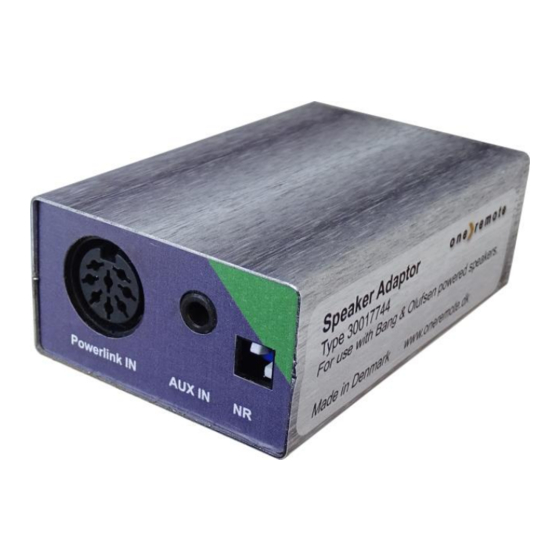

- Page 1 PowerLink Speaker Adaptor OneRemote Type 30017744 User Manual 30017744u4uk...
-
Page 2: Table Of Contents
Lossless Powerlink audio pass ....................5 Datalink pass ..........................5 Installation ............................6 Cable quality ..........................6 AUX source Noise reduction ..................... 6 AUX Sound Level ........................6 Technical specifications ........................7 Connections ..........................7 PowerLink Speaker Adaptor – Application Examples ................8 www.oneremote.dk... -
Page 3: Powerlink Speaker Adaptor
POWERLINK SPEAKER ADAPTOR The PowerLink Speaker Adaptor makes it possible for two different sound sources to share one set of active (powered) speakers, like Bang & Olufsen PowerLink speakers. Input Sources: Any B&O radio or TV speaker out source. -
Page 4: Plug & Play Operation
PLUG & PLAY OPERATION There is no programming needed to make the adaptor work. When connected sound from one connected device is lead to the speakers in accordance with below truth table. The PowerLink source will always have PowerLink PowerLink Out priority over the AUX source. -
Page 5: Features
Analog ground signal is switched with a mechanical relay. Digital data signal flow via galvanic isolating optocoupler. LOSSLESS POWERLINK AUDIO PASS The PowerLink audio signals pass without any modification; the output of the switch is the same as the input. DATALINK PASS Datalink signals are passed to the output when the PowerLink source is active. -
Page 6: Installation
TV is another type. Use the two NR DIP switches on the PowerLink Adaptor to match the source, and thereby reduce noise. The switches must both be either up or down. Use the position with the best result. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Dimensions 25 x 45 x 74 mm Included accessories Power Adaptor 12VDC @ 400mA Euro CONNECTIONS Sockets: PowerLink IN DIN 8-pin PowerLink Powerlink OUT DIN 8-pin PowerLink AUX in 3.5 mm stereo jack Power 12V DC 300mA www.oneremote.dk... -
Page 8: Powerlink Speaker Adaptor – Application Examples
POWERLINK SPEAKER ADAPTOR – APPLICATION EXAMPLES When the B&O radio is powered up, Beo4 Non B&O TV, all controlled sound from the radio is automatically routed to the speakers. When only the TV is powered up, TV sound is routed to the speakers.
