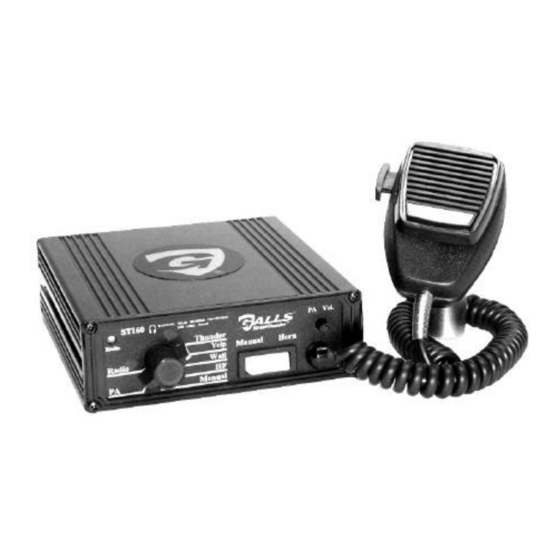

- Page 1 Street Thunder ™ ST160 SIREN AMPLIFIER INSTALLATION AND OPERATING INSTRUCTIONS 1340 Russell Cave Road / P.O. Box 54308 Lexington, KY 40505 Tel: (800) 477-7766 Fax: (800) 944-2557 Website: www.galls.com REV. - 10/9/03 PLITSTR314...
- Page 2 Due to continuous product improvements, we must reserve the right to change any specifications and information, contained in this manual at any time without notice. Galls makes no warranty of any kind with regard to this manual, including, but not limited to, the implied You don't need to call us if you have a problem with the warranties of merchantability and fitness for a particular purpose.
-
Page 3: Specifications
The ST160 has several options that can be selected during installation. Jumpers on Galls warrants this new product to be free from defects in material and workmanship, under the printed circuit board, inside the case, allow the installer to select these various normal use and service, for a period of seven (7) years from the date of delivery to the first options. -
Page 4: Troubleshooting
SERVICE This unit is designed to provide years of reliable service under even the worst conditions. Many times there may appear to be a problem with the unit when the true problem is in the speaker(s) or improper installation. The following chart shows typical symptoms and possible causes. - Page 5 (button on the side) is pressed. The ST160 siren may be mounted above the dash, below the dash, on a tunnel, or in a rack with the mounting u-bracket provided. Choose a mounting location AUXILIARY INPUT convenient to the operator and away from any air bag deployment areas.
- Page 6 MANUAL / HORN MOMENTARY ROCKER SWITCH The front panel of the ST160 contains a momentary rocker switch that operates the Manual function when the left side is depressed and the Air Horn when the right side is depressed. Manual – Pressing the left side of this momentary rocker switch provides a generally quicker changing tone when the selector switch is in the Wail, Yelp or Thunder positions.
- Page 7 Whenever +12VDC is applied to the yellow Connect it to +12VDC from the dash lights, parking lights or other switched wire, the ST160 will be "on". The rotary source. Be sure to use minimum size #18 AWG wire. selector switch controls the primary operating function of the siren.
