Download
Share
Print this page
  1. Manuals
  2. Brands
  3. Lightolier Manuals
  4. Lighting Equipment
  5. Lighting Systems EG2-5
  6. Specification sheet

Lightolier Lighting Systems EG2-5 Specification Sheet

Lighting systems energos 2-light t5 per 4' (121.92cm) (nominal) louver
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
1
Feature Specifications
Electrical
Connections:
male to female, starting from the power feed end set.
Male
Emergency Battery Pack:
Dimming:
Labels Included
5
Features
1. Housing:
2. Lamping:
3. Reflector:
4. Louver:
5. Optional Slotted Top Reflector:
Female
Mountings
Finish
Ordering Instructions
Individual Fixtures:
Continuous Rows:
We reserve the right to change details of design, materials and finish.
Lighting Systems
2
3
4
as an option, see ordering information.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
EG2-5
Type:

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lighting Systems EG2-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Lightolier Lighting Systems EG2-5

Summary of Contents for Lightolier Lighting Systems EG2-5

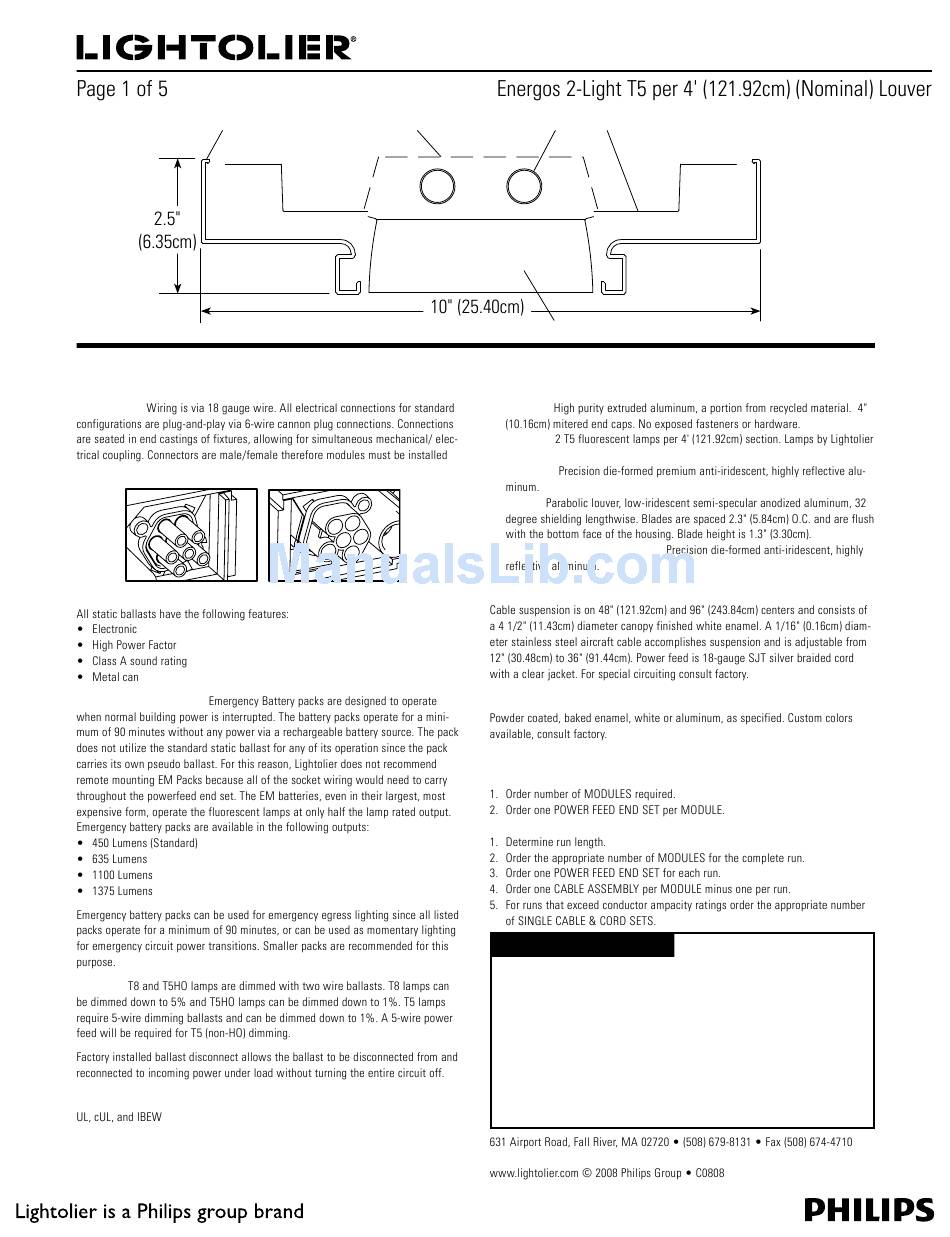

  • Page 1 Feature Specifications Electrical Connections: male to female, starting from the power feed end set. Female Male Emergency Battery Pack: Dimming: Labels Included Lighting Systems Features 1. Housing: 2. Lamping: as an option, see ordering information. 3. Reflector: 4. Louver: 5. Optional Slotted Top Reflector: Mountings Finish Ordering Instructions...

  • Page 2: Lighting Systems

    Ballast Distribution 2 = 2 Lamps, 5 = 2 Lamps, Reflector When ordering no lamps provided by Lightolier, use Lamp code “Z” Module Ordering Specifications Lamping and Distribution 2 = 2 Lamp 5 = 2 Lamp, Slotted Top Reflector Ballast Specifications...
  • Page 3 Fixture Lengths & Mounting Locations 48" (121.92cm) 4' (121.92cm) Run 4'- 8" (142.24cm) OA 96" (243.84cm) 8' (243.84cm) Run 8'- 8" (264.16cm) OA 48" (121.92cm) 96" (243.84cm) 12' (365.76cm) Run 12'- 8" (386.08cm) OA 96" (243.84cm) 16' (487.68cm) Run 16'- 8" (508.00cm) OA 48"...
  • Page 4 Performance — Two Lamp Fixture With Open Top 1713 Performance — Two Lamp Fixture With Optional Slotted Top Reflector 70.1 Candlepower Zone Candelas 1122 1137 1072 1301 1061 1116 1202 1032 1060 1061 1061 1060 1066 1066 1066 1066 1066 Candlepower Zone Candelas...
  • Page 5 Ballast and Lamp Ordering Combinations Lamp Type Ballast Ballast Desgn. (T8 or T5) Factor (BF) THD (%) <10 <10 <10 <10 <10 <10 <10 <10 <10 <10 <10 <10 Notes: Lamp Lamp Lamp IES Output Rated Rated Color (Lumens) Wattage Output (Kelvin) 2600...
