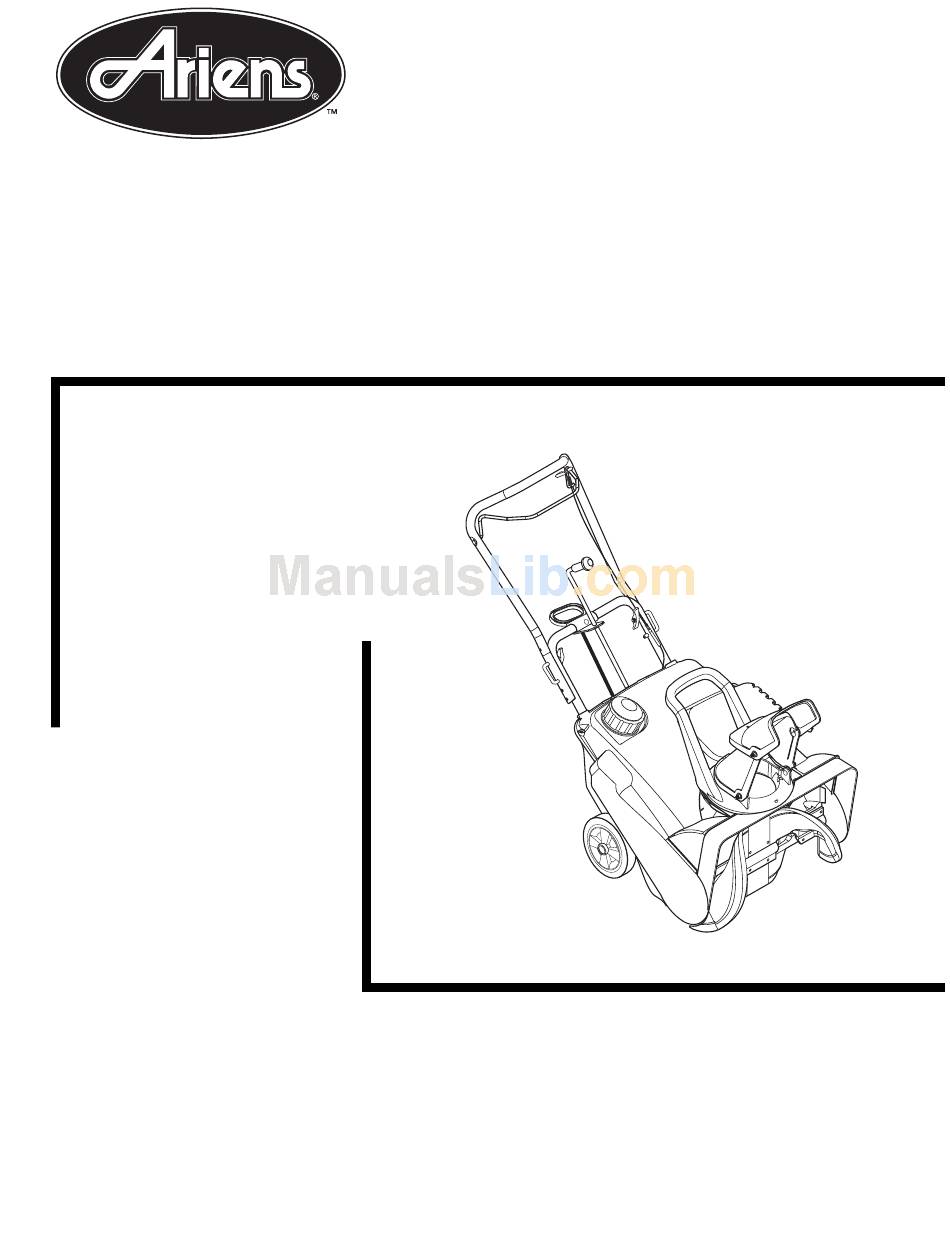

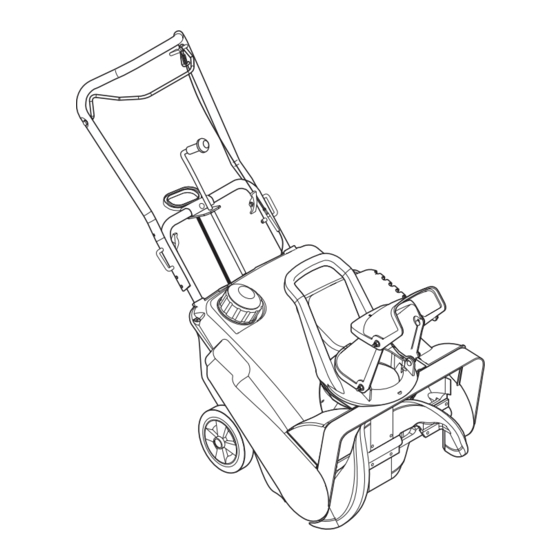

- Page 1 Sno-Thro ® Parts Manual Models 938015 - 322 938017 - 522 938018 - 722 938019 - 522 938300 - 522 03812100F 12/03 Supersedes 03812100,A-E Printed in USA...
-
Page 2: Decals
Ariens authorized replacement part may adversely affect the performance, durability, or safety of this unit and may void the warranty. Ariens disclaims liability for any claims or damages, whether warranty, property damage, personal injury or death arising out of the use of unauthorized replacement parts. -
Page 3: Table Of Contents
Handlebars and Controls ..... 10 ECALS Model 938015, 017, 018, 019, 300 DANGER / PELIGRO © Copyright 2000, 2003 Ariens Company 08083700A ROTATING PARTS Stop engine & remove ignition key before clearing. -
Page 4: Engine And Drive
Model 938015, 017, 018, 019, 300 NGINE AND RIVE 3 HP PS0036... - Page 5 Item Part No. Qty. Description 07525300 Cap-Fuel 53802500 Kit, 938 Fuel Tank (Includes Item 31 and 32 03807800 Tape Foam, Neoprene 6.0" 06939100 Clamp-Hose Wire .49/.51 x .116 03807900 Gas Line .25" I.D. x 9.5 (017, 018, 019, 300) 03328000 Gas Line .25"...
-
Page 6: Chassis, Cowl, Wheels And Supports
HASSIS HEELS AND UPPORTS Model 938015, 017, 018, 019, 300 PS0515... - Page 7 HASSIS Item Part No. Qty. Description 53801800 Cowl-Assembly (Includes Item 3) 07412300 Screw-Special-Tapping #10 x 1.0 with #12 Head 03805000 Sheet-Heat Reflective (017, 018, 019, 300) 03805200 Sheet-Heat Reflective 3 x 5 (015) 03810451 Plate-Cowl Retainer 07413300 Screw-Tapping 12-24 x .50 03810500 Chassis 03807151...
-
Page 8: Auger And Discharge Chute
UGER AND ISCHARGE HUTE Model 938015, 017, 018, 019, 300 PS0064... - Page 9 Item Part No. Qty. Description 06219900 Bolt-Round Head Square Neck .25-20 x .75 Grade 5 53800400 Deflector-Discharge Chute Assembly 06527600 13 Nut-Locking-Center-Flange .25-20 06437800 Washer-Flat-Rubber .31 x 1.25 x .06 06114400 Screw-Machine .25-20 x .75 53801700 Chute-Discharge 03801800 Handle 07409500 Screw-Tapping 8-18 x 1.50 07412000 Screw-Tapping .25 x .50 Hex Washer Head...
-
Page 10: Handlebars And Controls
Model 938015, 017, 018, 019, 300 ANDLEBARS AND ONTROLS PS0056... - Page 11 Item Part No. Qty. Description 03804451 Handle Bar-Upper 03802700 J Bolt .31-18 06439400 Washer-Flat-Steel .33 x .88 x .062 06307400 Washer-Locking .31 x .097 Heavy 07531700 Knob, Wing .31-18 03809051 Bail, Single Stage 05514500 Bushing-Flange .33 x .44 x .44 x .56 06437200 Washer-Flat-Steel .34 x .69 x .065 07517000...
- Page 12 Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.ariens.com...
