Summary of Contents for Sunload MultECon Series M60

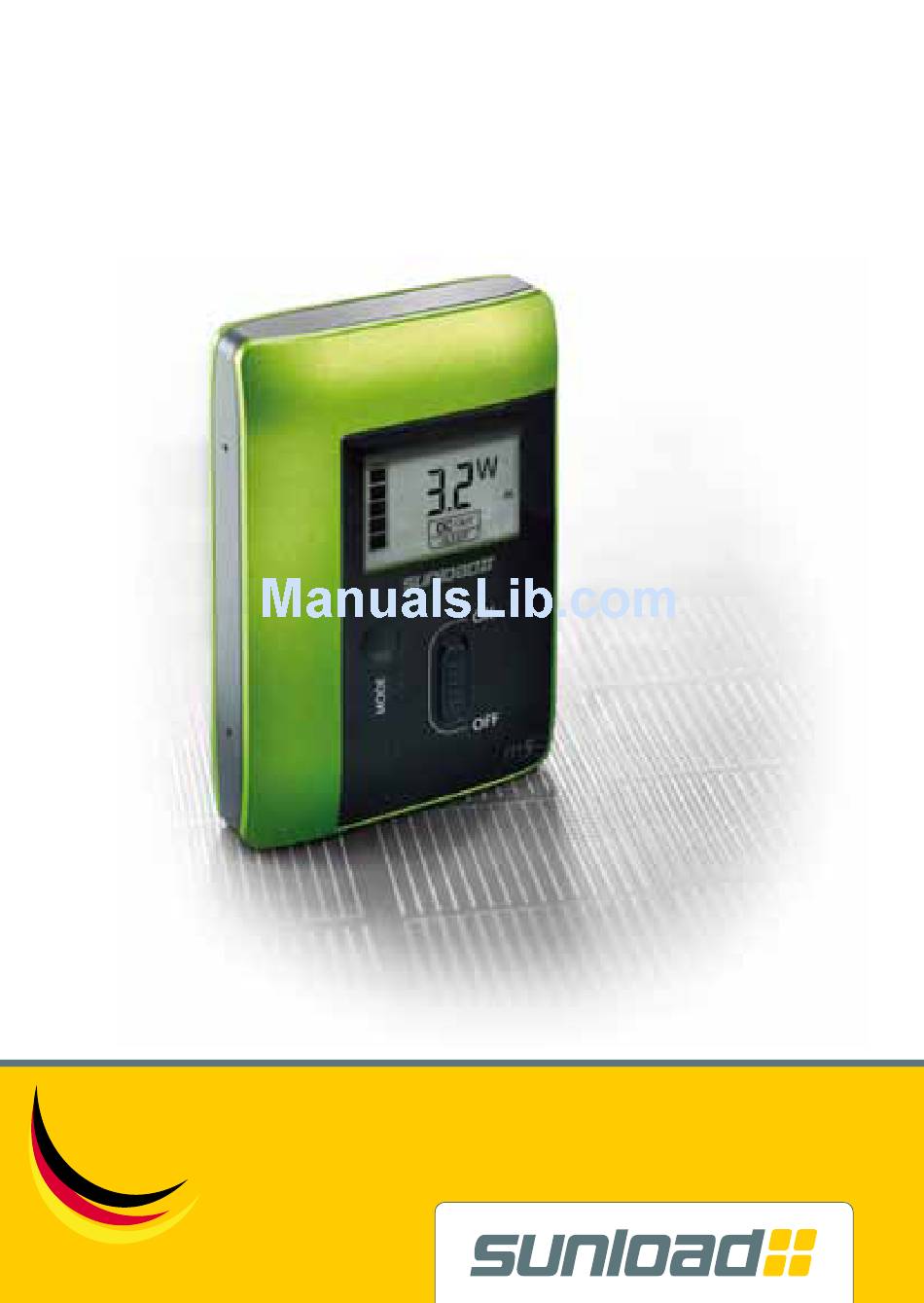

- Page 1 MultECon Charger M5 Manual and warranty. Made in Germany...
- Page 2 European Union. The CE sign is the manufacture’s declaration that the product meets the applicable EU directives and thus may be safely operated. In addition, the SUNLOAD has the compliance with CE regulations confirmed by an independent institute.
- Page 3 Moreover your MultECon Charger M5 will take you to the age of solar power generation. In combination with a SUNLOAD solar panel you will soon generate your own solar power (see optional accessories). Enjoy your new MultECon Charger M5.
-
Page 4: Table Of Contents
Technical data ....................18 Trouble shooting ..................... 20 Cleaning ......................21 Disposal ......................21 Declaration of conformity ................22 Warranty ......................23 How to replace the battery ................23 SUNLOAD customer service - What can we do for you? ........23... -
Page 5: About This Manual
About this manual This M5 comes with a multilevel safety system. Nevertheless we recommend you to read this manual carefully. In order to avoid any risk or injuries make sure to operate M5 only as described in this manual. Please keep this manual for reading it from time to time. -
Page 6: Safety Advice
If the device does not work properly, please read the trouble-shooting section before calling customer service Do not use other accessories than recommended by SUNLOAD! Do not expose to open fire, water, rain, snow or wet environment. Risk of explosion or short circuit! Protect the device from getting wet (e.g. in case of... -
Page 7: The Built-In Battery
Technical Data section. (Page 19) The built-in battery is cadmium free. Please note, that the battery may only be replaced by SUNLOAD customer service. Otherwise your limited warranty will become void! Please note the disposal recommendations for the built-in battery! Several electronic safety stages in your M5 protect the battery against over- load and overcurrent and as far as possible against excessive discharge. -
Page 8: Scope Of Supply And Optional Accessories
Other adapter cables and plugs For more information about connectable mobile equipment and the required adapter plugs, please go to our Web site or contact our customer service. (support@sunload.de). You may also download the list from the support section on our homepage (www.sunload.com) -
Page 9: Which Solar Panel Fits To M5
The nominal capacity of M5 is 1.62 Ah (equate to a capacity of a smartphone). When using a Sunload solar panel 6.5 Wp (flexible and foldable) for the com- plete charging you need at least 2.1h – 1.28h (77 min) per Ah. - Page 10 To charge an empty battery independent from the season you need in Germany 3 hours in the following conditions: midday sun, cloudless sky and a perfect orientation towards the sun. In Germany we noted following average duration of the complete charging process of M5 depending on place and season.
-
Page 11: How To Put The Device Into Operation
How to put the device into operation Controls You may control the device with a slide switch and a push button. Display numeric display / charge level / trend indication Push button switch between display modes / reactivate from standby mode/ set display menu Slide switch reactivate from standby... -
Page 12: Electrical Connections
Slide switch options DC IN DC OUT DC input and USB ready / in energy saving (standby) mode DC IN DC OUT switched off Push button functions Push and release In standby mode (display off or showing SLEEP) re-enable input, output and display. -
Page 13: Display
Display Use the display to actively watch and monitor all electrical processes around solar power generation and storage as well as the current consumption of your small mobile devices. You may, for instance, check the charging behavior, position the solar panel perfectly with regard to sunlight or estimate the relationship between the incoming solar energy and the power consumption of a connected device. -
Page 14: Usage
Usage How to charge your M5 from mains You may use the included power adapter to charge the M5 device on the 100V - 240 V mains. For charging on mains power supply systems only use the included power adapter. Otherwise there may be safety risks or the M5 device may be damaged. -
Page 15: How To Charge Your M5 With Solar Power
20 percent as compared with systems without MPP-Tracking. How to connect the solar panel When connecting make sure that polarity is correct if the panel is not a SUNLOAD product. The voltage reversal can damage your device. DC IN Plug the DC jack of the solar panel into the port of the M5. -
Page 16: How To Charge Mobile Devices With Your M5
How to charge mobile devices with your M5 This M5 device may charge and operate almost all small mobile electronic devices (e.g. mobile phones, MP3 players, GPS devices, PDAs, digital cameras etc.) with a USB based power supply system. Please, use the appropriate USB charging cable for your device. -
Page 17: The Sunload Power Management
The SUNLOAD power management SUNLOAD power management technology offers maximum user comfort with feed the M5 battery minimum energy consumption. For example, you may easily while charging a mobile device connected to the USB output . The plus or minus sign below the battery symbol in each case indicates the trend, i.e. -
Page 18: Technical Data
Technical data Connections Socket Typical values Description DC IN 6...30 V (DC) Suitable for solar panels with an open circuit max. 0.5 A (DC)/6 W voltage of up to 30 V or for 12 V power adapter DC OUT 5 V (DC) USB port for connecting the mobile device max. - Page 19 Operating conditions Max. ambient temperature range -10°C to +40°C Ambient conditions <92% relative air humidity, no condensation, no corrosive atmosphere. Storage conditions Short term storage temperature -20°C to +50°C Long term storage temperature -20°C to +20°C Ambient conditions <92% relative air humidity, no condensation, no corrosive atmosphere.
-
Page 20: Trouble Shooting
Trouble shooting Problem Solution „SLEEP“ Display shows The USB output is in standby mode. It will be enabled auto- matically, when a mobile device connected to the USB output is detected. For technical reasons some devices may not be detected. Please enable the M5 device manually in these cases, MODE by shortly pressing the push button. -
Page 21: Cleaning
Cleaning Since your M5 device must not get in touch with moisture, please wipe it with a dry soft cloth, when required. Disposal Please dispose of the package properly after separating the materials. The symbol of crossed out waste bin indicates that the product is a subject to the European directive 2002 / 96/EC. -
Page 22: Declaration Of Conformity
Declaration of conformity... -
Page 23: Warranty
Please read our frequently asked questions (FAQ) in the support section of our homepage (www.sunload.com). In the download section you may find lists of connectable devices. For further questions please email us to support@sunload.de or call the customer service phone + 49 30 743 04 87 14. - Page 24 SUNLOAD Mobile Solutions GmbH Wilhelmstr.138 10963 Berlin • Germany +49 30 7430487-0 +49 30 7430487-19 E-mail info@sunload.de www.sunload.com © October 2010, Sunload Mobile Solutions GmbH Berlin / Germany. All rights reserved. Subject to change without prior notice and errors expected.
