Summary of Contents for Sunload mVELO

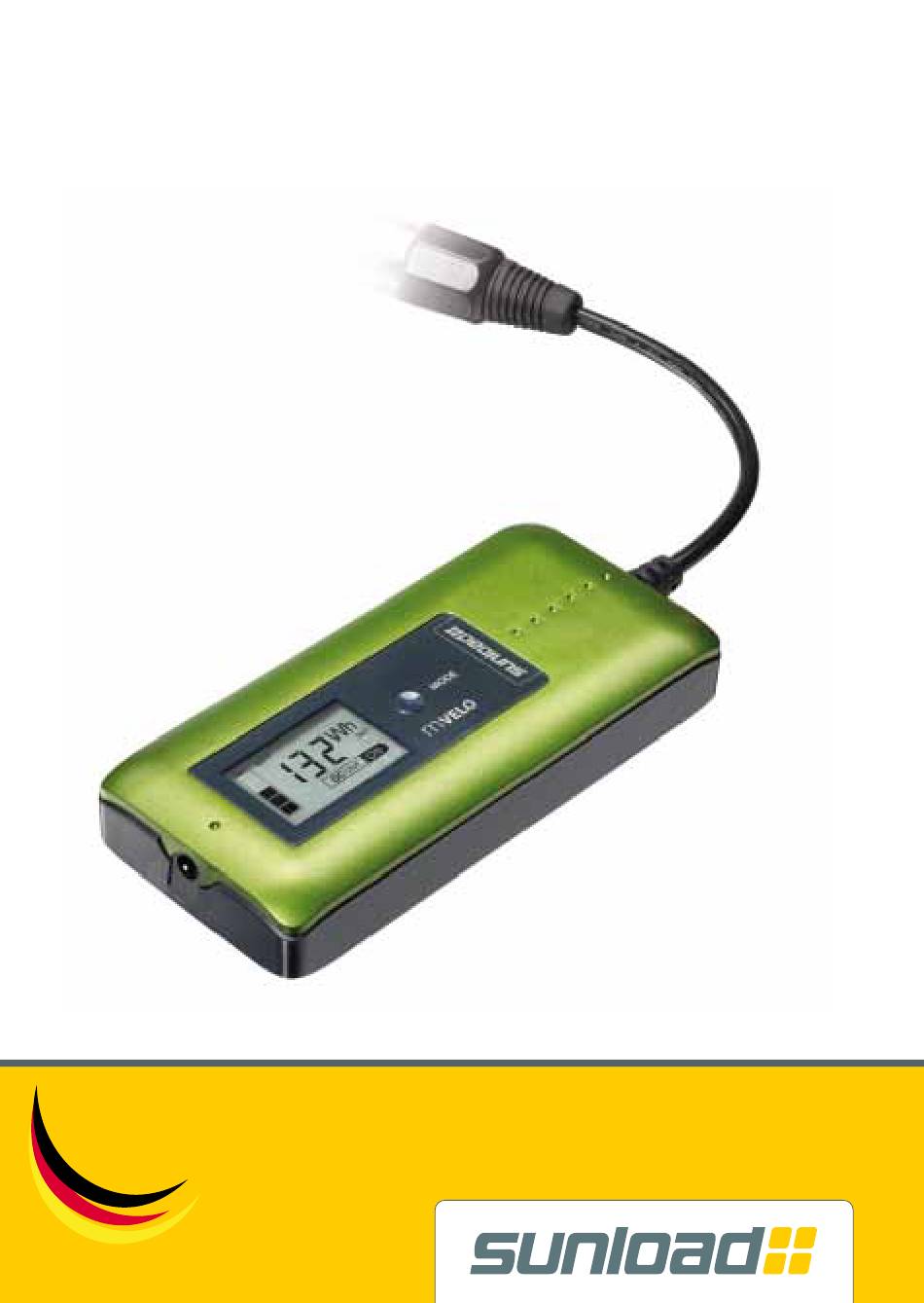

- Page 1 Pedelec/e-Bike Charger mVELO Manual and warranty. Made in Germany...
- Page 2 European Union. The CE sign is the manufacture’s declaration that the product meets the applicable EU directives and thus may be safely operated. In addition, the SUNLOAD has the compliance with CE regulations confirmed by an independent institute.
- Page 3 Dear Customer! With your new Pedelec Charger mVELO you will experience a new dimension of independence. Charge comfortably and safely the Li-Ion battery of your e-Bike or LEV (Light Electric Vehicle, e.g. even pedelec, e-scooter, e-wheelchair,...) from the sun, car battery or main and stay mobile! Let the sun work for you.
-
Page 4: Table Of Contents
The SUNLOAD energy management ..............16 Technical Data ....................16 Trouble shooting ..................... 17 Warranty ......................17 Declaration of Conformity ................18 Cleaning ......................19 Disposal ......................19 SUNLOAD customer service - What can we do for you? ........19... -
Page 5: About This Manual
In order to avoid any risk or injuries make sure to operate mVELO only as described in this manual. Please keep this manual for reading it from time to time. When passing on the device, make sure to hand over this manual as well. -
Page 6: Safety Advice
Protect the device from getting wet (e.g. in case of rain) and direct sunlight! When transporting your mVELO in a bag, keep out any beverages or other liquids, to prevent the electronic components from being damaged. -
Page 7: Scope Of Supply And Optional Accessories
Operating manual Recommended optional accessories (www.sunload-shop.com) SUNLOAD foldable solar panel 30 Wp (0.9 kg) SUNLOAD foldable solar panel 62 Wp (1.4 kg) Solar modules 25 - 100 Wp (Uoc max. 30 V) Power supply 100 V - 240 V AC to 24 V / 2.7 A DC... -
Page 8: Which Solar Panel Fits To Mvelo
Be careful when using connector cables from other manufacturers! The plugs may have the inverse polarity! Double check it with the polarity symbol at the mVELO label. The acceptable DC input voltage of the mVELO is limited to 30 V. -
Page 9: How To Put The Device Into Operation
How to put the device into operation Controls You may control the device with a push button. Display Push button Switch between Numeric display/ charge level display modes Push button functions Push and release Switch between display modes (see also “Display”) Press and hold for „Wh “... -
Page 10: Electrical Connections
Electrical connections Battery connector for connection to Li-Ion batteries. DC-input socket (5,5x2,1mm) to connect solar panels,12 V-car batteries (by adapter cable) or a power supply (100 V - 240 V). Input: 10.5 V - 30 V DC, max. 2.5 A... -
Page 11: Display
You may, for instance, assess the charging behavior and position the solar panel perfectly with regard to sunlight. You can use mVELO as a measuring device (see "How to check the battery status"). The accuracy is +/- 2%. Within the menu you may switch between display modes by pressing and releasing the push button. -
Page 12: Usage
Usage Do not leave the mVELO with the battery in the car or in the sun, because the acceptable ambient temperature can be exceeded. Do not use the mVELO and the battery by strong variations of temperature and air humidity to prevent the appearance of condensation on the surface of the devices. -
Page 13: Input: Charge With A 12 V Car Adapter (Cla)
Charging from 24 V board voltage is possible in principle, but there is no protection from deep discharging of 24V car battery. Do not use mVELO and pedelec battery at high temperatures and strong sunshine in the car, because high temperatures can damage these devices. -
Page 14: How To Check The Battery Status
Please, follow the manufacturer instructions of your pedelec battery, especially the temperature and storage conditions. Please connect your output plug of mVELO with the input of the pedelec battery for charging first before plug in the current source. Charge the battery till the procedure is completed (charging power = „0“... -
Page 15: Batteries Compatibility
So even plugs that looks like to be compatible with sockets, might be incompatible. A damage of the mVELO, your battery or other devices might happen! Please ask your dealer to make sure, that the mVELO is suitable for your battery type. Any usage with other batteries is permitted. -
Page 16: The Sunload Energy Management
The MPP method makes possible that a solar panel has always the maximum power more independent from the external conditions. On the other hand the consumption of energy of the mVELO is optimized to spare the resources. Technical Data Connections... -
Page 17: Trouble Shooting
Housing or cables are damaged - mVELO should not be put into operation. Contact your dealer or our customer service. mVELO got wet - Allow all parts to dry under ambient conditions for two days. You should take the mVELO to your dealer to check the functionality. -
Page 18: Declaration Of Conformity
Declaration of Conformity... -
Page 19: Cleaning
SUNLOAD customer service - What can we do for you? Please read our frequently asked questions (FAQ) in the support section of our homepage (www.sunload.com). For further questions please email us to support@sunload.de or call the customer service phone + 49 30 74304870. - Page 20 SUNLOAD Mobile Solutions UG Wernigeroder Str. 25 10589 Berlin • Germany +49 30 7430487-0 +49 30 7430487-19 E-mail info@sunload.de www.sunload.com © April 2014, SUNLOAD Mobile Solutions UG Berlin / Germany. All rights reserved. Subject to change without prior notice and errors expected.
