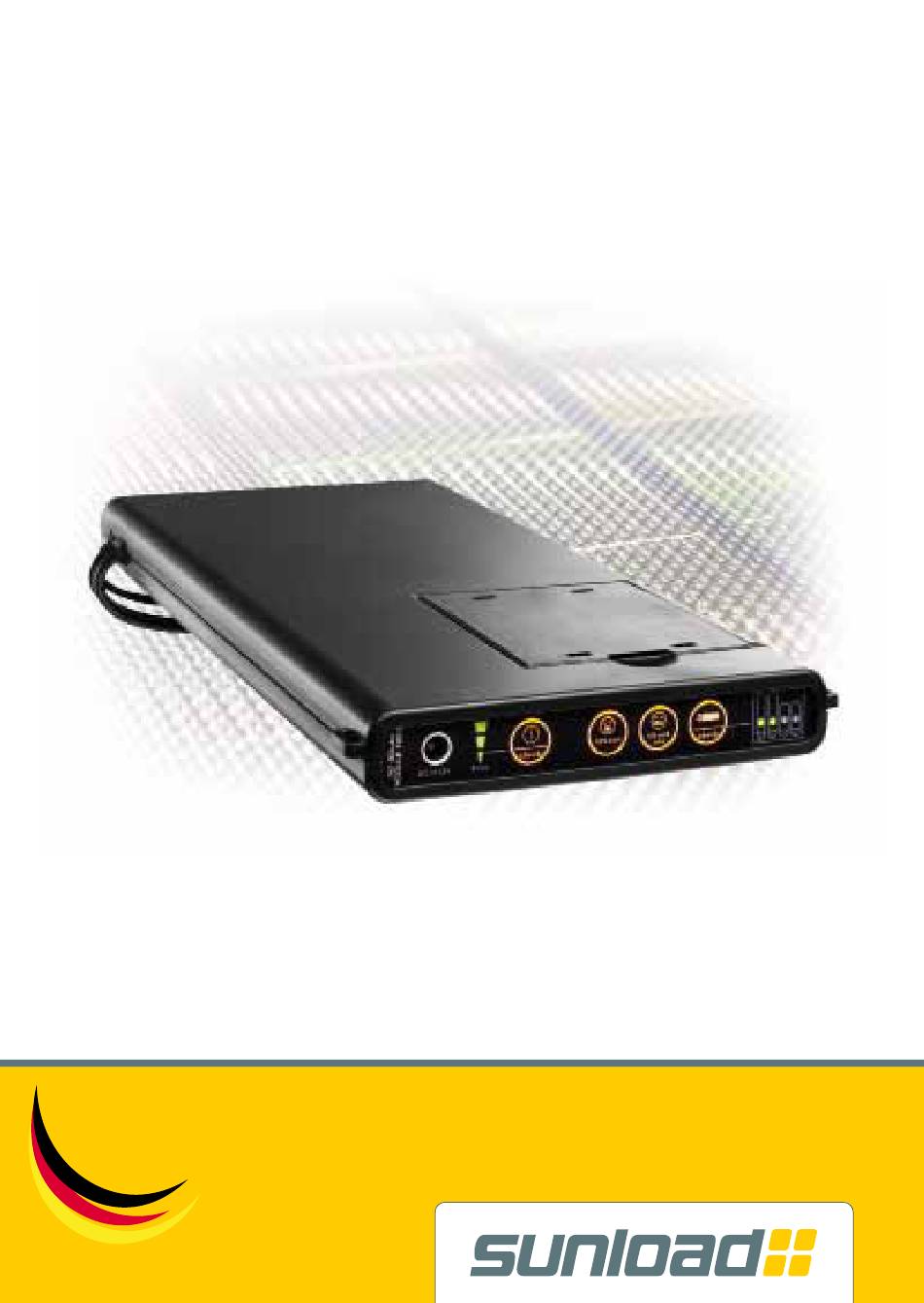

MultECon Charger M60
Manual and warranty.
Made in
Germany
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M60 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunload M60

Summary of Contents for Sunload M60

  • Page 1 MultECon Charger M60 Manual and warranty. Made in Germany...
  • Page 2 European Union. The CE sign is the manufacture’s declaration that the product meets the applicable EU directives and thus may be safely operated. In addition, the SUNLOAD has the compliance with CE regulations confirmed by an independent institute.
  • Page 3 Also charge standard NiMH batteries (typ AA and AAA) in the integrated accu box. Moreover your MultECon Charger M60 will take you to the age of solar power generation. In combination with a SUNLOAD solar panel you will soon gene- rate your own solar power (see optional accessories).

  • Page 4: Table Of Contents

    How to charge your M60 from wall socket ........... 13 How to charge your M60 with solar power .......... 14 How to charge your M60 with a 12 V car battery ........15 How to charge mobile devices with M60 ..........16 How to charge a notebook and other loads with a 12V car adapter ..

  • Page 5: About This Manual

    In order to avoid any risk or injuries make sure to operate M60 only as described in this manual. Please keep this manual for reading it from time to time. When passing on the device, make sure to hand over this manual as well.

  • Page 6: Safety Advice

    Information about air transport The M60 is a subject to the applicable air transport legislation and the regulations of each airline with regard to electronic equipment and must be switched off in aircraft!

  • Page 7: The Internal Battery

    The internal battery is cadmium free. Do not use or store the M60 in an incorrect way or open the housing. Otherwise your limited warranty will become void. Please note the recommendations about disposal of the internal...

  • Page 8: Scope Of Supply And Optional Accessories

    Operating manual Recommended optional accessories (www.sunload-shop.com) SUNLOAD solar panel 30 Wp oder 62 Wp, flexible and foldable 12 V-car adapters for notebooks Special solutions for instance for expeditions on demand For more information about connectable mobile equipment and the required adapter plugs, please go to our website or contact our customer service (support@sunload.de).

  • Page 9: Which Solar Panel Fits To M60

    Duration of a charging process in practice The nominal capacity of M60 is equate to standard notebooks. When using a SUNLOAD solar panel 62 Wp (flexible and foldable) for a complete charging you need at least 3h provided that the sky is clear and the panel is orientated to the sun.

  • Page 10: How To Put Device Into Operation

    How to put device into operation Controls Input Main button Button for USB Indicator DC IN output accu box only for power USB OUT adapter by wall socket or 12V-car Indicator Button for Button for internal battery 12V-car accu box Accu CHECK output...
  • Page 11 Indicator internal battery 0 - 3 segments Indicates the battery charge level if the M60 is switched on until energy saving mode starts. Flashing segments Energy will be stored into the internal battery.

  • Page 12: Elektrische Anschlüsse

    Electrical connectors Solar IN connection port for solar panels with an adapter cable Input port Accu-box Output port Output port DC IN for charging USB OUT 12V OUT only for power NiMH-accus cigarette light adapter or Type 2x AA, 2x AAA adapter (CLA) 12V-car...

  • Page 13: Usage

    Usage It is only allowed to use the M60 within a temperature range of 0°C to 50°C. Out of this range the M60 switches off automatically. How to charge your M60 from wall socket You may use the included power adapter to charge the M60 device on the 100V - 240 V mains.

  • Page 14: How To Charge Your M60 With Solar Power

    This results in an average additional solar yield of up to 20 percent as compared with systems without MPP-Tracking. When connecting make sure that polarity is correct if the panel is not a SUNLOAD product. The voltage reversal can damage your device.

  • Page 15: How To Charge Your M60 With A 12 V Car Battery

    25 % How to charge your M60 with a 12 V car battery You may use the included 12V car adapter cable to charge the M60 device by a 12V car battery. For charging by a 12V car battery only use the included 12V car adapter cable. Otherwise there may be safety risks or the M60 device may be damaged.

  • Page 16: How To Charge Mobile Devices With M60

    M60 will shut down immediately for safety reasons without giving any warning. The USB port of the M60 delivers a standardized 5 V charge at a max. of 1 A. The M60 does not support data exchange. If your device requires what is referred to as a ‘handshake’...

  • Page 17: How To Charge A Notebook And Other Loads With A 12V Car Adapter

    If several devices are connected to the M60, amounting to a continuous current in excess of 6 A, the M60 will emit a continuous tone. Disconnect one or more of the devices to resolve the overload. Otherwise the device may shut down for safety reasons.

  • Page 18: How To Charge Nimh Batteries (Aa, Aaa) In The Accu Box

    How to charge NiMH batteries (AA, AAA) in the accu box Standard NiMH AA and AAA accus can be inserted into the accu box of the M60. Each charging unit can then be individually controlled and monitored. Up to four accus can be charged simultaneously regardless of the aforemen- tioned type of accu, its power status or capacity.
  • Page 19 If the accu box is opened while accus are being charged, the charging process is interrupted. To finish the charging process wake up the M60 if necessary from the energy saving mode by press and release the main button ON.
  • Page 20 Description accu box indicator A green flashing light indicates that your accus will be charged. A continuous green light means that the relevant accu is fully charged. A continuous red light (it may take a few minutes for the charge regulator to detect a problem) means that the accu is faulty (it can no longer be charged) or that a dry-cell battery has been inserted (this is not permitted).

  • Page 21: The Sunload Energy Management

    20s. Only the flashing light of the main button indicates that the M60 is switched on. In order to effectively prevent the battery from being over-discharged make sure that the M60 device is always switched off (slide switch to ), when not in use!

  • Page 22: Technical Data

    (intelligent managed) battery at room temperature reaches a charge level of 80% after 2 to 3 hours, approximately. Beside a temperature range of 0°C and 50°C the M60 shut down automatically in order to prevent the battery from being damaged.
  • Page 23 Recommended temperature conditions: Use M60 in the temperature range from 0°C up to 35°C. Store M60 in the temperature range from -20°C up to 20°C. Very low or very high temperature can shorten the lifetime of the internal battery or damage the M60. Do not leave M60 in the car or in the sun, because the acceptable temperature can be exceeded.

  • Page 24: Trouble Shooting

    Send to technical support. damaged. The M60 and electronic Remove the internal Li-Ion battery components are wet or and the accus out of the M60 something has been spilled and allow all parts to dry under on them. ambient conditions for two days.
  • Page 25 CHECK button. Certain devices require a USB The M60 delivers 5V via the USB 3.1) USB devices con- protocol (a ‘handshake’) to leads, but does not deliver a nected to the M60 are not commence charging or to communication protocol.
  • Page 26 Recharge the internal battery. another beep. Two beeps, followed by a Temperature warning! The Ensure that the M60 is operating pause followed by another temperature of the device within the permitted temperature two beeps. is exceeding 45 °C or has range.

  • Page 27: Cleaning

    Cleaning Since your M60 device must not get in touch with moisture, please wipe it with a dry soft cloth, when required. Disposal Please dispose of the package properly after separating the materials. The symbol of crossed out waste bin indicates that the product is a subject to the European directive 2002 / 96/EC.

  • Page 28: Declaration Of Conformity

    Declaration of conformity...

  • Page 29: Warranty

    Warranty This M60 device was made in Germany, using the latest state-of-the art manufacturing methods. We guarantee its perfect condition. warranty period of 2 years Statutory warranty regulations shall apply. Within the from the data of purchase we repair all material or manufacturing failures free In case of any claim, please contact our customer service first by phone or of charge.

  • Page 30: How To Replace The Internal Battery

    Before replacing the internal battery shut off the M60 and disconnect all devices. Than you only have to remove two screws from battery cover on the backside of the M60. Open the cover and remove the internal battery by unfastening the plug. To install the new battery proceed in inverse order.

  • Page 31: Sunload Customer Service - What Can We Do For You

    SUNLOAD customer service - What can we do for you? Please read our frequently asked questions (FAQ) in the support section of our homepage (www.sunload.com). In the download section you may find lists of connectable devices. For further questions please email us to...
  • Page 32 SUNLOAD Mobile Solutions UG Wernigeroder Str. 25 10589 Berlin • Germany Telefon +49 30 7430487-0 +49 30 7430487-19 E-mail info@sunload.de www.sunload.com © October 2013, Sunload Mobile Solutions UG Berlin / Germany. All rights reserved. Subject to change without prior notice and errors expected.
