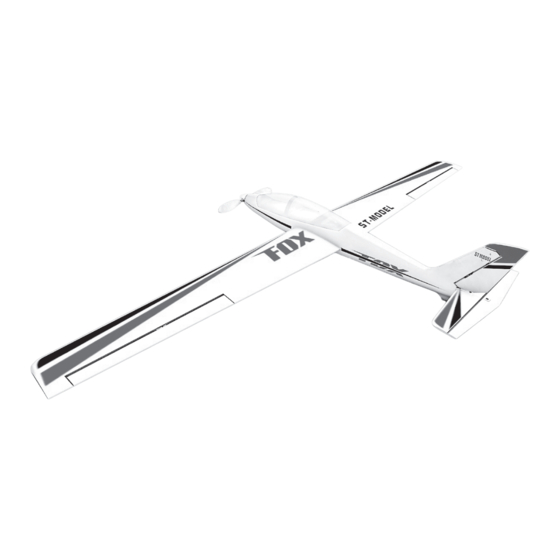

st model Fox Product Manual

Electric r/c model plane
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRODUCT MANUAL
ELECTRIC R/C MODEL PLANE
This electric R/C model plane is not a toy.
Assemble the plane according to the instructuons,Do not
alter or modify the model,If you make any modifications,
you will void your warranty.
Children under 12 years old must use it accompanied by
an aduit.
Test the operation of the model before before each flight
to insurethat all equipment is operating properly,and that
the model remainsstructurally sound.
Fly only on calm days(with wind speeds less than 6 mph)
and in large open areas free of trees,people,building or
any other obsracles.
REMEMBER:Take your time and follow the instructions to
end up with a well-built model that is durable and easy to fly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fox and is the answer not in the manual?

Questions and answers

Related Manuals for st model Fox

Summary of Contents for st model Fox

  • Page 1 PRODUCT MANUAL ELECTRIC R/C MODEL PLANE This electric R/C model plane is not a toy. Assemble the plane according to the instructuons,Do not alter or modify the model,If you make any modifications, you will void your warranty. Children under 12 years old must use it accompanied by an aduit.

  • Page 2: Specifications

    SPECIFICATIONS Length：880mm Wing span：1800mm Wing area：23dm Flying weight：685g Wing load：29.7g/dm Power system：Brushless motor ,1000mAh 11.1V Li-Po battery Propeller：10×6 Folding propeller Radio required：4CH transmitter & receiver,4 micro servos GLOSSARY Aileron：Controls roll（right/left）； Elevator：Controls pitch（up/down）； Rudder：Controls yaw（right/left direction）； Receiver ( RX)：provides input to the control surfaces and ESC ； Power system-ESC(Electronic Speed control)：Controls the speed of motor；...

  • Page 3: Contents Of Kit

    4、Switch the transmitter off and stand by for later use. (PIC.02) (PIC.03) (PIC.04) CHARGE THE BATTERY FOX is equipped with a 2cell-7.4V Li-Po battery pack (PIC.05) (PIC.05) . The Li-Po battery has two connectors. One is for Discharging cell balance charging and the other is for discharging.

  • Page 4: Assemble The Airplane

    (2)、Before charging, disconnect the battery with any power. After each flight , removethe pack from the airplane and allow it to cool completely before recharging. (3)、During the charging process, keep the charger or battery pack in a normal temperature area and away from source of ignition. Do not cover the charger or battery pack with carpet, clothe or anything else.
  • Page 5 (PIC.12) (PIC.13) (PIC.14) (PIC.15) (PIC.16) (PIC.17) , open the canopy hatch and 6、Before fix the wings and fuselage in place (PIC.17) push the two aileron servo wires through the fuselage (PIC.18) .Take the into the canopy as picture shows (PIC.18) aileron servo wires and connect to the servo extension .

  • Page 6: Install The Battery

    2、According to the following instructions, set up the power system(ESC) propeller function, meanwhile the ESC brake function is optional to customers. Note: The FOX RTF version includes a power system (ESC) with a brake function, which can be programmed to make the propeller stop rotating then folding, reducing wind resistance during glide when the throttle is cut off for landing.
  • Page 7 Do it as the step (2) below if you want to get the brake on. ④If there are two beeps, the propeller brake is on and the propeller will come to a stop quickly when the throttle stick is in the off or down position, reducing drag. Do it as the step (3) below if you switch to brake off.
  • Page 8 NOTE: If the movement of aileron works in opposite position, please check the aileron reverse switch on the transmitter and make necessary alignment. 、Test the rudder: (1)、Move the rudder control stick to the left, the rudder turns to the left (PIC.36) (2)、Move the rudder control stick to the right, the rudder turns to the right (PIC.37)
  • Page 9 PRECAUTIONS BEFORE FLIGHT 1、The FOX should be flown only when the wind speed is 6 mph or less. If the wind is calm or very light, the FOX will be docile and easy to control. If you have few flight, fly only when the wind speed is 1 mph or less.
  • Page 10 6、 The FOX is for pilots who graduate to a more complex airplane. Have an experienced pilots instructed how to test and fly for pilots without any experience. FLIGHT The FOX RTF version includes the “Auto Cut-Off” feature of the speed control provides an extra degree of insurance when the battery runs low.

  • Page 11: After The Flight

    3、To land the FOX, fly down wind, past the landing area. Gently turn into the wind and reduce the speed so that the plane starts to come down. Adjust the throttle when needed to reach the landing area, but not fly past it.
