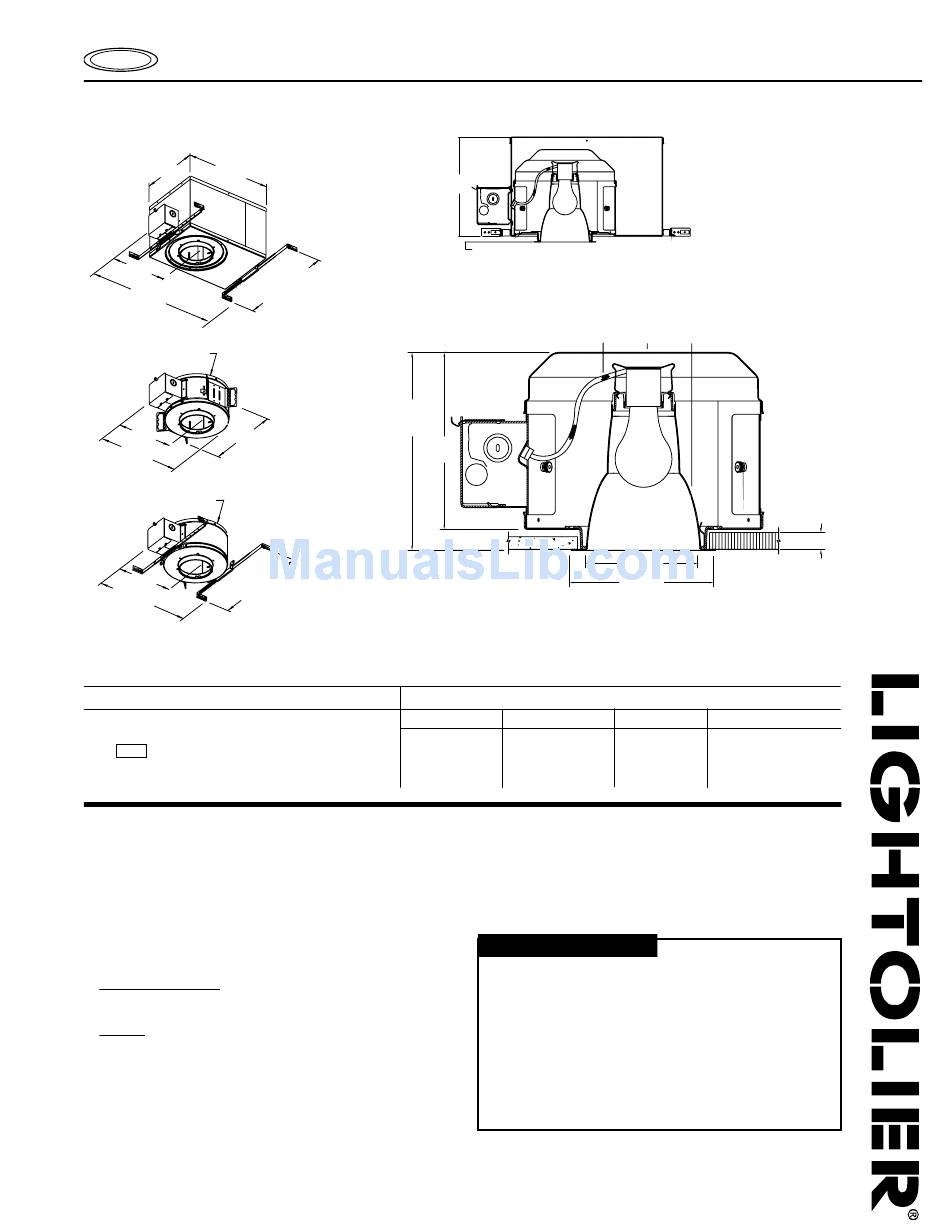

Lightolier Calculite C4AD Specification

Calculite
Page 1 of 2
1 2
14 1/4"
10"
6 7
8 1/2"
20 1/4"
O.A.
9 1/2" Dia.
12 1/2"
7 3/4"
12 3/8"
O.A.
9 1/2" Dia.
13 3/4" to 24"
7 3/4"
Adjustment
14 3/8"
(mounting bars
O.A.
included)
Ceiling Cutout: 5 1/16" (129 mm) Dia.
Reflector Trim
C4AD CLW Specular Clear, White Flange
C4AD CLP Specular Clear, Polished Flange
C4AD Add suffix. See options for other finishes.
Features
1. Reflector: 16 ga. Alzak ® aluminum, 50° visual cutoff to lamp and lamp
image, medium spread distribution. Available with painted white or polished
flange. Interchangeable with other Evolution 4 1/2" line voltage trims.
2. Socket Harness: Spring tension clips snap into die-cast aluminum top at
pre-focused positions insuring correct optical alignment. Medium base por-
celain socket with nickel plated screw shell, No.18 SF-1, leads to keyed
plug-in quick connector for power connection to junction box.
3. Frame-In Kit: Compatible Frame-In Kits are listed above. See separate
Frame-In Kit specification sheets for details.
Non-IC and Non-IC AirSeal ® - Insulation must be kept 3" away from fixture
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal ® - Fixture may be in direct contact with insulation.

Options and Accessories

Reflector Finishes 1
Comfort Clear Diffuse CCD
Specular Gold GD
White WH
1 Specify desired flange
W White, P Polished
Evolution Incandescent Open Downlight
®
3
9 1/4"
C4AIC
8
(IC AirSeal®)
13 3/4" to 24"
Adjustment
(mounting bars
included)
C4120
(Non-IC)
7 3/4" Min.*
8 1/4" Max.
7"
C4A120
(Non-IC AirSeal®)
* 7 3/4" Min. is for up to 3/4" thick ceiling
Frame-In Kit
Non-IC
C4120
100W A19, MB19
100W BT15
4 1/2" Aperture A19 / MB19 / BT15 Reflector Trim
4 5
1/2" to 1" Thk. Ceiling
C4ADCLW / C4AIC
2
4 1/2" Dia.
5 3/4" Dia.
Non-IC AirSeal ® IC-AirSeal ®
C4A120 C4AIC
100W A19, MB19 60W MB19
100W BT15 75W A19,
60W BT15
Labels
UL Listed (suitable for damp locations), I.B.E.W.
Alzak ® is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Thomas Group LLC (Lightolier Division) • C0711
C4AD
3 1
1 1/4" Max Ceiling Thk.
C4ADCLW/C4120 or
C4ADCLW/C4A120
Non-IC Remodeler
C4120RM
100W A19, MB19
100W BT15
Type:
www.lightolier.com
