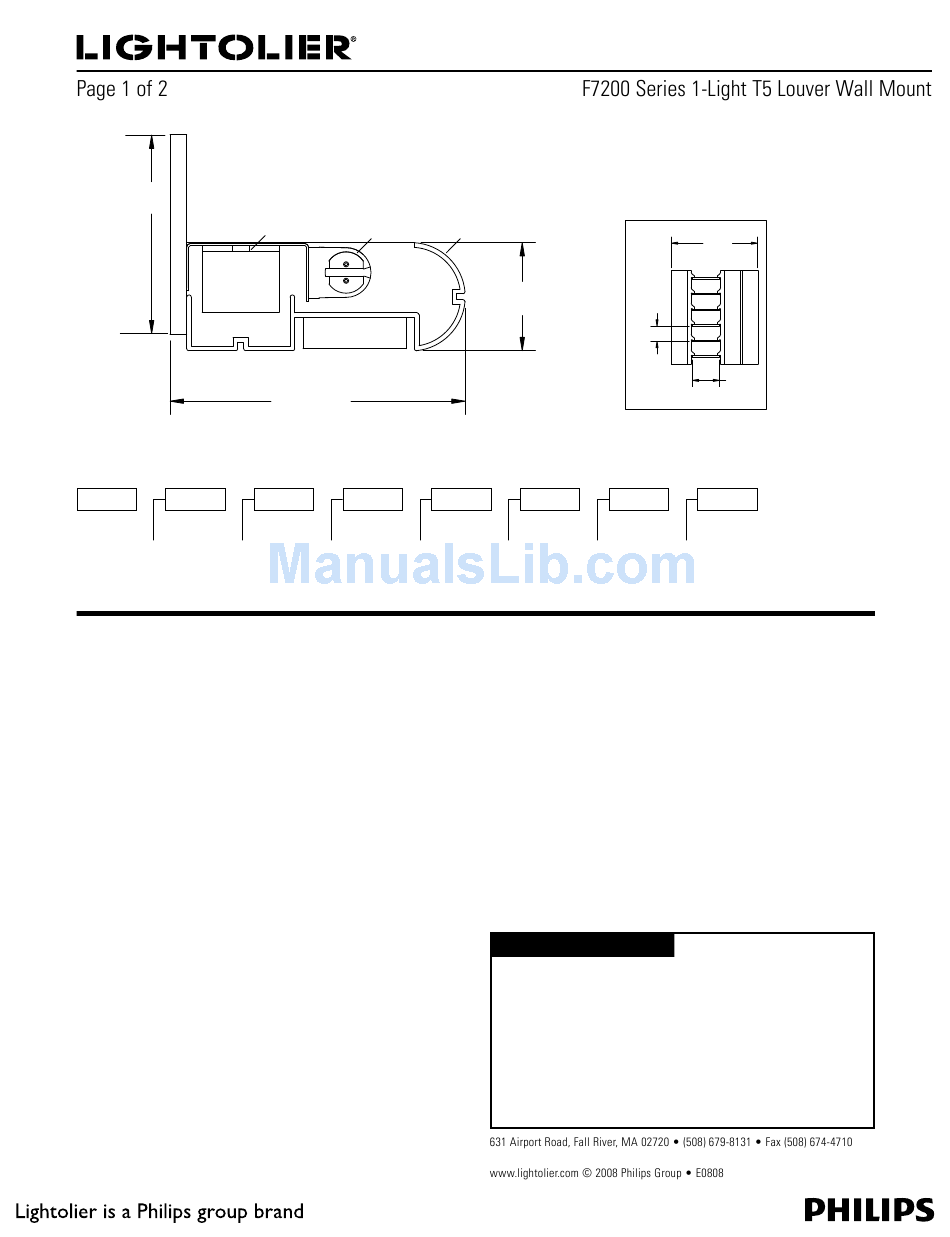

Lightolier F7000-9 Specification Sheet

3.25"
(8.26cm)
Ordering Information
Family Series
FW7 2
2 = Oval 4 = Louver
Complete Ordering Instructions below.
Features for Wall Modules
1. Housing: Single piece of high purity extruded aluminum, a portion from recy-
cled material.
2. Housing End: Die-cast aluminum, welded in place.
3. End Cap: Die-cast aluminum. Encloses the end of the run.
4. Lamps: F28T5 or F54T5HO as specified. By others. Installed from the ceiling
side of the luminaire.
5. Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound
rating specifications. Low THD.
6. Shielding: Integral, regressed flat louver blades punched and formed from
fixture housing, finished to match, no light leaks. Blades are .56" (1.42cm) high
on .75" (1.91cm) centers.
Electrical
Connections: Pre-wired with 18 gauge wires and polarized cannon plug connec-
tors for simultaneous mechanical/electrical connection.
Emergency Battery Pack: 90 minute operation,700 lumens for 54W and 520
lumens for 28W.
Dimming: Advance Mark X standard (no additional wires required); use compati-
ble dimmer. Dimming ballasts using additional control wires (eg Lutron Hi-Lume or
ECO-10, Osram) can be used; consult factory and use X4 or X5 power feeds with
additional leads, as appropriate. Ballast not to exceed 1.25" (3.18cm) wide by 1.20"
(3.05cm) high.
iGEN: F7000 accepts iGEN (DALI) with supplemental 2-wire control technology.
Use with X5 power feed.
Power Tray: Code-gauge, die-formed steel, pre-paint white enamel finish;
secured by quarter-turn fasteners for easy access to wiring. Holds ballasts, sock-
ets, and wiring. Accepts ballasts up to 1.25" (3.18cm) wide by 1.20" (3.05cm) high.
Factory installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
5
4
4.44" (11.28cm)
Type Lamps
4 1
1 = 1 Lamp AL = Aluminum
WH = White
Lighting Systems
1
1.63"
(4.14cm)
Color Wattage Voltage
1 = 28W 1 = 120v
2 = 54W 2 = 277v
3 = 28W Dimming
4 = 28W EM
5 = 54W Dimming
6 = 54W EM
Finish
Powder-coated, baked enamel, white or aluminum, as specified.
Mounting for Wall Modules
Each module includes two wall-mounting brackets. Bracket hole pattern accom-
modates junction box (single gang box rotated 90 degrees) or other appropriate
mounting method using customer supplied fasteners.
Labels
UL, cUL and I.B.E.W.
Ordering Instructions for Wall Modules
Individual Fixtures:
1. Order one MODULE.
2. Order one END SET.
Continuous Rows:
1. Order the appropriate number of MODULES for the complete run.
2. Order one END SET.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
F7000-9
3.698"
(9.39cm)
.750"
(1.91cm)
1.304"
(3.31cm)
6.
Shielding Pattern
Length
4 = 4' (121.92cm)
8 = 8' (243.84cm)
Type:
