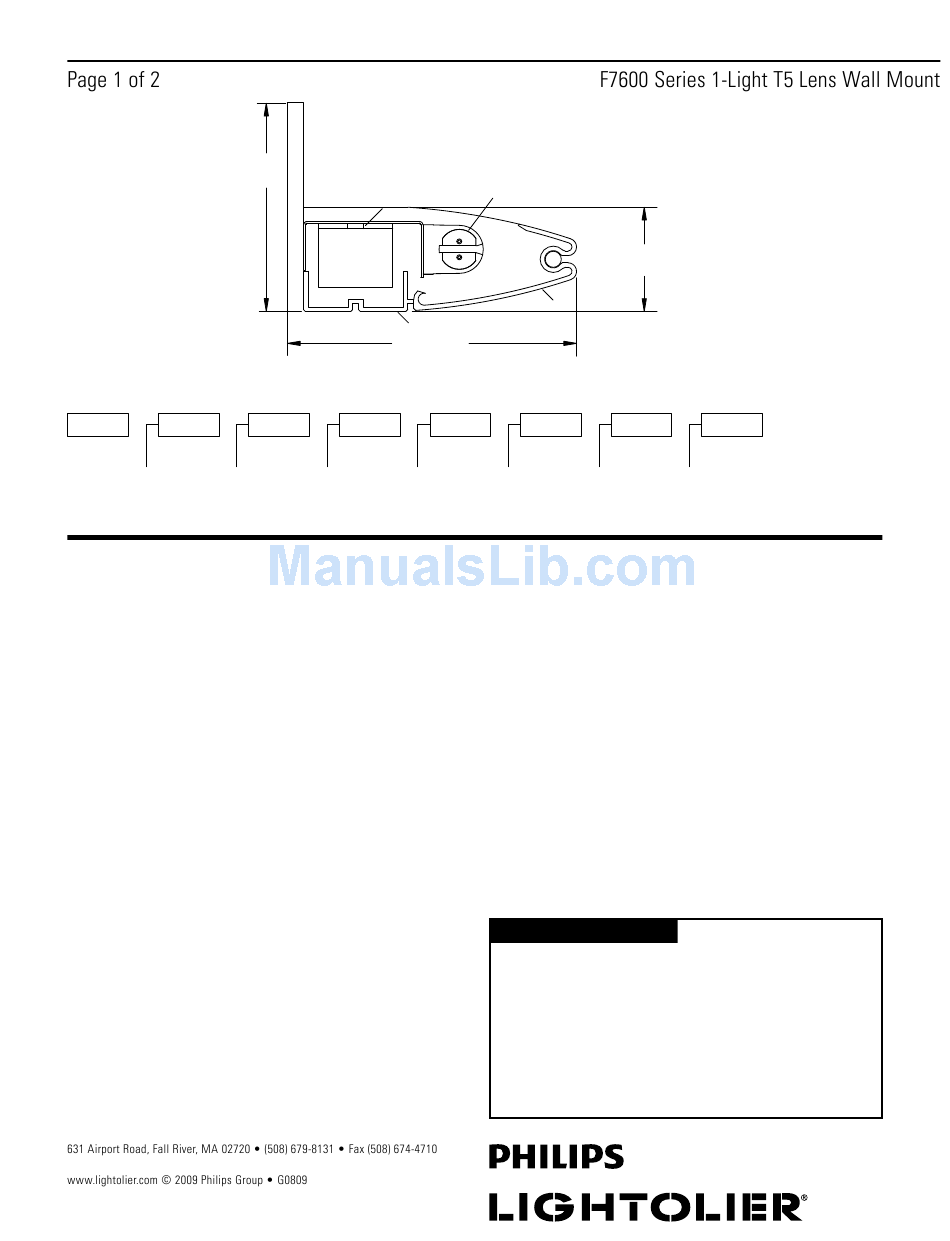

Lightolier F7000-26 Specification

(8.26cm)
Ordering Information
Family Series
FW7 6
6 = Lens
Complete Ordering Instructions below.
Features
1. Housing: Single piece of high purity extruded aluminum, a portion from
recycled material.
2. Housing End: Die-cast aluminum, welded in place.
3. End Cap: Die-cast aluminum. Encloses the end of the run.
4. Lamps: F28T5 or F54T5HO as specified. By others. Installed from the
ceiling side of the luminaire.
5. Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound
rating specifications. Low THD.
6. Shielding: Extruded acrylic with suspended bead texture; inset metal rod.
Electrical
Connections: Pre-wired with 18 gauge wires and polarized cannon plug con-
nectors for simultaneous mechanical/electrical connection.
Emergency Battery Pack: 90 minute operation, 700 lumens for 54W and 520
lumens for 28W.
Dimming: Advance Mark X standard for 54W lamps (no additional wires required)
or ULT Super Dim standard for 28W lamps (5 wires required in end set); use
compatible dimmer.. Dimming ballasts using additional control wires (e.g. Lutron
Hi-Lume or ECO-10, Osram) can be used; consult factory and use X4 or X5 power
feeds with additional leads, as appropriate. Ballast not to exceed 1.25" (3.18cm)
wide by 1.20" (3.05cm) high.
iGEN: F7000 accepts iGEN (DALI) with supplemental 2-wire control technology.
Use with X5 power feed.
Power Tray: Code-gauge, die-formed steel, pre-paint white enamel finish;
secured by quarter-turn fasteners for easy access to wiring. Holds ballasts, sock-
ets, and wiring. Accepts ballasts up to 1.25" (3.18cm) wide by 1.20" (3.05cm) high.
Factory installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
Finish
Powder-coated, baked enamel, white or aluminum, as specified.
We reserve the right to change details of design, materials and finish.
3.25"
5
1
4.51" (11.46cm)
Type Lamps
5 1
5 = Extruded 1 = 1 Lamp
Lens
Lighting Systems
4
6
Color Wattage
AL = Aluminum 1 = 28W
WH = White 2 = 54W
3 = 28W Dimming
4 = 28W EM
5 = 54W Dimming
6 = 54W EM
Mounting
Each module includes two wall-mounting brackets. Bracket hole pattern accom-
modates junction box (single gang box rotated 90 degrees) or other appropriate
mounting method using customer supplied fasteners.
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order one MODULE.
2. Order one END SET.
Continuous Rows:
1. Order the appropriate number of MODULES for the complete run.
2. Order one END SET.
Finish
Powder coated White or Aluminum baked enamel.
Custom colors are available, consult factory.
Labels
UL , cUL and I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
F7000-26
1.63"
(4.14cm)
Voltage Length
1 = 120v 4 = 4' (121.92cm)
2 = 277v 8 = 8' (243.84cm)
Type:
