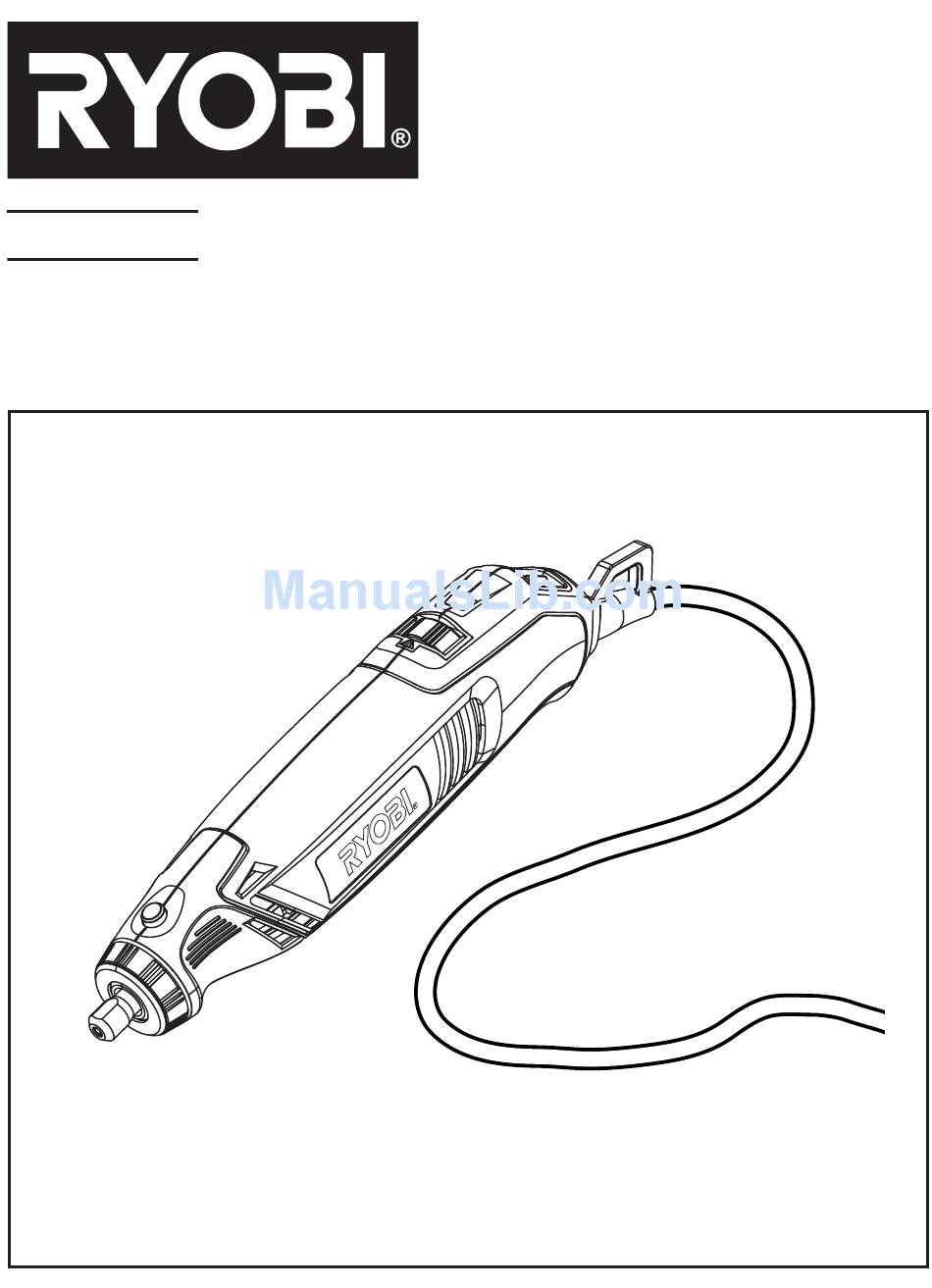

  • Page 1 EHT150RG ROTARY TOOL OWNER’S OPERATING MANUAL...
  • Page 2 DESCRIPTION 1. Collet nut 20. Less speed 2. Spindle lock 21. More speed 3. Speed control dial 22. Pencil holding method 4. On/off switch 23. Telescoping tool hanger 5. Tool loop 24. Flex shaft 6. Collet 25. Clamp-on base 7. Wrench 26.
  • Page 3 Fig. 2 Fig. 3 Fig. 4 Fig. 6 Fig. 5 Fig. 7 Fig. 8 Fig. 9 Fig. 10...
  • Page 4 Fig. 11 Fig. 12 Fig. 13 Fig. 14...
  • Page 5 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.

  • Page 6: General Power Tool Safety Warnings

    operating power tools may result in serious GENERAL POWER TOOL SAFETY WARNINGS personal injury. b. Use personal protective equipment. Always WARNING wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or Read all safety warnings and all instructions. Failure hearing protection used for appropriate conditions to follow the warnings and instructions may result in electric will reduce personal injuries.

  • Page 7: Special Safety Rules

    g. Use the power tool, accessories and tool bits with a rated residual current of 30 mA or less. etc., in accordance with these instructions and in the manner intended for the particular type ADDITIONAL SAFETY INSTRUCTIONS FOR of power tool, taking into account the working YOUR MINI GRINDER conditions and the work to be performed.

  • Page 8: Double Insulation

     Keep bystanders a safe distance away from work Accessory may kickback over your hand. area. Anyone entering the work area must wear  Do not position your body in the area where power personal protective equipment. Fragments of tool will move if kickback occurs. Kickback will workpiece or of a broken accessory may fly away and propel the tool in the direction opposite to the wheel’s cause injury beyond the immediate area of operation.

  • Page 9: Operation

    NOTE: Servicing of a product with double insulation OPERATION requires extreme care and knowledge of the system and should be performed only by a qualifi ed service technician. WARNING For service, we suggest you return the product to your nearest authorized service center for repair. Always use Do not allow familiarity with products to make you original factory replacement parts when servicing.
  • Page 10  Insert the slot end of the provided wrench into the slot WARNING on top of the mandrel and unscrew. Always use the collet which matches the shank size  Remove mandrel screw and washer. of the accessory you plan to use. Never force a large ...

  • Page 11: Operating The Rotary Tool

    wood carving, and fragile model parts. To operate the rotary tool: Higher speeds are better for carving, cutting, and shaping  Secure all work in a vise or clamp to a workbench to wood. Hardwoods, metals, and glass require high speed prevent it from moving under the tool.

  • Page 12: Maintenance

     Move the tool continuously at a steady, consistent preventing further rotation. pace.  With the spindle lock engaged, use the collet wrench  Use just enough pressure to keep the tool from to loosen the collet nut, if necessary. chattering or bouncing.

  • Page 13: Power Supply Cord Replacement

    LUBRICATION All of the bearings in the product are lubricated with a suffi cient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further lubrication is required. POWER SUPPLY CORD REPLACEMENT If replacement of the power supply cord is necessary, this must be done by an authorized service center in order to avoid safety hazard.

  • Page 14: Speed Dial Settings

    SPEED DIAL SETTINGS Type of Hard Laminates, Aluminum, Shell/ Soft wood Steel Ceramic Glass accessory wood plastics brass, etc. stone Cut-off discs — — — — — — — Fiberglass cut- — — — — — — off wheel Sanding 3-MAX 3-MAX 4-MAX...
  • Page 15 ACCESSORY TABLE Figure Accessory Application Bringing shape back to parabolic shaped Silicon carbide dressing stone grinding attachments Felt polishing wheels (25.4 mm x 12.7 Polishing and buffi ng metals, stone, glass and ceramics Cutting and trimming metals, plastics and Fiberglass cut-off wheel (Ø 31.8 mm) ceramics Screw mandrel (Ø...
  • Page 16 Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster Road Doncaster, VIC 3108, Australia Techtronic Industries New Zealand Ltd. 18-26 Amelia Earhart Avenue Mangere, Auckland 2022, New Zealand 20140116...
