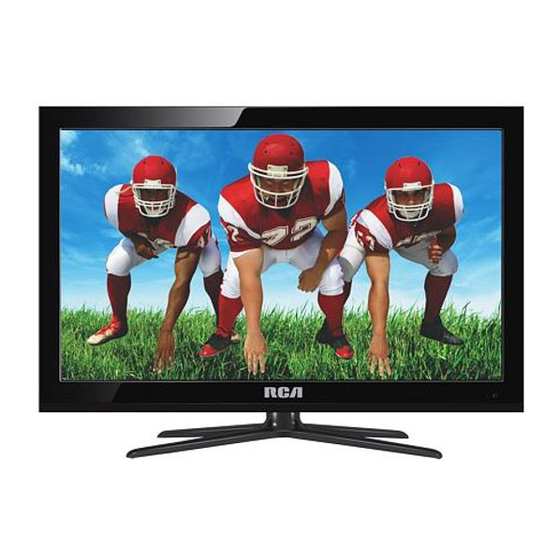

RCA RLD5515A Instruction Manual

RCA RLD5515A Instruction Manual

Led tv




Table of Contents

Summary of Contents for RCA RLD5515A

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and / or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.
  • Page 3 SAFETY INSTRUCTIONS This product is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the product. Read the following safety instructions before operating the display.
  • Page 4 • The wall socket should be installed near contact your dealer for repair. Continued the equipment and should be easily use of the product may cause fire or accessible. electric shock. • • Only the marked power source can be Do not install the product in an area with heavy dust or high humidity.
  • Page 5: Important Information

    IMPORTANT INFORMATION Television Antenna Connection Protection External Television Antenna Grounding If an outside antenna or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.
  • Page 6: Attaching Or Removing The Stand

    Attaching or Removing the Stand To attach the stand, place the display unit flat on a table. Afterwards match the 6 pins on the neck to the 6 pin (4x16mm)holes on the stand. - 5 -...
  • Page 8: Identifying Front And Rear Panel

    Identifying Front and Rear Panel Front View INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on. The light turns green when the TV is turned on. Because of the LED in the panel, the TV might take 10 – 12 seconds to power on.
  • Page 9: Side Control Buttons

    Side Control Buttons INPUT – This button switches between all the different sources of the TV. When the OSD is active, this button acts as the enter button and confirms the menu selection. MENU – This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will exit the OSD.
  • Page 12: Tv Remote Control

    TV Remote Control YPBPR - 11 -...
  • Page 13 For universal remotes, this TV follows NEC’s universal remote code. You need to find the actual code from your cable or satellite or universal remote provider. POWER – Turns the TV on or off. GUIDE – Opens the current digital channel information guide (antenna only). MUTE –...
  • Page 30: How Do I Clean The Tv

    How do I clean the TV ? IMPORTANT The power cable has to be removed from the socket before cleaning the TV. Do not use volatile solvent (alcohol, rosin, and toluene) to clean the TV. These types of chemicals might damage the housing and the LCD glass. Cleaning the bezel and remote control Use a 100% cotton cloth or micro-fiber cloth for cleaning.
  • Page 31: Troubleshooting

    Troubleshooting The following table contains the common problems and the solutions to these problems. Please check this list before you contact the technicians. Problems Solutions Connect power cord correctly. Turn on power. NO PICTURE Connect video cable correctly. Select the input signal source with proper cable connection with the source button.
  • Page 32 HDCP video device’s sound output to the TV’s VGA STEREO AUDIO INPUT. If your HDCP video device uses RCA AUDIO jacks, you’ll need to obtain a RCA audio converted into 3.5 mm mini-jack cable. CANNOT GET Make sure the TV is recognized as plug and play monitor. Try 1920X1080 ON PC updating your video card’s drivers as well.
  • Page 33 Problems Solutions SWITCHING A Different channels and inputs will sometimes have this effect CHANNEL OR because the channel signal’s own volume is already loud. SOURCE CHANGES There is no way remove this completely. The TV has an THE VOLUME AUTO VOLUME LEVEL function that can combat this type of effect.
  • Page 34 Specification Panel Specifications Aspect Ratio Widescreen 16:9 Pixel Pitch 0.36375 (H) x 0.36375 (V) mm per one triad Max. of Pixels (Resolution) HD (1366 x 768 pixels) ;FHD(1920x1080 pixels) Brightness 300 nits (Typical) Contrast 1000:1 (Typical) with Auto Contrast Enhancement Response Time 5 ms (gray to gray) Viewing Angle...
  • Page 35 (3) General Funtions Hybrid Tv Tuner NTSC / ATSC / QAM (Digital Cable Ready) Channel Auto Scan Sleep Timer (Minutes) Off / 5 / 10 / 15 / 30 / 60 / 90 / 120 / 180 / 240 Screen Size 55 inch Power requirement AC100-240V~ , 50/60Hz...
