Summary of Contents for RCA RLDED4350-UHD-B-SM

  • Page 1 RSAG2.025.****SS-1...

  • Page 2: Quick Start Guide

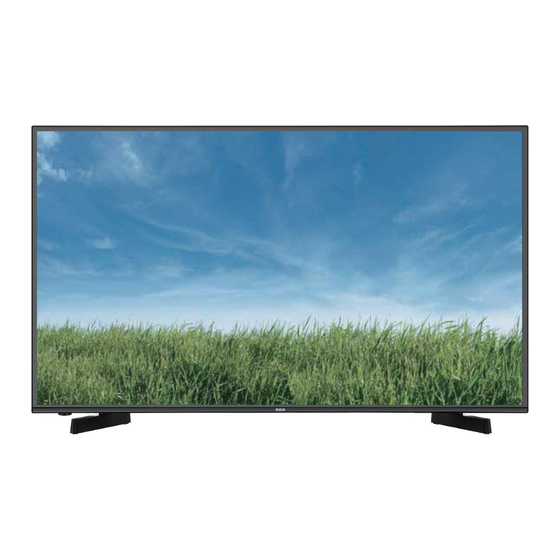

    Quick Start Guide Model: RLDED4350-UHD-B-SM Before using the TV, please read this guide thoroughly and retain it for future reference. For more detailed instructions, please see the Instruction Manual.
  • Page 3 Contents Packaged contents 2 Attach the TV stand or wall mount bracket 3 Buttons and Ports 5 Using your TV remote control 11 Power on the TV 13 Product specifications 16 Quick problem-solving tips 17 Certification and Compliance 18...

  • Page 4: Packaged Contents

    1. Packaged contents Your package in which you purchased your new TV contains the following items: 2 AAA batteries 2 legs that form the TV stand Quick Start Guide Instruction Manual 4 screws (ST4×16) Power Cord Remote Control IMPORTANT: To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box. ·...

  • Page 5: Attach The Tv Stand Or Wall Mount Bracket

    2. Attach the TV stand or wall mount bracket (not included) Attach the TV Stand (For steps to attach the wall mount see page 4) CAUTION: Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets. The LED display is very fragile and must be protected at all times when installing the legs that form the stand.
  • Page 6 Attach the Wall Mount Bracket (not included) Before you begin the third-party manufacturer instructions, be • To prevent internal damage to the TV and ensure it is mounted securely, be sure to use fixing screws (not sure to do the following things: provided) that are 9.5 - 11.5 mm in length when measured 1.

  • Page 7: Buttons And Ports

    3. Buttons and Ports TV Side View Back View of the TV CH + HDMI 3(4K@60Hz) Power Input HDMI 4(4K@60Hz) TV Bottom View DIGITAL AUDIO OUT MENU VOL + VOL - AV IN INPUT VIDEO CH - Power COMPONENT IN...
  • Page 8 Connect devices to your TV You have several options for connecting your TV to different devices. The method in which you connect will be based upon the type of cables you have and the available outputs on your device. Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
  • Page 9 TV label Port Cable External Equipment Brief Description Green Connect a component video cable (not provided) and left-right audio cables (not provided) from an Blue external AV device. COMPO- Using your remote, press the [INPUT] button and NENT IN select Component as the input source. DVD Player/Recorder One AV device can be connected to the TV using a White...
  • Page 10 TV label Port Cable External Equipment Brief Description Connect an HDMI cable (not provided) from a digi- tal sound bar to use Audio Return Channel (ARC) feature. By using this feature, you will also be able to con- HDMI2 /ARC trol the soundbar with your TV remote instead of Digital Sound Bar having to use multiple remotes for each device.
  • Page 11 Connecting a digital sound bar to use Audio Return Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, Channel (ARC) gateway, and DNS, so you don’t have to enter them manually. To connect a digital sound bar with an HDMI cable: Most home networks already have DHCP.
  • Page 12 NOTES • You must use the built-in Wireless LAN Adapter to use a wireless network because the set doesn’t support external USB network adapter. • If the wireless router supports DHCP, your TV can connect more easily to the wireless network. • If you apply a security system other than the systems listed below, it will not work with the TV. Security system : WPA, WEP, WPA2. • In order to guarantee smooth network, the distance between router and TV is less than 10 meters.

  • Page 13: Using Your Tv Remote Control

    4. Using your TV remote control Buttons on your TV remote Infrared transmitter Change TV input source Power on / off INPUT Enter Channels / input numbers Dash button Turn Closed Caption On/Off Select a digital sub-channel Special function buttons All Apps Quick Setup menu Confirmation button D-pad (up/down/left/right navigation buttons) Exit the application Return to the previous place in the menu or app...
  • Page 14 Begin using your remote Remote Control Range Information The remote control can work at a distance of up to 26 feet in 1. Slide the back cover to open the battery compartment of the front of the TV set. remote control. It can work at a 30 degree horizontal or vertical angle. Gently push and slide Insert the batteries Gently push and slide...
  • Page 15 Press the Power button on the remote to turn on the TV. A splash screen that shows the RCA logo appears. Next, the First-Time Setup Menu begins by prompting you to choose your Plug the power cord into a power outlet.
  • Page 16 Complete the first-time setup menu Screen Task After the splash screen that shows the RCA logo appears, begin REMOTE Select how you receive your TV channels. Choose the first-time setup menu. BUTTON SETUP from one of the following sources below and then move to the next screen.
  • Page 17 Begin to enjoy your TV Your Smart TV is easy to use and brag-worthy! Now that you’ve completed the first-time setup menu, the Home screen is your starting point for navigating the TV. Gone are the days where your TV only provides one way for you to be entertained.

  • Page 18: Product Specifications

    4 HDMI ports, 3 USB ports, LAN port for Ethernet, 1 Digital Audio Output, 1 RF Input, 1 Earphone Audio Output, 1 RCA Composite Video Input , 1 left/right Audio Input for Composite, 1 RCA Component Video Input Other features...

  • Page 19: Quick Problem-Solving Tips

    7. Quick problem-solving tips When you experience an issue with your TV, turn it off and on again. If this does not resolve the problem, then refer to the tips below. If the problem is still not resolved, then contact Manufacturer Customer Care. ISSUES POSSIBLE SOLUTIONS •...

  • Page 20: Certification And Compliance

    8. Certification and compliance Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. FCC Notice This device has been tested and found to comply with the limits The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or for a Class B digital device pursuant to Part 15 of the FCC Rules.
