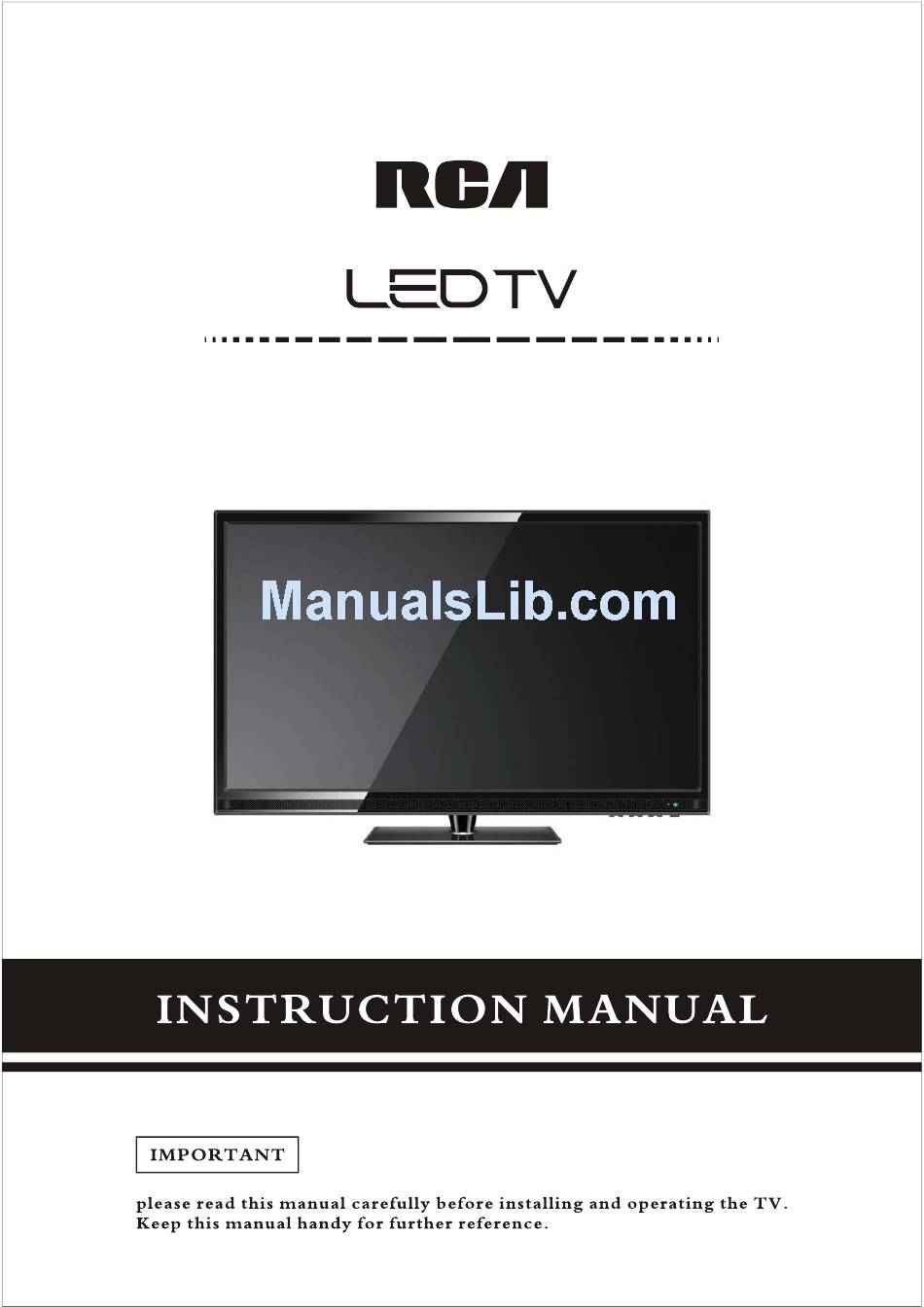

- Page 1 RLDED3955A-B...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and / or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. - Page 3 SAFETY INSTRUCTIONS This product is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the product. Read the following safety instructions before operating the display.
- Page 4 The wall socket should be installed near contact your dealer for repair. Continued the equipment and should be easily use of the product may cause fire or accessible. electric shock. Only the marked power source can be Do not install the product in an area with used for the product.
-
Page 5: Important Information
IMPORTANT INFORMATION Television Antenna Connection Protection External Television Antenna Grounding If an outside antenna or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges. - Page 6 and Wall hang-up 2. Install or dismantle the stand column,should screw in the 5 screws to connect the stand. 3. Install or dismantle the wall hang-up,should screw in the 4 screws to hang up the wall.
-
Page 8: Identifying Front And Rear Panel
Identifying Front and Rear Panel Front View INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on. The light turns green when the TV is turned on. Because of the LCD in the panel, the TV might take 10 – 12 seconds to power on. -
Page 9: Side Control Buttons
Side Control Buttons INPUT – This button switches between all the different sources of the TV. When the OSD is active, this button acts as the enter button and confirms the menu selection. MENU – This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will exit the OSD. - Page 13 For universal remotes, this TV follows NEC’s universal remote code. You need to find the actual code from your cable or satellite or universal remote provider. POWER – Turns the TV on or off. GUIDE – Opens the current digital channel information guide (antenna only). MUTE –...
-
Page 21: Ready To Watch Some Tv
Ready to Watch Some TV? Starting up the HDTV Make sure your power cable is connected and the standby red light in the front of the TV is lit up. Check all your connection cables off the side or the back of your TV and also your AV devices. -
Page 22: Via Remote Control
OSD (On Screen Display) Controls Via Remote Control In order to adjust most of the options inside the On Screen Display (OSD), the picture below shows all the buttons used on the remote control. – This button changes the channel to a higher number and also functions as up direction in the OSD. - Page 23 OSD (On Screen Display) Options PICTURE – This main option has functions for changing the picture settings for all ports, such as tint, contrast, sharpness. SOUND – This main option has functions for changing sound settings for all ports, such as SPDIF Type, treble, bass, and acoustic cinema enhancement….etc.
- Page 24 PICTURE This option allows users to adjust the TV’s picture sharpness, color, tint, and other various functions. Press MENU to open the OSD. Press to select PICTURE and press ENTER. to select the one you want to adjust and or ENTER to adjust them.
- Page 25 TINT – This feature changes the white balance of the color. SHARPNESS – This feature changes the picture quality. SCREEN SIZE – This feature changes the various aspects of the TV’s video. (Normal, Wide, Cinema, Zoom). III. PC SETTINGS AUTO ADJUST – This feature automatically adjusts the picture syncing in with the signal of the PC.
- Page 26 SOUND This option allows users to adjust the TV’s sound functions. Press MENU to open the OSD. Press to select SOUND and press ENTER. to select the one you want to adjust and or ENTER to adjust them. SOUND SETTINGS SOUND MODE –...
- Page 28 CHANNEL This option allows user to adjust the TV’s tuner functions. Press MENU to open the OSD. Press to select CHANNEL and press ENTER. to select the one you want to adjust and or ENTER to adjust them. CHANNEL LIST – This feature gives you the list of channels currently found by the FAVORITE LIST –...
- Page 31 SETUP This option allows user to adjust the TV’s miscellaneous options. Press MENU to open the OSD. Press to select SETUP and press ENTER. to select the one you want to adjust and or ENTER to adjust them. CLOSED CAPTION – This provides your TV tuner, AV ports with subtitles. CAPTION DISPLAY –...
- Page 32 CC SIZE – This changes the size of the text. CC FONT – This changes the text font style. CC OPACITY – This changes the transparency of the captioning. CC COLOR – This changes the color of the text. CC BACKGROUND OPACITY – This changes the transparency of background of the text.
- Page 33 OTHERS This option allows users to set other features of the TV. Press MENU to open the OSD. Press to select OTHERS and press ENTER. to select the one you want to adjust and or ENTER to adjust them. BLUE BACK – This feature gives the TV a blue default background when there is no signal.
-
Page 34: Rating Explained
Closed Captioning (digital and analog) Explained Your TV is equipped with an internal Closed Caption decoder. It allows you to view conservations, narration and sound effects as subtitles on your TV. Closed Captions are available on most TV program, and on some VHS home video tapes, at the election of the program provider. - Page 35 TV-G (USTV) – General Audience Most parents would find this program suitable for all ages. Although this rating does not signify a program designed specifically for children, most parents may let younger children watch this program unattended. It contains little or no violence, no strong language and little or no sexual dialogue or situations. TV-PG (USTV) –...
-
Page 36: Aspect Ratio Explained
Aspect Ratio Explained The TV is a widescreen TV, but most TV programs are still broadcasting in a square format, therefore the TV is offering multiple ways of viewing videos. There are mainly two types of signal format, Full (16:9 format), Normal (4:3 format), while others offer a novelty ways to view the TV. - Page 37 Zoom When watching a 4:3 aspect ratio TV or movie, this mode zooms in to cut off most of the black bars on the side while preserving the 16:9 ratio. Because of the zoom, the top and bottom are cut off as well. WATERGLASS (panorama) When watching a 4:3 aspect ratio TV or movie, there will be black bars on the side, you can remove this by using 16:9 aspect but the entire picture will be distorted horizontally.
-
Page 38: Shortcuts To Browsing Channels
Shortcuts to Browsing Channels Browsing through the entire channel list on the TV can be tedious. This TV features a favorite channel list, where you can add in channels that you always want to watch TO ADD TO THE FAVORITE LIST Go to any channel you would like to include in your favorites list. -
Page 40: Troubleshooting
Troubleshooting The following table contains the common problems and the solutions to these problems. Please check this list before you contact the technicians. Problems Solutions Connect power cord correctly. Turn on power. NO PICTURE Connect video cable correctly. Select the input signal source with proper cable connection with the source button. - Page 41 HDCP video device’s sound output to the TV’s VGA STEREO AUDIO INPUT. If your HDCP video device uses RCA AUDIO jacks, you’ll need to obtain a RCA audio converted into 3.5 mm mini-jack cable. CANNOT GET Make sure the TV is recognized as plug and play monitor. Try 1920X1080 ON PC updating your video card’s drivers as well.
- Page 42 Problems Solutions SWITCHING A Different channels and inputs will sometimes have this effect CHANNEL OR because the channel signal’s own volume is already loud. SOURCE CHANGES There is no way remove this completely. The TV has an THE VOLUME AUTO VOLUME LEVEL function that can combat this type of effect.
- Page 43 Specification Panel Specifications o i t c t i Max. of Pixels (Resolution) HD (1366 x 768 pixels) FHD 1920x1080 pixels s t i Auto Contrast Enhancement z i r c i t Lamp Life of Backlight > 30,000hrs Functions (1) Video Functions Noise Reducing Core Technology o i t...
- Page 44 (3) General Funtions Hybrid Tv Tuner NTSC / ATSC / QAM (Digital Cable Ready) Channel Auto Scan Sleep Timer (Minutes) Off / 15 / 30 / 60 / 90 / 120 Screen Size 39 inch Power requirement AC100-240V~ , 50/60Hz Power consumption Standby Power Under 1W...
