Summary of Contents for Pars PSTB-9011

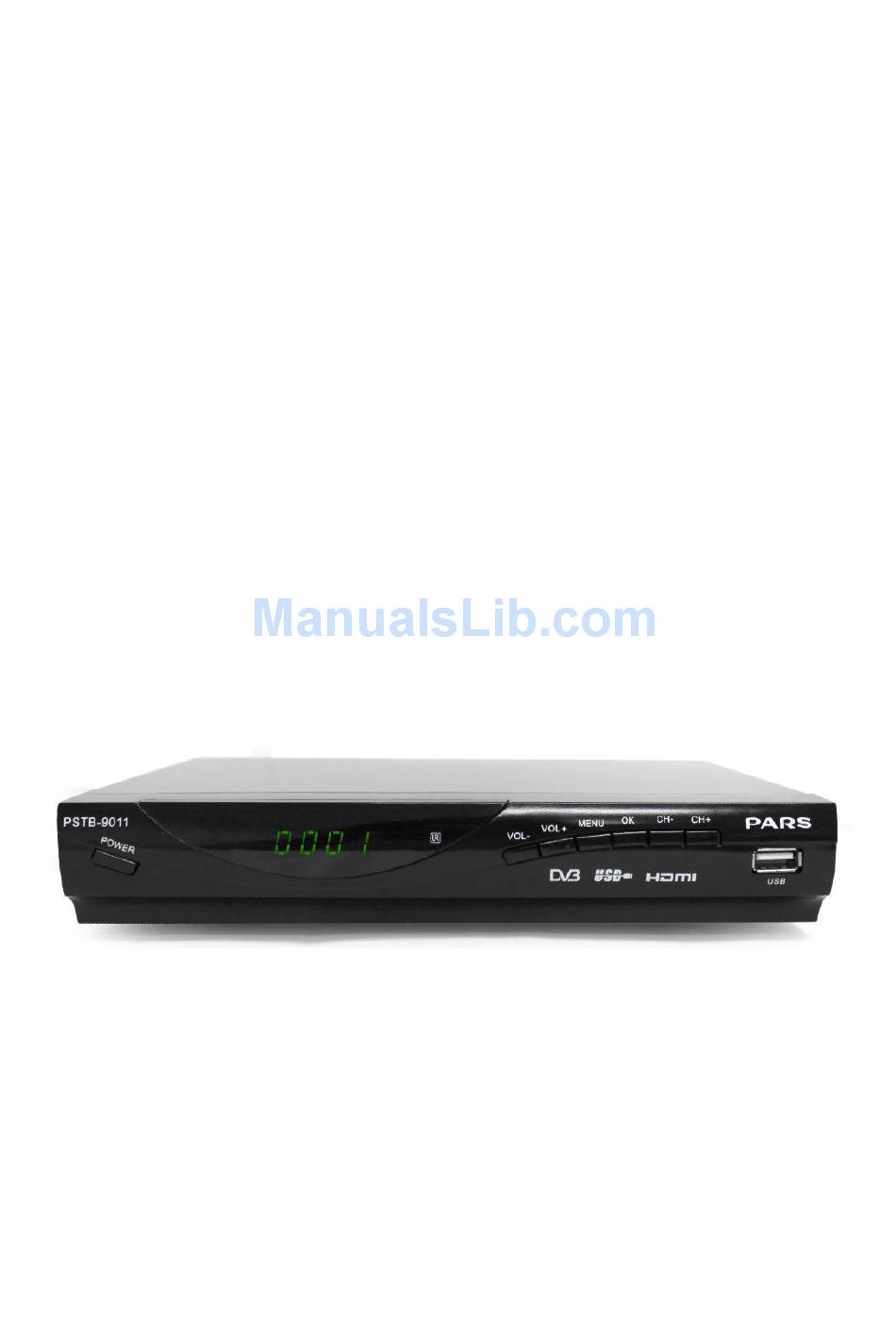

- Page 1 User Manual...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ..........................MAIN FUNCTIONS AND FEATURES .................... THE REMOTE CONTROL ......................FRONT AND REAR PANEL ......................REAR PANEL ..........................FRONT PANEL .......................... INSTALLATION ............................................... ONNECTING THE RECEIVER ........................NSTALLATION UIDE MENU ............................. MAIN MENU ........................................................ AILY USE INFO. -
Page 3: Important Safety Instructions
! As a switching equipment, power adaptor should be convenient for operating the device should be far away from water dropping and splashing, as well as vase full of liquid Power Cord Protection To avoid any malfunctions of the unit and to protect against electric shock, fire or personal injury, please observe the following: ... -
Page 4: Introduction
INTRODUCTION This user manual is intended to guide you through the operation for the DVB-T FTA High Definition Digital Terrestrial Receiver. A password will be required when modifying advanced options in the Menu. The default password is “000000”. MAIN FUNCTIONS AND FEATURES Terrestrial This product is a high performance HDTV receiver. -
Page 5: The Remote Control
3 THE REMOTE CONTROL OPEN/CLOSE: Open or close disc tray. POWER: Switch the receiver in and out of standby mode. 1-9: Numeric Keys LANG: Press LANG key to set the audio track and audio mode. SUBTITLE: Display subtitle options. TV/RADIO: Switch between Digital Radio and DVB-T modes. RECALL: Go back to the previous viewed channel. -
Page 6: Battery Installation
Battery Installation Insert the batteries while observing the correct (+) and (-) polarities as illustrated below: About the batteries If the remote control unit fails to work even when it is operated near the receiver, please replace the batteries. ... -
Page 7: Front And Rear Panel
FRONT AND REAR PANEL REAR PANEL YPBPR ANT IN LOOP OUT COAXIAL HDMI Audio L/R VIDEO Rear Panel ANT IN Digital terrestrial TV broadcast signal input LOOP OUT Antenna loop out HDMI Digital HDTV video output with HDCP COAXIAL Digital audio output AUDIO L/R Analog audio output VIDEO... -
Page 8: Installation
INSTALLATION ONNECTING THE RECEIVER Before you connect your STB to your TV please ensure that it is placed on a flat and stable surface. Now that your STB is in position connect it to your TV and any other peripheral devices. Please refer to the below diagram and your TVs user manual for cable installation instructions. -
Page 9: Installation Guide
NSTALLATION UIDE If you are using the unit for the first time or have restored the unit to Factory Default, the installation Guide Menu will appear on your TV screen. Follow the help information that at the bottom of the window to select preference menu language and suitable country (Region) and start channel search. - Page 10 a. Program Settings: You can edit the programs, check the TV Program Guide, sort the channels, and set the LCN here. 1) To edit your program preferences (to lock, skip, favourite, move or delete a program), you need to enter a password. Enter the default password “000000”. The master unlock password is “888888”.
- Page 11 Resolution: You can choose different resolution according to your TV: 576i, 576p, 720p, 1080i,1080p. TV format: PAL/NTSC. c. Channel Search settings: (a) Auto Search: This option will automatically search for TV and Radio channels and save them once the scanning is complete. All previously saved channels and settings will be deleted. (b) Manual Search: This option allows you to scan for new channels without deleting previously saved channels and settings.
-
Page 12: Daily Use
DVR Playing: Select DVR icon. Select the recorded file you want to play, press OK to begin playback. Press the RECALL key to move up to the next Folder. Press the RED key to switch between Preview and Full screen modes. Use the YELLOW key to delete the file you don’t want. -
Page 13: Lang Key
7.2 LANG Some programs may have multilingual audio language and this audio broadcast may be on a different audio mode such as Stereo, Left or Right. All the available audio languages will be displayed on the audio track window when you press the LANG key. The screenshot illustrates this below. If there is no audio output after you have selected the audio language, it indicates that there is no audio on the current audio mode, so you have to select the previous audio mode. -
Page 14: Epg
7.6 EPG Press EPG key to display the on screen electronic program guide. This displays a 7 Day Electronic Program Guide for all programs being broadcast from all broadcasters. 7.7 TV C HANNEL AND RADIO HANNEL LIST Press OK key to display all TV channels or all Radio channels. Follow the help information at the bottom of the window to select preferred channel. -
Page 15: Dvr Function
Menu (Movies/News/Sports/Music). Press the UP or DOWN keys to browse through your favourite channels. Press the “OK” key to select your favourite channel. Delete a TV or RADIO Program: Press the Menu key to access the Program Edit Menu. Select the program you wish to delete and press the “BLUE”... -
Page 16: Electronic Program Guide Timer Recording
) Electronic Program Guide Timer recording MENU =>PROGRAM => EPG=>Program Guide => Planning =>Schedule =>Event Add =>Timer Recording. You will never miss any of your favourite programs again with the Electronic Program Guide recording feature. While in TV mode, press the “EPG” key to access the on screen Electronic Program Guide, select the channel and program you wish to record. -
Page 17: Playback Of A Recorded Program
function or F.F. (Fast Forward) to catch up to live viewing. If you wish to stop the TIMESHIFT function, press the “STOP” key. A dialogue box will be displayed on screen asking you to confirm. Press “OK” to stop the TIMESHIFT, To save the space of the USB hard drive, the recorded program is not stored under time shift mode. -
Page 18: Format Portable Hard Disk
) Format portable hard disk A Format hard disk function has also been provided. Formatting a hard disk will permanently delete all the data on the hard disk. It is strongly recommended to backup all the data before formatting your hard disk drive. -
Page 19: Specifications
. SPECIFICATIONS Tuner Input Connector IEC 16902. Female Input Frequency Range VHF & UHF Num of RF Inputs Input impedance 75 ohm RF output Connector (bypass)IEC 169-2 Male Loop through 177.5-866MHz Demodulation Standard ETSI EN300 744 Guard interval Modes 1/32,1/16,1/8 Active Symbol duration FEC Modes Rate 1/2,2/3,3/4,5/6,7/8 Carriers/Constellation...
