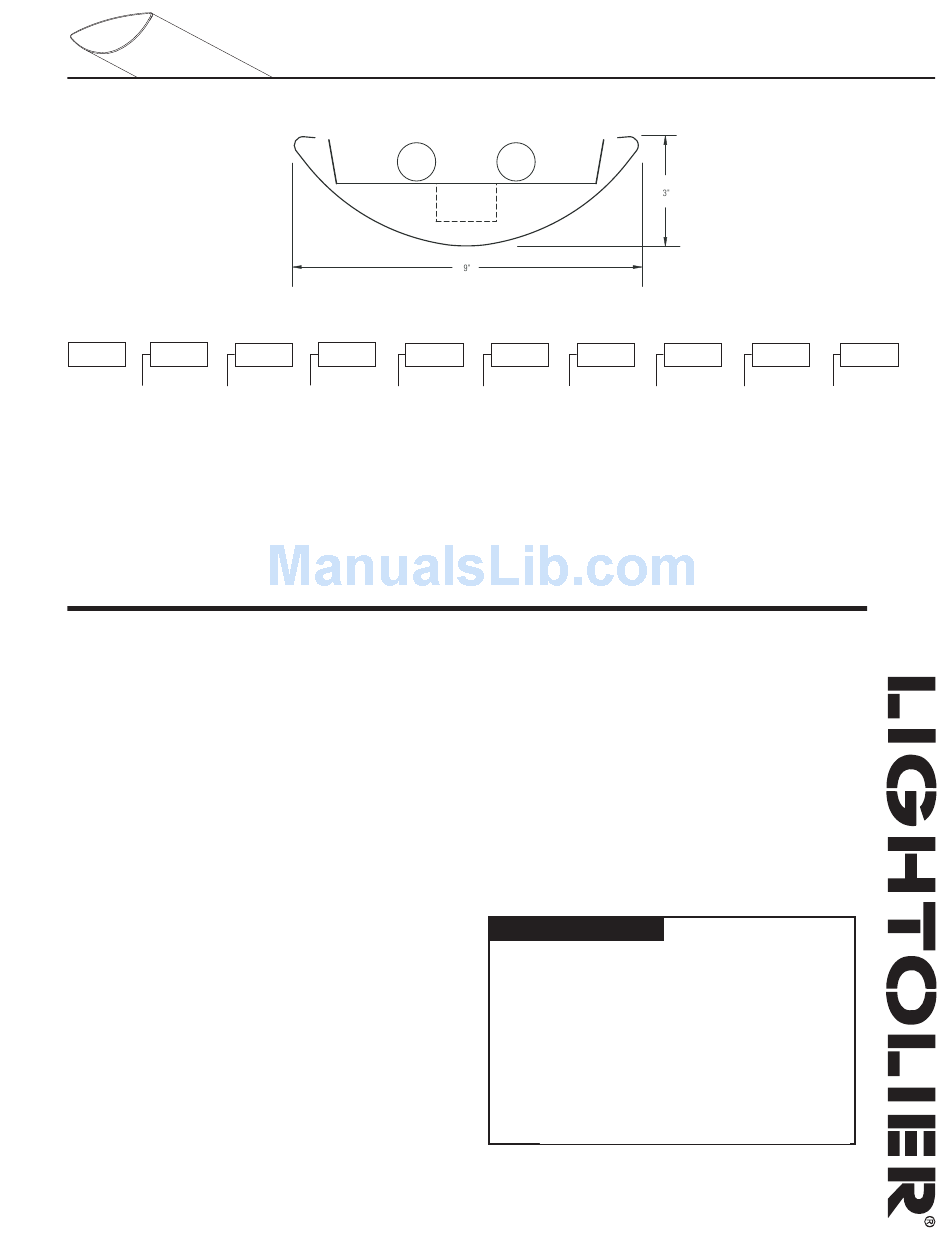

Lightolier Baselyte-BSL22 Datasheet

Lighting systems 2 light t8 indirect
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Page  of 8
Ordering Information
Distribution
Family
Lamp Type
BSL
3
3 = Indirect
T = T8

Specifications

Features
. Housing: die-formed 20ga. cold rolled steel
2. End Set: die-cast metal with baked powder coat finish
3. Lamping: two T8 lamps
4. Configuration: 4', 8' and 2' module lengths or continuous rows
5. Ballasts: electronic 20V or 277V
Finish
High-quality white powder coat with textured matte finish.
Custom colors available. Consult factory.
Mounting
Aircraft cable gripper is tamper-resistant and provides infinite vertical
adjustment capability. Aircraft cable, crimp and cable gripper independently
tested to meet stringent safety requirements.
Electrical
All luminaires are factory pre-wired to module ends with quick-wire
connectors.
Joints & Intersections
Self-aligning joining system with hands-free pre-joining wire access.
Labels
UL, CSA standards.

Lighting Systems

Weight = 3.0 lb./ft
No. of Lamps
Housing
T
02
EN
02 = 2 Light
EN = Solid
Baselyte-BSL22
Module Length
Wiring
04 = 4'
1 = cct.
08 = 8'
2 = 2cct.
12 = 2'
3 = cct. w/EC/NL
4 = 2cct. w/EC/NL
5 = cct. w/EM Battery
6 = 2cct. w/EM Battery
7 = cct. w/Dimming
8 = cct. w/cct.
Thru wire
9 = 2cct. w/cct.
Thru wire
Note: Please consult
wiring section of spec
sheets for more
wiring options.
Ordering Instructions
Individual Fixtures
. Determine the number of individual modules required
2. Order one end set per module
3. Order one non-power mount per module
4. Order one power mount per module
Continuous Rows*
. Determine run length
2. Order the appropriate number and length of modules for complete run
3. Order one end set for each run
4. Order one non-power mount for each module
5. Order one power mount per run
6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)
*Note: Some runs may require additional power mounts. Please see the 'Run
Configuration' table on next page for more details.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Company
63 Airport Road, Fall River, MA 02720 • (508) 679-83 • Fax (508) 674-470
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.
2 Light T8 Indirect
Voltage
Ballast
1 = 20V
C = Custom Color
E = Standard
2 = 277V
W = Standard
<20% THD
F = Standard
<20% THD
w/fusing
G = <0% THD,
Instant Start
H = <0% THD,
Instant Start
w/fusing
J = <0% THD,
Program Start
K = <0% THD,
Program Start
w/fusing
Type:
www.lightolier.com
