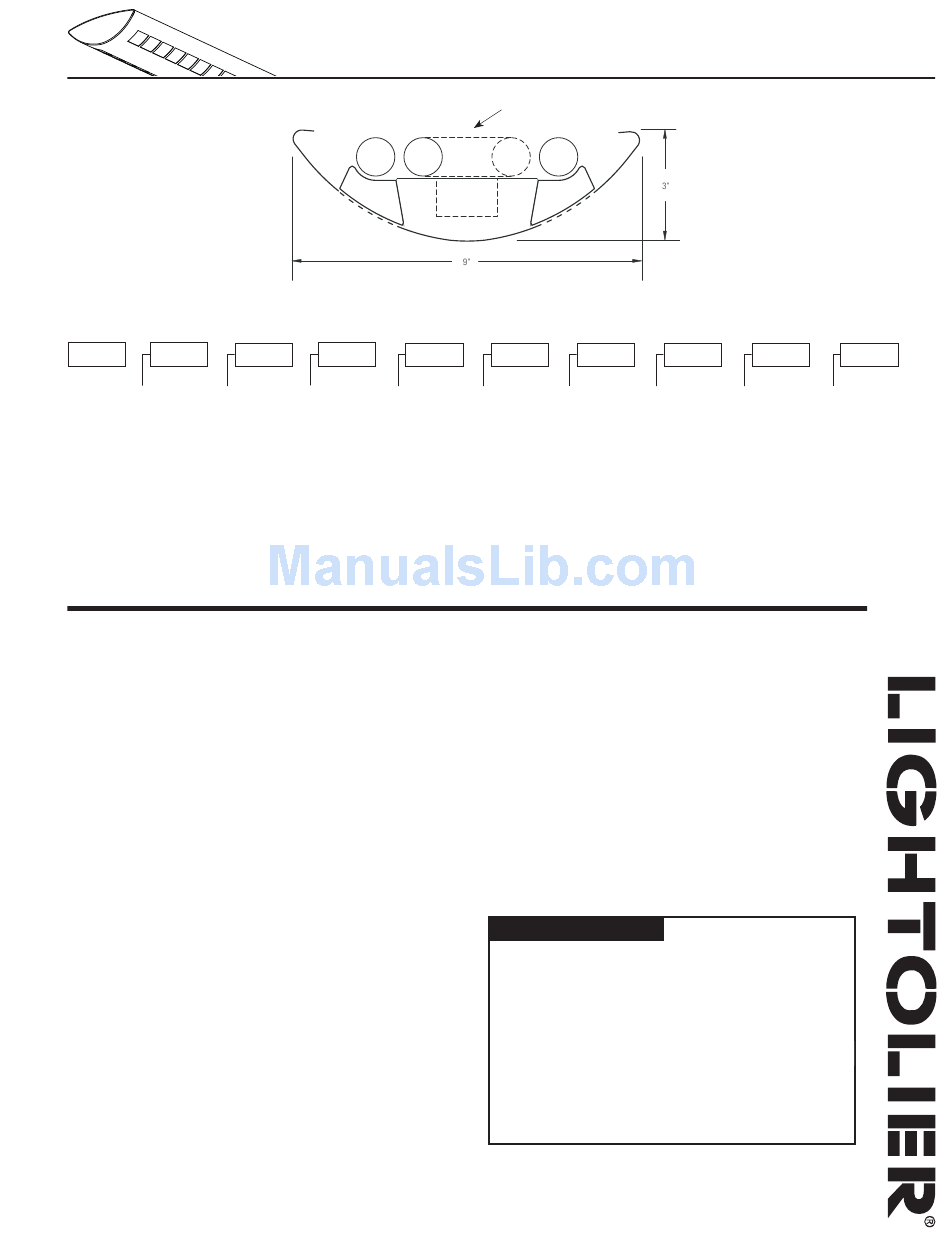

Lightolier Lighting Systems Baselyte-BSL2 Specification Sheet

Page 1 of 8
Ordering Information
Distribution
Family Lamp Type
BSL
6
6 = Direct/ T = T8
Indirect

Specifications

Features
1. Housing: die-formed 20ga. cold rolled steel
2. End Set: die-cast metal with baked powder coat finish
3. Lamping: three T8 lamps
4. Configuration: 4', 8' and 12' module lengths or continuous rows
5. Ballasts: electronic 120V or 277V
Finish
High-quality white powder coat with textured matte finish.
Custom colors available. Consult factory.
Mounting
Aircraft cable gripper is tamper-resistant and provides infinite vertical
adjustment capability. Aircraft cable, crimp and cable gripper independently
tested to meet stringent safety requirements.
Electrical
All luminaires are factory pre-wired to module ends with quick-wire
connectors.
Joints & Intersections
Self-aligning joining system with hands-free pre-joining wire access.
Labels
UL, CSA standards.
Lighting Systems
Weight = 3.0 lb/ft
No. of Lamps
Housing
T 03 CN
03 = 3 Light
CN = Cutout
w/baffles
Baselyte-BSL2
angled lamp
Module Length
Wiring
04 = 4' 1 = 1cct.
08 = 8' 2 = 2cct.
12 = 12'
3 = 1cct. w/EC/NL
4 = 2cct. w/EC/NL
5 = 1cct. w/EM Battery
6 = 2cct. w/EM Battery
7 = 1cct. w/Dimming
8 = 1cct. w/1cct.
Thru wire
9 = 2cct. w/1cct.
Thru wire
Note: Please consult
wiring section of spec
sheets for more
wiring options.
Ordering Instructions
Individual Fixtures
1. Determine the number of individual modules required
2. Order one end set per module
3. Order one non-power mount per module
4. Order one power mount per module
Continuous Rows*
1. Determine run length
2. Order the appropriate number and length of modules for complete run
3. Order one end set for each run
4. Order one non-power mount for each module
5. Order one power mount per run
6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)
*Note: Some runs may require additional power mounts. Please see the 'Run
Configuration' table on next page for more details.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
3 Light T8 Direct/Indirect
Voltage
Ballast
1 = 120V
C = Custom Color
E = Standard
2 = 277V
W = Standard
<20% THD
F = Standard
<20% THD
w/fusing
G = <10% THD,
Instant Start
H = <10% THD,
Instant Start
w/fusing
J = <10% THD,
Program Start
K = <10% THD,
Program Start
w/fusing
Type:
www.lightolier.com
Finish
White
