Curtis LCD3957UK Operating Instructions Manual

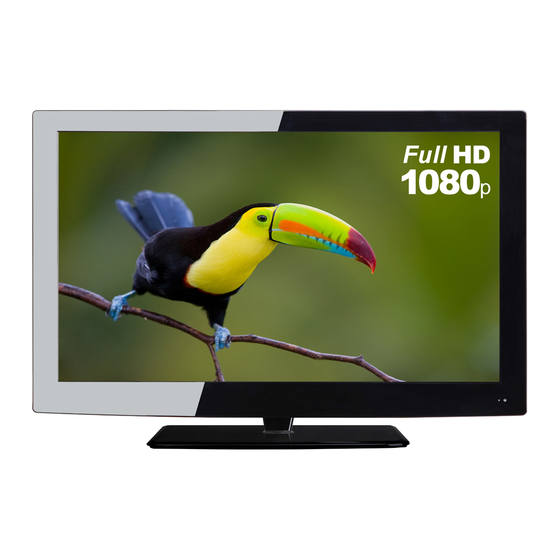

39" 1080p lcd television
Hide thumbs
Table of Contents

Advertisement

Quick Links

39" 1080p LCD Television
LCD3957UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD3957UK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Curtis LCD3957UK

Summary of Contents for Curtis LCD3957UK

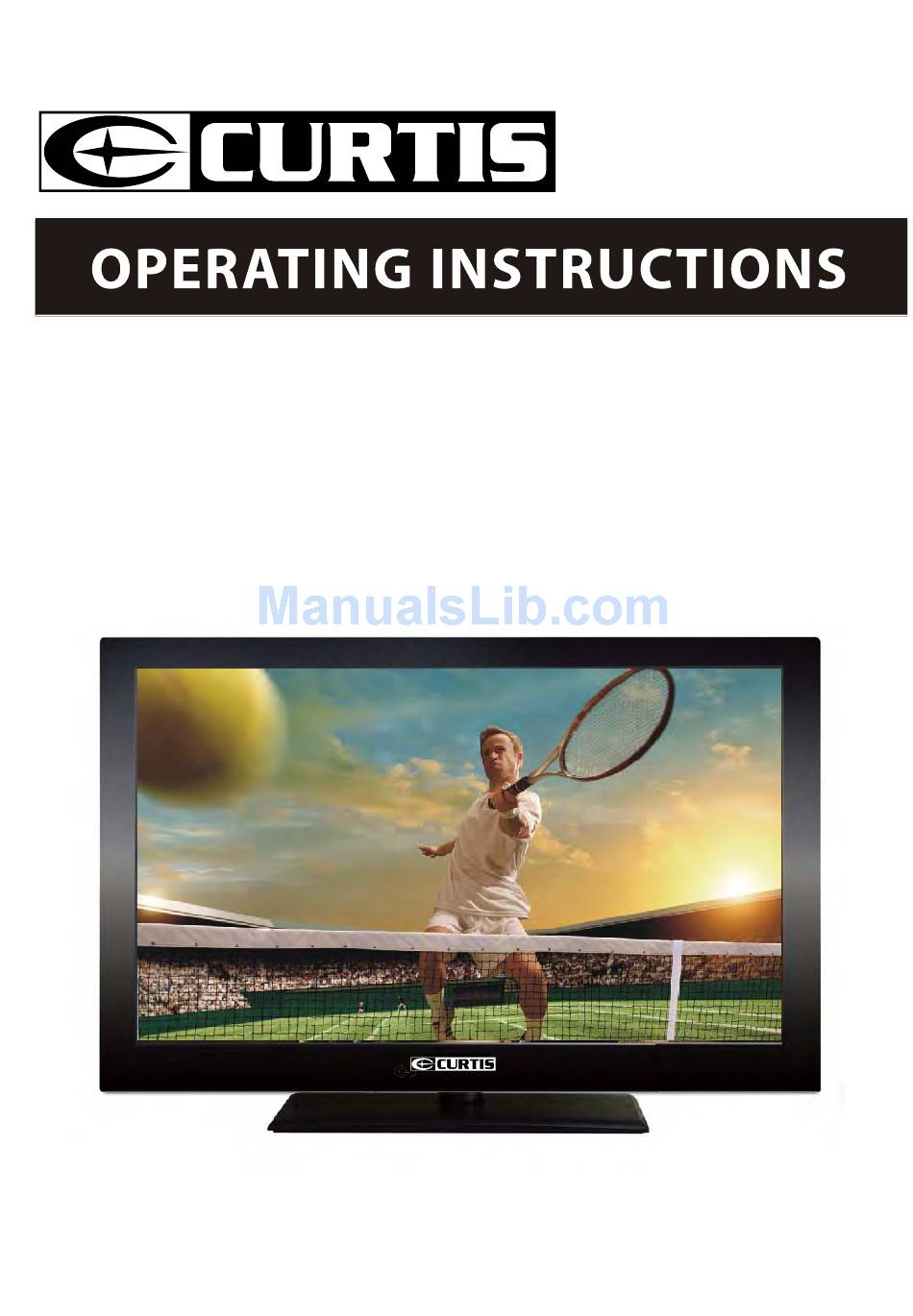

  • Page 1 39" 1080p LCD Television LCD3957UK...

  • Page 2: Table Of Contents

    Contents Caution Safety Information Product Introduction Front View Accessories Connections Remote Control Auto installation setup Basic Operation OSD Menu 9-15 1. Channel menu 9-10 2. Picture menu 3. Sound menu 4. Time menu 5. OPTION menu 6. LOCK menu Multimedia Operation 16-18 Recording Operation 19-21...

  • Page 3: Caution

    Caution Caution The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Safety Information

    Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety To prevent overload, don't share the same mains supply socket with too many other items of equipment.

  • Page 5: Product Introduction

    Product Introduction Front View INPUT: Press to display the input source menu. MENU: Press to display the OSD menu, press again to exit the menu. CH+/-: Press to scan through channels. VOL+/-: Press to adjust the volume. POWER: Turn on/standby th e TV set. Power Indicator Remote Control window (Keep clear) 1).

  • Page 6: Connections

    Connections Your TV provides a variety of input connections for maximum flexibility of use with your external AV equipment. Please refer to the details below for suggested connection options. Side Connections: SWITCH USB: Connect to USB device for multimedia. HDMI1/2/3: Connect to the HDMI socket of your DVD or Satellite Box.

  • Page 7: Remote Control

    Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER: Selects between On and Standby modes ( once the main power switch is in the On position.
  • Page 8 Remote Control REMOTE CONTROL REC LIST CH/LIST SUBTITLE REPEAT INPUT DISPLAY MENU EXIT CH / : Scan through channels. VOL / : Adjust the volume. PICTURE: Select the picture mode. EPG: To show the Electronic Program Guide during no-menu state only in DTV mode. SOUND: Select the sound mode.

  • Page 9: Auto Installation Setup

    Auto installation setup Auto installation setup Power On / Off the TV Press the POWER button on the LCD TV or the POWER button on the remote control, the standby indicator will light green. To turn off the LCD TV Press the POWER button on the LCD TV or the POWER button on the remote control, the standby indicator will light red.

  • Page 10: Basic Operation

    Basic Operation Power on/off 1. Connect the TV to a mains power socket with the supplied power cord. 2. Activate the main power On/Off switch (located at the bottom right-hand corner of the TV). Check that the LCD power indicator on the front panel glows red. 3.

  • Page 11: Osd Menu

    OSD Menu 1. CHANNEL Menu Description Auto Scan Before you can receive any TV signals, the TV must first scan through the available local channels and store their settings. Use the V cursor to select Auto Scan, then press the OK button to enter the hint menu, and select the Country and Tune Type mode for the TV, then press OK button to start auto tuning.
  • Page 12 OSD Menu Programme Edit Press button to enter the Program Edit menu, an example of which is shown below. Rename Delete: Select a channel and press the RED button, “Delete” will appear on the right of the program edit menu next to the channel you have chosen, then press the RED button again and the program will be deleted.

  • Page 13: Picture Menu

    OSD Menu 2. PICTURE Menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and Sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. Brightness: Controls the overall brightness of the picture.

  • Page 14: Sound Menu

    OSD Menu 3. SOUND Menu SPDIF MODE SPDIF MODE Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble: Can be adjusted when the sound mode is User : Controls the relative intensity of higher pitched sounds. Bass: Can be adjusted when the sound mode is set to User: Controls the relative intensity of lower pitched sounds.

  • Page 15: Time Menu

    OSD Menu 4. TIME Menu No Action Auto Standby Description Clock: Use the buttons to select the position, and use the buttons to set the time. Note: User can not change time manually during DTV reception, as the time setting is taken from the TV signal source directly.

  • Page 16: Option Menu

    OSD Menu 5. OPTION Menu OSD Duration Description OSD Language: Allows you to select the menu language. Audio Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second audio language, where available. Subtitle Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second subtitle language, where available.

  • Page 17: Lock Menu

    OSD Menu 6. LOCK Menu No Lock Description Lock System: Turn on/off the Lock System function. Note: You must enter the current PIN code to operate this menu. The original code is 0000. Set Password: Set a new PIN code. If the PIN code has been changed you must enter the present code first, then proceed to changing the PIN.

  • Page 18: Multimedia Operation

    Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select USB source using the buttons, and press the OK button to enter the Multimedia menu seen below. SCART YPBPR HDMI1 HDMI2 HDMI3 Select...
  • Page 19 Multimedia Operation 1. Photo Play the photo files Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have selected). Playlist: Display the playlist on the screen, and you can select the photo using the buttons, and press OK button to program.
  • Page 20 Multimedia Operation 3. Movie Play the movie files. Press button to select the option on the table, and press the OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by setting A and B at the beginning and end, and there will be a sign on the left screen, press the OK button again to cancel.

  • Page 21: Recording Operation

    Recording Operation PVR settings Press the MENU button, and select CHANNEL menu. Recording Timer 1). Schedule List Display the recorded list Recorded list: Display the Recorder List menu, and changed the mode of program. INFO: Display the information of the program you recorded. RED button: Delete the program you select.
  • Page 22 Recording Operation 3). Schedule List Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control. 4).
  • Page 23 Recording Operation 5) Record Start When you finish adjusting the previous settings, you can start recording by selecting Record Start in the CHANNEL menu and pressing the OK button while in DTV reception mode. (You can also start recording by pressing the REC button on the remote control) Record buttons REC ( Recording): Press to enter the recording mode.

  • Page 24: Simple Troubleshooting

    Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV.

  • Page 25: Specifications

    SPECIFICATIONS 39”(Diagonal) Viewing Picture Size (diagonal) Resolution 1920x1080 Aspect Ratio 16:9 Display colours 16.7M Brightness 350 cd/m Contrast ratio 3000:1 Response time 8.5ms View angle (H)/178 TV system Digital TV: DVB-T Analog TV: PAL/BG/DK/I DVB-T decode Audio: MPEG2 Audio Layer I&II Video: MPEG2 Transport MP@HL DVB-T de-modulation Demodulator: COFDM...
