Summary of Contents for Curtis LCD3213

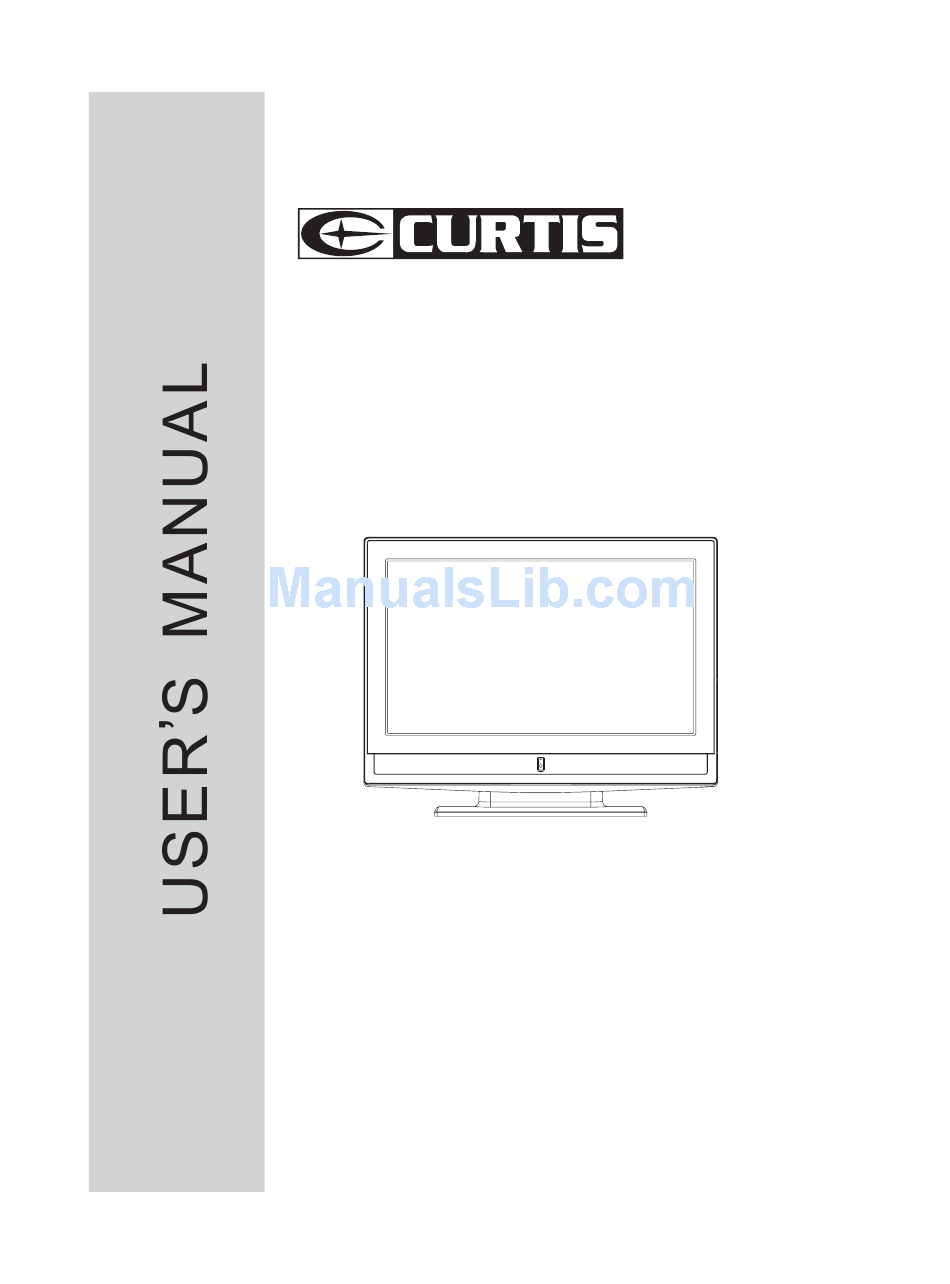

- Page 1 Model: LCD3213 Please read this User Manual carefully to ensure the proper use of this product and keep this manual for future reference...
-
Page 2: Table Of Contents
Contents Safety and warnings Introduction 8-14 Installation Remote Control Operation 16-21 Trouble Shooting Wall Mounting Holes Spacing and Location Base Stand Disassemble Illustration... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1.Read these safety instructions. 2.Keep these safety instructions. 3.Heed all warnings. 4.Follow all safety instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturers instructions. - Page 4 SAFETY AND WARNINGS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN! CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.
-
Page 5: Safety And Warnings
SAFETY AND WARNINGS Warning High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel. Warning To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture. - Page 6 SAFETY AND WARNINGS Caution Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls. Caution Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual , and damage to the television, may result if it falls.
-
Page 7: Safety And Warnings
SAFETY AND WARNINGS Thank you very much for purchasing this TV. To enjoy your product from the very beginning, read this manual carefully and keep it handy for easy reference. INSTALLATION Locate the TV in the room where light does not strike the screen directly Total darkness or a reflection on the picture screen can cause eyestrain. -
Page 8: Introduction
INTRODUCTION Main features Used as Television, display terminal,PC display High luminance,wide viewing angle Can store AIR 2-69,HRC 1-125,IRC 1-125,CATV 2-125 TV programs Dual HDMI interface 5 BTSC Main parameter Vie wing Picture Size(diagonal) Resolution 1366x768 Aspect Ratio 16 : 9 TV System NTSC-M, NTSC-N NTSC /PAL/SECAM... -
Page 9: Installation
INSTALLATION Accessories Accessories AC Power Cord......Infrared Remote Control..User s Manual ......Battery(AAA)......HDMI cable is no included. Front panel 1: Remote control sensor. 2: Indicator LED: GREEN POWER ON. STAND BY. POWER MUTE NICAM RECALL Control Panel (see next page). TV MENU INPUT ENTER... - Page 10 INSTALLATION CONTROL PANEL SOURCE MENU VOL+ VOL- 1 SOURCE Display the input source menu. 2 MENU To display main MENU. 3 CH+/CH- In TV mode press CH+ or CH- to change the channel up and down. In MENU,press CH+ or CH- to select items in MENU. when TV is in standby mode, press CH+ or CH- button in TV control panel will power on the TV.
- Page 11 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced. -10-...
- Page 12 INSTALLATION STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC. This sequence is very important. VIDEO VIDEO -11-...
- Page 13 INSTALLATION PRESET MODE(recommended resolution is 1024*768@60Hz) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 37.50 640*480 37.88 800*600 800*600 46.88 1024*768 48.36 1024*768 60.02 1280*1024 63.98 -12-...
- Page 14 INSTALLATION AV EQUIPMENT This TV provides three inputs for Composite (A/V), two inputs for S-Video, and one input for Component (Y/Pb/Pr) . You can use the input terminals on TV set rear as follows. with S-video term inal with To audio terminal Output VIDEO EQUIPMENT...
-
Page 15: Installation
INSTALLATION Insert Batteries Into the Remote Control 1. Remove the battery cover. 2. Place 2 AAA batteries (included) making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit. 3. Mount the battery cover. Replace the batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. -
Page 16: Remote Control
REMOTE CONTROL POWER REMOTE CONTROL To set the TV standby or on. NUMBER KEY For direct access to program. For a 2 (3) digit program number, The second (third) digit must be entered before the dash disappears. POWER MUTE The number, the name (and the sound mode, in analogue mode) are displayed for a few seconds. -
Page 17: Operation
OPERATION 1. PICTURE MENU The first item of the MENU is picture menu. You can adjust picture effects here, such as contrast, brightness, etc. Press to move, press to adjust. CONTRAST BR IGHTNESS TINT COLOR SHARPNESS NORMAL COLOR TEMP . 16:9 ASPECT. - Page 18 OPERATION 3.FUNCTION MENU The third item of the MENU is the function menu. You can adjust the settings below: 1).3D NR: adjust this item , you can see the noise reduction effect in the picture only for TV and AV source. 2).CLOSED CAPTION: switch close caption mode..
- Page 19 OPERATION FUNCTION TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA ENTER KEY : BLOCK OR UNBLOCK Content Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually violence) situation) suggestive language) dialog) TV-Y (All children) TV-Y7(Direct to order children) Suggested TV-G(General audience) TV-PG(Parental Guidance suggested) TV-14(Parents strongly cautioned) TV-MA(Mature...
- Page 20 OPERATION 5).English-rating:switch the english-rating control level:E,C,C8+,G,PG,14+,18+. Rating Description Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.
- Page 21 OPERATION 4.OSD MENU The fourth item of the menu is the OSD menu OSD LANGUAGE ENGLISH OSD H-POSITION OSD V-POSITION OSD TIMEONT OSD TRANSPARENCY 5.CHANNEL MENU The fifth item of the MENU is channel menu(only use in TV source). You can complete channel search and setting here. MONO CHANNEL AUTO SCAN...
-
Page 22: Operation
OPERATION In PC Mode, there are two items that are different with other sources. 1. PC MENU You can adjust picture here, such as contrast, brightness. Press to move, press to adjust. CONTRAST BR IGHTNESS COLOR MODE NORMAL ASPECT 1.colour mode:only four modes could be selected: normal,warm,cool,user. 2.Press to move,press to adjust RGB value according to your personal taste under... -
Page 23: Trouble Shooting
Trouble shooting Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute... -
Page 24: Wall Mounting Holes Spacing And Location
Wall Mounting Holes Spacing and Location 400 mm Base Stand Disassemble Illustration How to remove the stand from the TV 1.Use the screwdriver to remove the screws 1.Remove the base stand from the from the screw location. Main body. Main accessories Main body Base Stand 8 Screws...
