INSTALLATION & OPERATION GUIDE

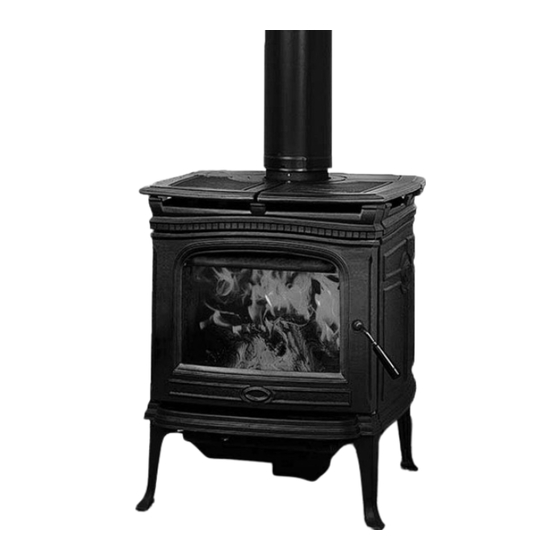

ALDERLEA T4 CAST IRON WOOD STOVE
MODEL: ALDERLEA - T4, T4 CLASSIC
If this stove is not properly installed, a house fi re may result. For your safety,
follow the installation instructions. Contact local building or fi re officials about
restrictions and installation inspection requirements in your area.
©PACIFIC ENERGY FIREPLACE
080515-24
PRODUCTS LTD. - 2014
(STANDARD OR CLEARVIEW DOOR)
SERIES: C

SAFETY NOTICE

PLEASE SAVE THESE INSTRUCTIONS
TESTED and LISTED to
CAN/ULC S627 AND UL 1482
Meets the Environmental Protection Agency's
May 2015 Particulate Emission Standards
ALT4
By Pacifi c Energy
SERIAL #
5055.302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T4 and is the answer not in the manual?

Questions and answers

Related Manuals for Alderlea T4

Summary of Contents for Alderlea T4

  • Page 1: Safety Notice

    By Pacifi c Energy INSTALLATION & OPERATION GUIDE SERIAL # ALDERLEA T4 CAST IRON WOOD STOVE MODEL: ALDERLEA - T4, T4 CLASSIC (STANDARD OR CLEARVIEW DOOR) SERIES: C SAFETY NOTICE If this stove is not properly installed, a house fi re may result. For your safety, follow the installation instructions.

  • Page 2: Table Of Contents

    Label ................... 23 PLEASE SAVE THESE INSTRUCTIONS This manual describes the installation and operation of theAlderlea, T4 Freestanding wood heater. This heater meets the 2015 U.S. Environmental Protection Agency's crib wood emission limits for wood heaters sold after May 15, 2015.

  • Page 3: Safety And Maintenance

    Safety and Maintenance Burn only dry, well seasoned wood. The denser or heavier the wood when dry, the greater its heat value. This is why hardwoods are generally preferred. Green or wet wood will WARNING: cause a rapid buildup of creosote. If you feel it is necessary to burn wet or unseasoned Never use chemicals or any other volatile wood, do so only with the air inlet set open enough to maintain a good strong fi re and liquid to start a fi re.

  • Page 4: Maintenance Checks

    Maintenance Checks Check the following parts for damage such as cracks, excessive corrosion, burned out sections and excessive warping: (See website for descriptions and more detail) Weekly: - Firebrick - Visual, for cracking. - Door Gasket - sagging, placement, damage. Monthly - Brick rail tabs and brick rails.

  • Page 5: Chimney Smoke And Creosote Formation

    Chimney Smoke and Creosote Formation When wood is burned slowly, it produces tar and other organic vapours, which com- bine with expelled moisture to form creosote. The creosote vapours condense in the relatively cool chimney fl ue of a slow burning fi re. As a result, creosote residue accumulates on the fl ue lining.

  • Page 6: Appliance Dimensions

    If You Suspect a Chimney Fire Signs of a chimney fi re may be one or more of the following: A roaring sound 2. Vibration of the chimney 3. Flames and sparks shooting out of the top of the chimney In Case of a Chimney Fire Immediately close the air inlets on the stove.

  • Page 7: Installation - Residential

    Installation – Residential Warning: Under no circumstances is this heater to be installed in a makeshift or "temporary" manner. It may be fi red only after the stove is installed properly. • DO NOT ATTEMPT TO CONNECT THIS HEATER TO ANY AIR DISTRIBUTION DUCT.

  • Page 8: Chimney And Connector - Residential

    Chimney and Connector – Residential Connect to a listed chimney or a chimney suitable for use with solid fuel that is lined and in good condition and meets local building codes. The chimney fl ue size should be the same as the stove outlet for optimal performance. Reducing or increasing the fl ue size may adversely affect stove performance.

  • Page 9: Installation - Mobile Home

    Installation – Mobile Home Warning: Under no circumstances is this heater to be installed in a makeshift or "temporary" manner. It may be fi red only after the following conditions have been met. • DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
  • Page 10 Fig #4 SPARK ARRESTOR RAIN CAP CHIMNEY 3' (914 mm) MINIMUM STORM COLLAR RADIATION SHIELD ROOF FLASHING The chimney may incorporate an offset. To do this safely, all sections of listed connector, offset elbows and chimney section must be CHIMNEY SUPPORT screwed together by at least three MINIMUM 7' (2100 mm) sheet metal screws per joint.

  • Page 11: Installation Procedure - Mobile Home

    Installation Procedure – Mobile Home CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED. Note: See "Combustion Air" section on page 12. Position stove and fl oor protection with hole for combustion air in accordance with the clearances as stated on the label and in Figure #3.

  • Page 12: Floor Protector

    Floor Protector The stove may be installed on a combustible Fig #6 Fig #5 Canada Only U.S.A. Only fl oor provided noncombustible ember protec- tion is used. Minimum Width - 40”(1.02m) Minimum Width - 32”(813m) Minimum Overall Depth - 43 1/4”(1.1m) Minimum Overall Depth - 33 1/4”(845m) This protection must extend as follows: In Canada: 18"...

  • Page 13: Operation

    Hot while in operation. Keep children, clothing and furniture away. Contact may cause skin burns. Your ALDERLEA stove is designed for maximum overall efficiency at a moderate fi ring rate. Overfi ring is hazardous and a waste of fuel. Too slow a burn contributes to creosote buildup and lowers combustion efficiency.

  • Page 14: Lighting A Fire

    Lighting a Fire WARNING: Never use chemicals or any other volatile liquid to start a fi re. 1. Adjust air control to “High” position(all the way to the left) and open door. 2. Place crumpled newspaper in the centre of the heater and criss-cross with several pieces of dry kindling.

  • Page 15: Restarting After Extended Or Overnight Burns

    Ash Chute Operation: Your Alderlea stove is equipped with an ash chute system to ease removal of ash from the ash lip area. To use this system, fi rst pull out the ash pan approxi- mately 2”(51mm), sweep the ash into the chute located to the right side of the ash lip, and...

  • Page 16: Disposal Of Ashes

    Disposal of Ashes Ashes should be placed in a metal container with a tight fi tting lid. The closed container of ashes should be placed outside on a non-combustible fl oor or on the ground, well away from all combustible materials, pending fi nal disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in a closed container until all cinders have thoroughly cooled.

  • Page 17: Troubleshooting

    PPENDIX Troubleshooting Problem Cause Cure Glass is Dirty 1. Wood is wet • Use dry wood 2. Turning down air control • Do not turn down until or damper too soon a) there is a good bed of coals b) the wood is charred 3.

  • Page 18: Replacement Parts

    Replacement Parts #1 BAFFLE KIT .......... VIST.BAFKIT #7 TOP GRILL ASSY(3) ........... #2 BRICK RAILS SET ......VIST.RAILSET ...BLACK PAINT ......ALT4.TGASSYMBK #3 FLAME SHIELD ..........VIST.2115 ...BLACK ENAMEL ..... ALT4.PTGASSYBK #4 DOOR ASSY ......R - ALT4.4920RMBK ...MAJOLICA BROWN ENAMEL . ALT4.PTGASSYBN ...BLACK PAINT ......L - ALT4.4920LMBK ...ANTIQUE WHITE ENAMEL ..

  • Page 19: Firebrick Installation

    Firebrick Installation This package contains 12 full-size fi rebricks, as well as 2 various cut bricks. With the heater in the upright position, install fi rebricks as follows: Install 4 full-size fi rebricks against the rear wall. Install the side fi rebricks, 2 full-size each side. Place 3 full-size and 2 cut bricks on the bottom of the heater.

  • Page 20: Warranty Information

    Warranty Information Pacifi c Energy Limited Lifetime Warranty Wood Products Pacifi c Energy extends the following warranty coverage to the original registered purchaser of the product: LTD Lifetime Coverage (10 years) Limited lifetime coverage is extended to the following components (parts only) porcelain fi nish, glass (glass for thermal breakage only, not impact), plating, fi rebox and baffle.
  • Page 21 080515-24 ALT4 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 22 080515-24 ALT4 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 23: Label

    Label REAR VIEW LABEL LOCATION MUR ADJACENT MUR COTE SIDE WALL ADJACENT WALL COTE SIDE 080515-24 ALT4 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 24 By Pacifi c Energy PACIFIC ENERGY FIREPLACE PRODUCTS LTD. 2975 Allenby Rd., Duncan, B.C. V9L 6V8 For technical support, please contact your retailer. Web site: http://www.pacifi cenergy.net PRINTED IN CANADA...
