1.6 REAR VIEW

1

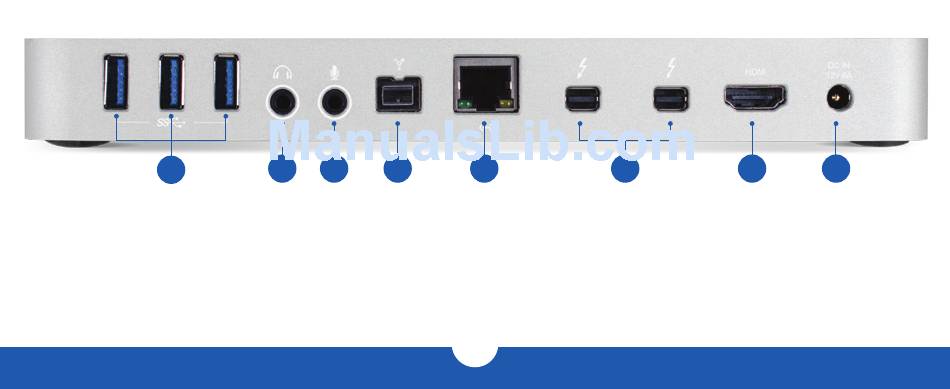

1.6.1 Rear Features

1. (3) USB 3.0 ports — Connect additional USB devices here.
2. Audio Out port — Connect headphones or speakers here.
3. Audio in port — Connect a microphone or other audio input device here.
4. FireWire® 800 (1394b) port — Connect a FireWire device here. You can daisy-chain
additional FireWire devices off of the first FireWire device.
5. Gigabit Ethernet port — Connect an Ethernet cable here to access a wired network.
OWC DIGITAL - THUNDERBOLT 2 DOCK
2 3 4 5 6
6. (2) Thunderbolt 2 ports — Connect one port to the Thunderbolt port on your
computer. Use the other port to connect up to five additional Thunderbolt devices, plus
a display. Supports DisplayPort 1.2 for up to 4K resolution at 60Hz.
7. HDMI port — Connect an HDMI display or television here. Supports HDMI 1.4b for up
to 4K resolution at 30Hz.
8. DC power input — Connect the included power supply here.
3
7 8
