Preset Mode - ProScan PLCD3271B Operating Instructions Manual

PC

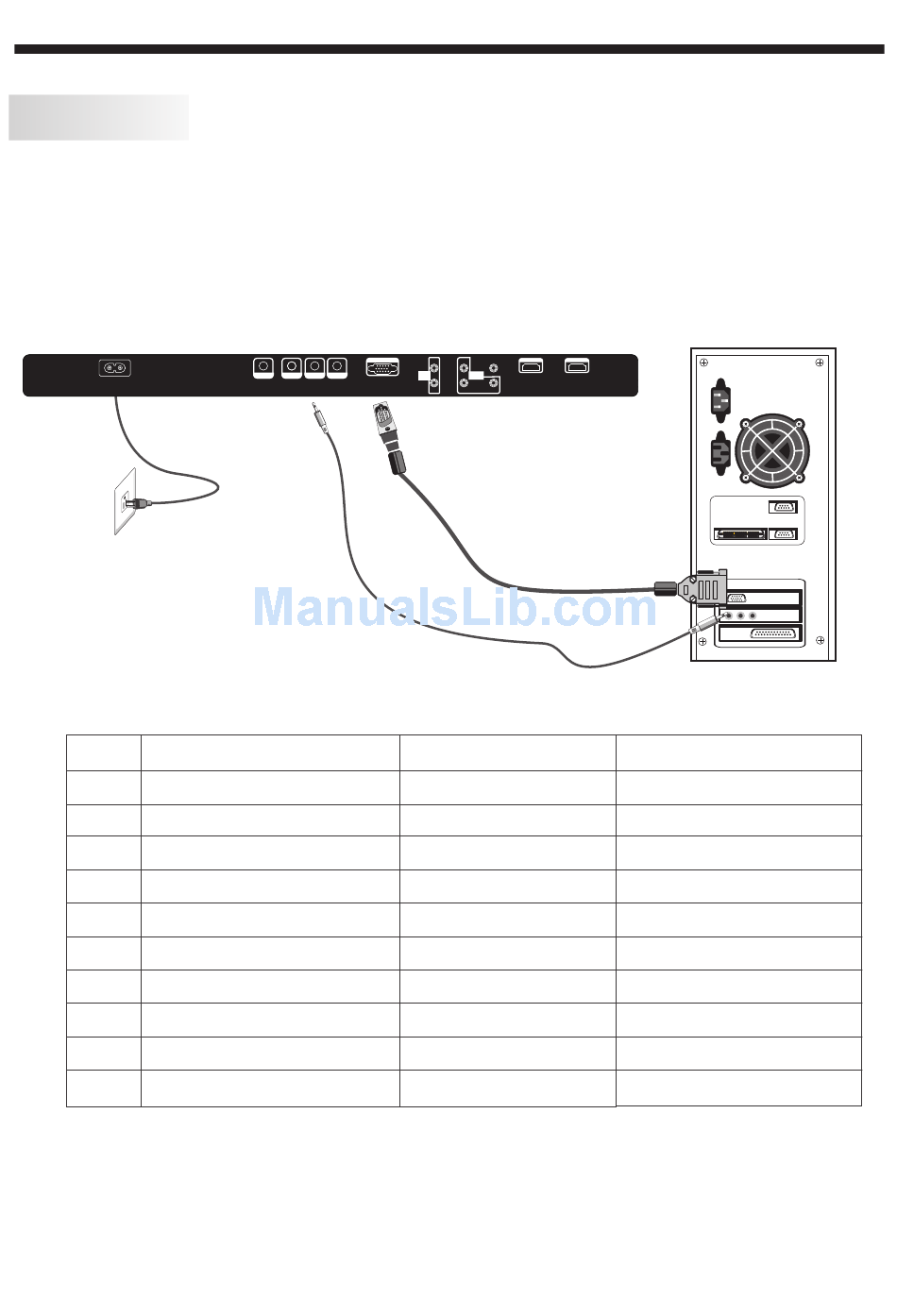

STEPS:
It is recommended that the TV and computer are off before making any of the connections.
1. Connect a VGA and audio cable.
2. Connect the power cord.
3. Turn on the TV and switch to VGA mode.
4. Turn on the PC.
AC INPUT
100-240V~50/60Hz

PRESET MODE

1
2
3
4
5
6
7
8
9
10
PC AUDIO
RF INPUT COAXIAL HEADPHONE
INPUT
RESOLUTION
720*400
640*480
640*480
800*600
800*600
1024*768
1024*768
1024*768
1280*1024
1280*1024
VGA INPUT HDMI2 INPUT
R Y AV1
AUDIO Y Pb Pr
INPUT INPUT
L Pb Pr
V.Freq.(Hz)
70
60
75
60
75
60
70
75
60
75
-8-
INSTALLATION
HDMI1 INPUT
H.Freq.(KHz)
31.47
31.47
37.50
37.88
46.88
48.36
56.48
60.02
63.98
80.00
