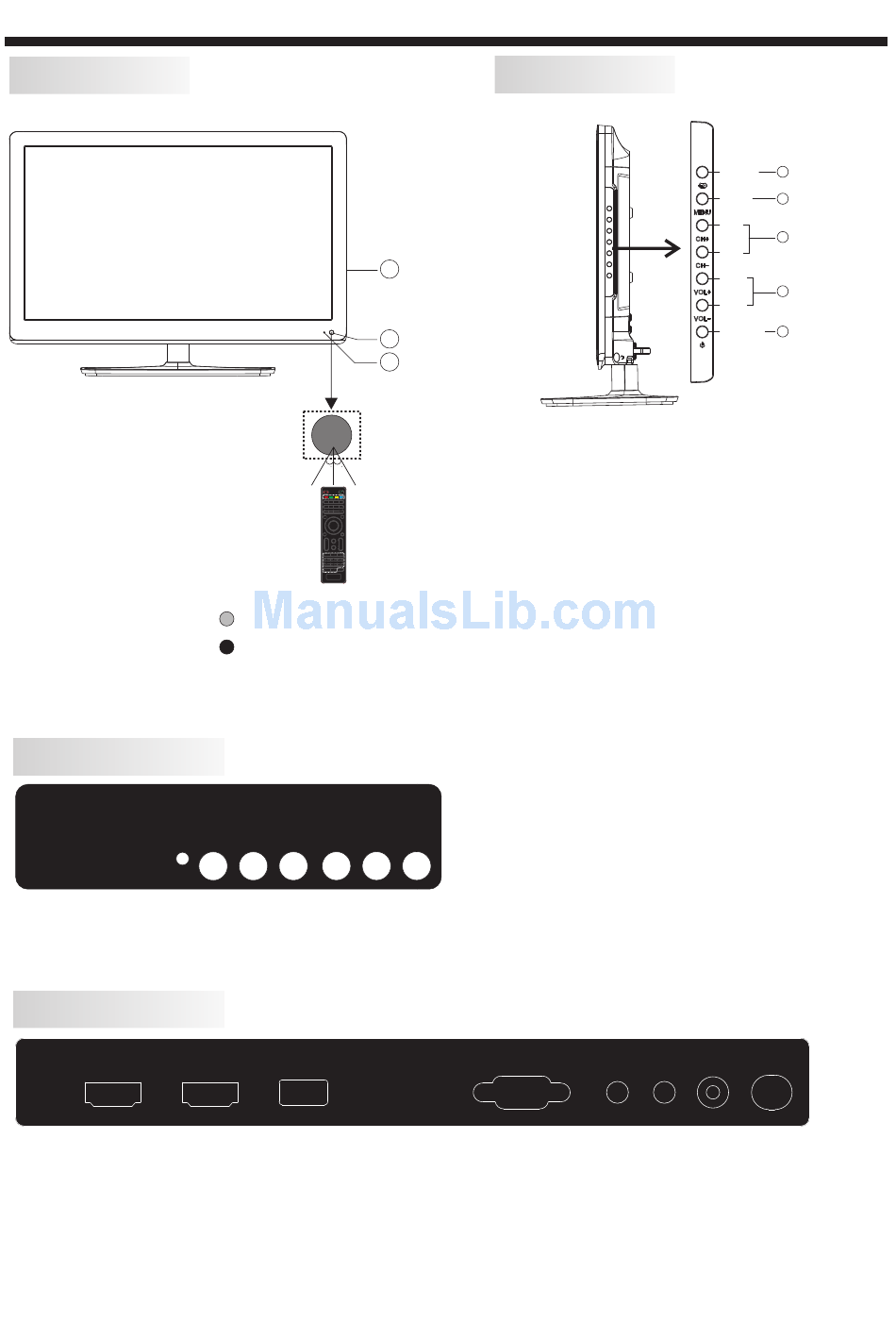

Front panel

1: Remote control sensor.
2: Indicator LED: BLUE
RED
3: Side panel keys
REAR Connections
All the terminals are (from left to right):
VIDEO, AUDIO INPUT, YPbPr INPUT
Note: Video and YPbPr share one audio channel.
SIDE Connections
HDMI1
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
30 30
YPbPr CC MTS VGA
DTV TV AV HDMI
STRENGTH
CH LIST EPG FAV
TV
DISPLAY
S.M
VOL CH
P.M
POWER ON.
STANDBY.
VIDEO L R Y
HDMI2 USB

Panel keys

3
1
2
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
Pb Pr
VGA
-6-

INSTALLATION

SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
PC AUDIO HEADPHONE COAXIAL
1
2
3
4
5
RF
