Summary of Contents for RCA RLED4960-UHD

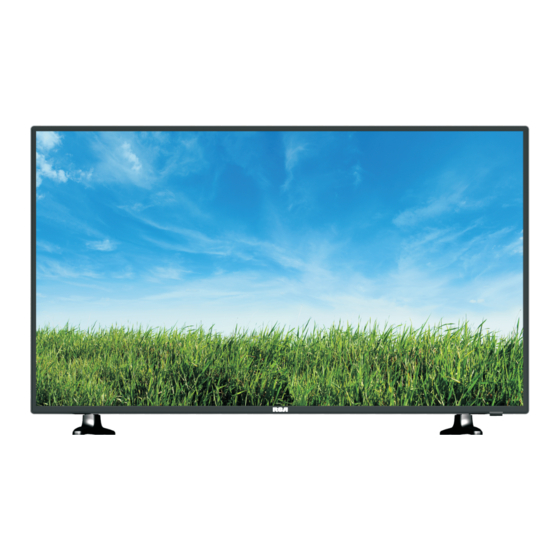

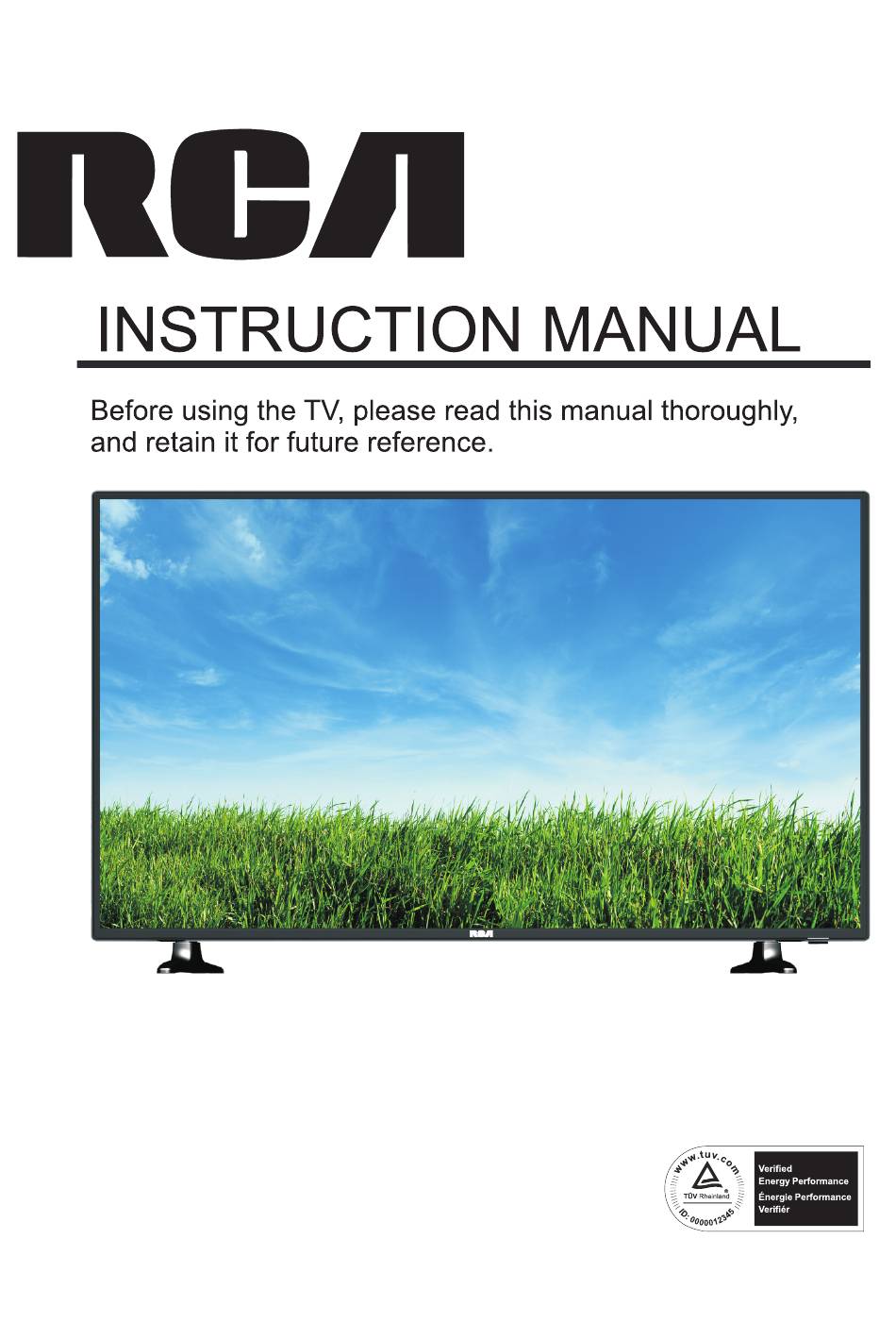

- Page 1 Model:RLED4960-UHD...
-
Page 2: Table Of Contents
English CONTENTS SAFETY PRECAUTION IMPORTANT SAFETY INSTRUCTION ACCESSORIES GETTING STARTED Remote Control CONTROL Front View REFERENCE Back View GUIDE Back View Antenna Connection AV Connection YPbPr Connection HDMI Connection CONNECTIONS Power Cord Connection Optical(SPDIF) Connection WALL MOUNT INSTALLATION Putting The Unit On A Proper Place Source Selection Turning The Unit On For The First Time INITIAL SETUP... - Page 3 CONTENTS DISPLAY Video Formats MODE SPECIFICATION TROUBLE- TV Symptom SHOOTING GUIDE...
-
Page 4: Safety Precaution
SAFETY PRECAUTION CAUTION MARKING WAS LOCATED AT THE REAR PLACEMENT INFORMATION OF THE APPARATUS. • Do not use this unit in places that are extremely hot, cold, dusty or humid. • Do not restrict the airflow of this unit by placing it somewhere with poor airflow, by covering it with a cloth, by placing it on bedding or carpeting. -
Page 5: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTIONS 1)Read these instructions. 12)Use only with the cart, stand, 2)Keep these instructions. tripod, bracket, or table 3)Heed all warnings. specified by the manufacturer, 4)Follow all instructions. or sold with the apparatus. 5)Do not use this apparatus near water. When a cart is used, use caution when 6)Clean only with a dry cloth. -
Page 6: Accessories
ACCESSORIES Please check and identify the supplied accessories. Remote control ......................... Remote control Battery(AAA) ........................Warranty Card ........................ Instruction Manual ......................................x 1 2Base stands and 4 base stand screws ......................Mini Line Out Cable GETTING STARTED USING THE REMOTE CONTROL ·Point the remote control at the remote sensor located on the unit. -
Page 7: Control Reference Guide
CONTROL REFERENCE GUIDE 1.STANDBY REMOTE CONTROL To switch on the TV or make the TV into standby mode. 2.MUTE Press this button to mute or restore sound. 3.0-9 Allows you to change the channel of the TV. Switches back and forth between the current and previous channels. - Page 8 CONTROL REFERENCE GUIDE FRONT VIEW 1.Color Screen 2.Remote Sensor Do not block this sensor or the remote control will not work. 3.Standby Indicator Indicates whether the unit is ON or in STANDBY (OFF) mode. Light in red: The unit is in STANDBY. Light in blue :The unit is turned ON.
- Page 9 CONTROL REFERENCE GUIDE BACK VIEW VOL+ VOL- MENU SOURCE STANDBY...
-
Page 10: Connections
CONNECTIONS CONNECTING A TV ANTENNA / CABLE / SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system NOTE For receiving over-the-air TV broadcasts, we recommend that you use an external fixed antenna. - Page 11 CONNECTIONS CONNECTING A HIGH-DEFINITION (HD) SOURCE USING COMPONENT CONNECTION High-Definition (HD) Devices with component video output must be connected to the Y PbPr input. Connect the component video cable and audio cable (not included) as shown. Make sure you connect the component video cable and audio cable from the other equipment （COMPONENT OUT and AUDIO OUT）to the unit COMPONENT IN.
- Page 12 CONNECTIONS NOTE • Insert the power plug fully into the socket outlet If the power plug is loose it could generate heat and cause fire • Ensure that the power plug is easily accessible. • Ensure the earth pin on the power plug is securely connected to prevent electrical shock.
- Page 13 CONNECTIONS Connection to a Home Theater Audio System For BEST audio performance How To Setup Digital Output Connecting to a Home Theater System Press the MENU button on the remote control Press the right ► arrow button to select sound Dolby Digital can deliver optimal 2 channel stereo or surround sound with five discrete Press the down ▼...
-
Page 14: Wall Mount Installation
WALL MOUNT INSTALLATION REMOVING THE BASE STAND INSTALLING : The LED D isplay i s v ery f ragile and m ust b e p rotected a t a ll t imes w hen r emoving t he b ase WARNING Stand Be sure that no hard or sharp object or anything that could scratch or damage the LED display comes into... -
Page 15: Initial Setup
INITIAL SETUP PUTTING THE UNIT ON A PROPER PLACE When you turn on your television set for the first time, be sure to place it on a solid stable surface. To avoid danger, do not expose the TV to water, or a heat source (e.g. - Page 16 INITIAL SETUP HOME MODE SELECTION TV Location Home Mode Time Zone Pacific Daylight Saving Time 12-hour Time Format Go to next step Select the time zone & Daylight saving time Please select your preferred mode RETAIL MODE SELECTION Are you sure you select retail mode? TV Location Retail Mode Home Mode default setting are recommended for...
-
Page 17: Tv Setup
TV SETUP CHANNEL MENU Press MENU button to display the main menu. Press ◄ / ► button to select CHANNEL in the main menu,it will highlight the first option. Setup Picture Sound Time LOCK CHANNEL Air /Cable Auto Scan Favorite Channel List Show Hide Channel Number... - Page 18 TV SETUP PICTURE MENU Press MENU button to display the main menu. Press ◄ / ► button to select PICTURE in the main menu,it will highlight the first option. Setup Picture Sound Time Picture Mode Standard Brightness Contrast Color Tint Sharpness Normal Color Temperature...
- Page 19 TV SETUP SOUND MENU Press MENU button to display the main menu. Press ◄ / ►button to select SOUND in the main menu,it will highlight the first option. Setup Picture Sound Time Equalizer Settings Stereo Audio Language English Digital Audio Output Surround Sound Move Select...
- Page 20 TV SETUP TIME MENU Press MENU button to display the main menu. Press ◄ / ►button to select TIME in the main menu,it will highlight the first option. Setup Picture Sound Time Sleep Timer Time Zone Pacific Daylight Saving Time Time Format 12-hour Auto Clock...
- Page 21 TV SETUP SETUP MENU Press MENU button to display the main menu. Press ◄ / ► button to select SETUP in the main menu,it will highlight the first option. Setup Setup Picture Picture Sound Audio Time Time Lock Channel English English Menu Language Menu Language...
- Page 22 TV SETUP LOCK MENU Press MENU button to display the main menu. Press ◄ / ► button to select LOCK in the main menu,it will highlight the first option. Press “0000” for the lock password. Move Select Return CHANGE PASSWORD This option allows you to change the LOCK menu password.
- Page 23 DISPLAY MODE VIDEO FORMATS SUPPORTED COMPONENT / HDMI INPUT MODE Horizontal Vertical Resolution Scanning Frequency Scanning Frequency Format (Hz) 59. 94 480 i 31. 47 59. 94 15. 734 480 p 720 p 37. 5 1280 1280 720 p 1080 i 31.
- Page 24 75 ohm external terminal Video 480i 480p 720p 1080i, 1080p,4K2K. HDMI Input Audio Two channel linear PCM 32 44 1 and 48kHz 16 20 and 24 bits 1.0 Vp-p, 75ohms RCA Composite Video Input Y: 1.0 Vp-p, 75ohms, 0.3V negative sync Input / Component Y Pb Pr Input Pb: 0.7Vp-p, 75ohms...
- Page 25 TROUBLESHOOTING GUIDE SYMPTOM CAUSE AND REMEDY Bad Picture (snow, • Check the location of the antenna and adjust it if necessary. multiple images • Make sure the antenna cable is firmly connected. distortion,blurry) • Make sure all input cables are firmly connected. No sound.
