Life Fitness Treadmill T3.5 Parts Manual
Arctic silver treadmill
Hide thumbs
Also See for Treadmill T3.5:
- User manual (57 pages) ,
- Assembly instructions manual (8 pages)
Related Manuals for Life Fitness Treadmill T3.5
Summary of Contents for Life Fitness Treadmill T3.5

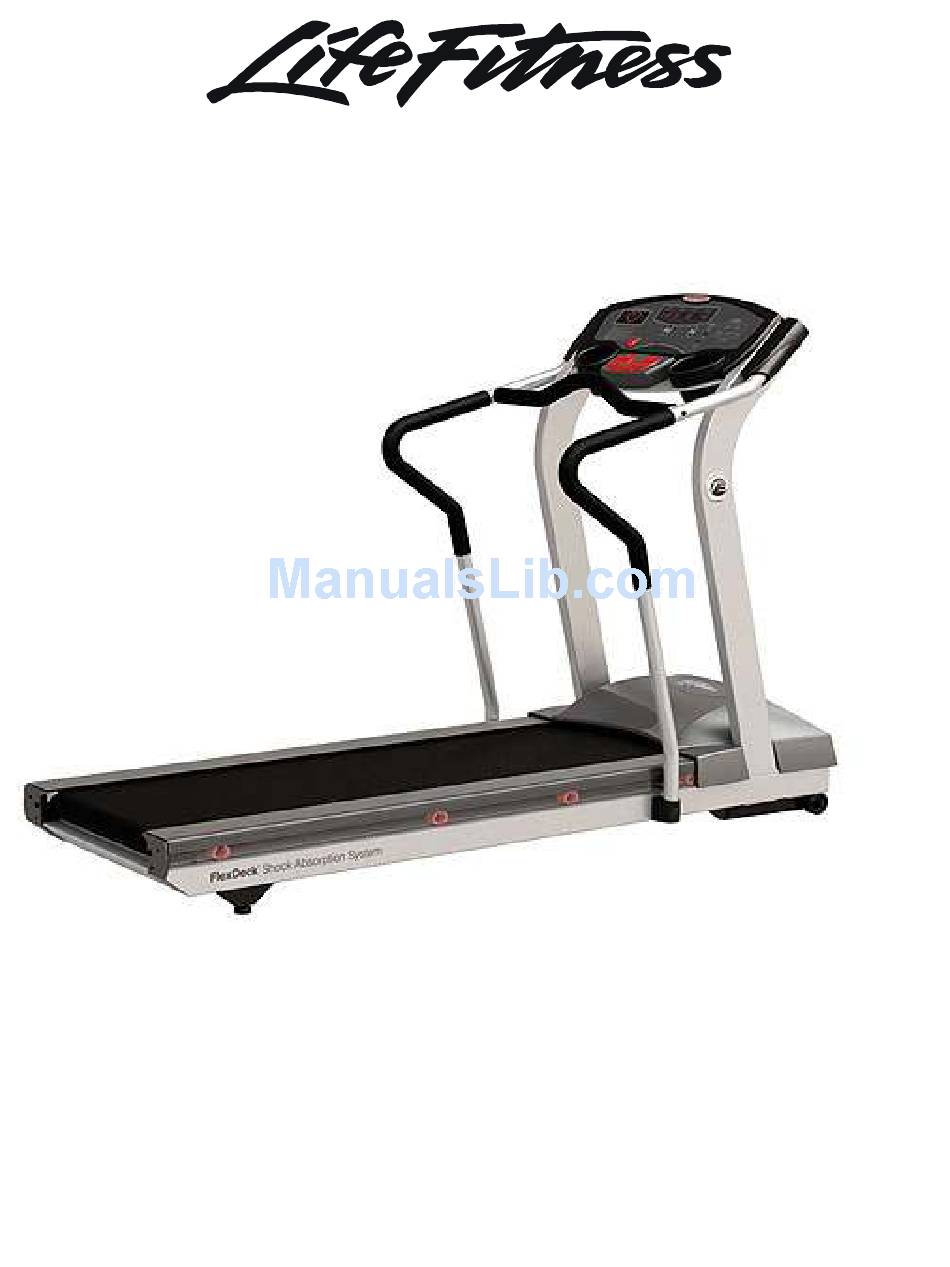

- Page 1 Arctic Silver T3.5 Treadmill Customer Support Services PARTS MANUAL rev 03 Mar 2008...
- Page 2 ARCTIC SILVER T3.5 MODEL # MODEL DESCRIPTION T35-0000-01 T35 TREADMILL ENG/ENG 120/60 DOM T35-0101-01 T35 TREADMILL.ENG/MET.230/50.CONT T35-0102-01 T35 TREADMILL.ENG/MET.230/50.UK T35-0104-01 T35 TREADMILL.ENG/MET.240.AUST T35-0201-01 T35 TREADMILL.GER/MET.230/50.CONT MODEL # MODEL DESCRIPTION T35-0000-01 T35 TREADMILL ENG/ENG 120/60 DOM T35-0101-01 T35 TREADMILL.ENG/MET.230/50.CONT T35-0102-01 T35 TREADMILL.ENG/MET.230/50.UK T35-0104-01 T35 TREADMILL.ENG/MET.240.AUST...
- Page 3 ARCTIC SILVER T3.5 Transmitter, Polar HR 6844101 Strap, Heart Rate LF 6844301 PAD, DUAL LOCK 400 1" X 1" ( 2 ) 6839901 CAB E ASSY, JACK/ R 6 44401 RECEIVER, POLAR HR TUBE, 6844201 1 X 1-1/2 11GA X 1-1/2 ARCTIC SILVER 6944812 ASSY, CONSOLE PAN...
- Page 4 ARCTIC SILVER T3.5 ASSY, CROSS TUBE 7966101 ASSY, UPRIGHT LEFT T35 7966701 GROMMET (2) 3209101 PLUG, 3/8 HOLE 3209401 LABEL, EXCESS CABLE WARNING 6907201 BUG, T35 MODEL 7966601 CAP, END LEFT 20", ARCTIC SILVER 7010812 10 X 12 TRX PAN 25 ST BZ (2) 3206601 5/16-18X3-1/4 HXZ...
- Page 5 ARCTIC SILVER T3.5 EXTRUSION, 20 X 60 BELT (2) 7004501 3/8-16 X 2-1/2 UNS HEX FHB G2 ZN (2) LEVELER, LEG 3/8- 3102903 16 X 1.94 (2) 3231701 WSH,.377 X .875 X .062 FLT NY (2) 3227202 NUT, 3/8-16 HEX (2) 3102701 SPACER,NYLON 3/8ID X5/8OD X1/2 (2) 3221901...
- Page 6 ARCTIC SILVER T3.5 ASSY, MOTOR SHROUD 7963201 DISK, DUAL-LOCK 13/16 DIA (2) 6839801 6-20 X 8 PHL PAN B ST ZN (2) 3223501 LABEL, MOTOR COVER 7963301 BELT, WALKING 20 X 60, PLS 7758501 DECK SCREWS (4) 1/4-20 X1-1/4 HXS FLT CS ST BO 3206301 T3.5-0XXX-01 ASSY, DECK 20 X 60...
- Page 7 ARCTIC SILVER T3.5 3/8-16 X 3-1/4 UNS HEX FHB G5 ZN (2) 3223310 DOMESTIC LIFT MOTOR ACTUATOR, 115 VOLT 6961101 INTERNATIONAL LIFT MOTOR ACTUATOR, 230 VOLT 6961102 PIN, CLEVIS 3/8 DIA X 1.5 3204501 WASHER, FLAT 3/8" SAE ST ZN 3102514 SPRING, .60 DIA X .045 X .50 3227501...
-
Page 8: Model Description
CABLE ASSY, JACK/HR S-KIT, OPTO SENSOR & CABLE CABLE ASSY, PWR CONTROL CABLE, CONSOLE FILTER, LINE 10A CABLE ASSY, FILTER TO PCB CABLE ASSY, LINE FILTER T35-0000-01 T35-0101-01 T35 TREADMILL T35 TREADMILL ENG/ENG 120/60 ENG/MET 230/50 CONT 7420601 7420801 3206901 3206901... - Page 9 INSIDE OF 7028201 - HDWE ASSY, BAG 2/2 T35 Item Description 7127401 COVER, UPPER 7127201 SPACER, UPPER 7127101 SPACER, BOTTOM 6841301 ASSY, SAFETY KEY T35-0000-01 T35-0101-01 T35 TREADMILL T35 TREADMILL ENG/ENG 120/60 ENG/MET 230/50 CONT 7965601 7965601 7965201 7965201 7225801...
