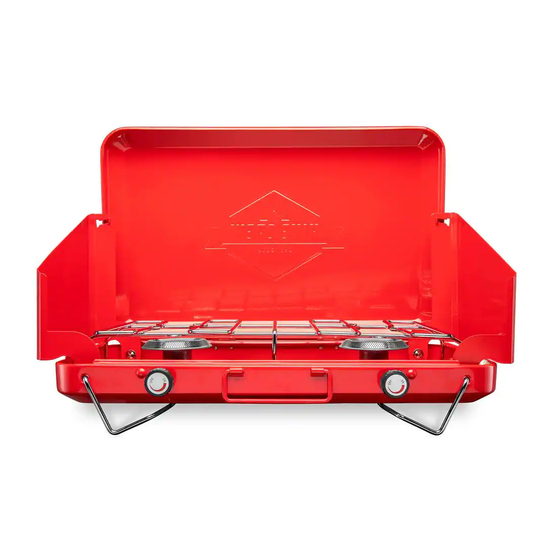

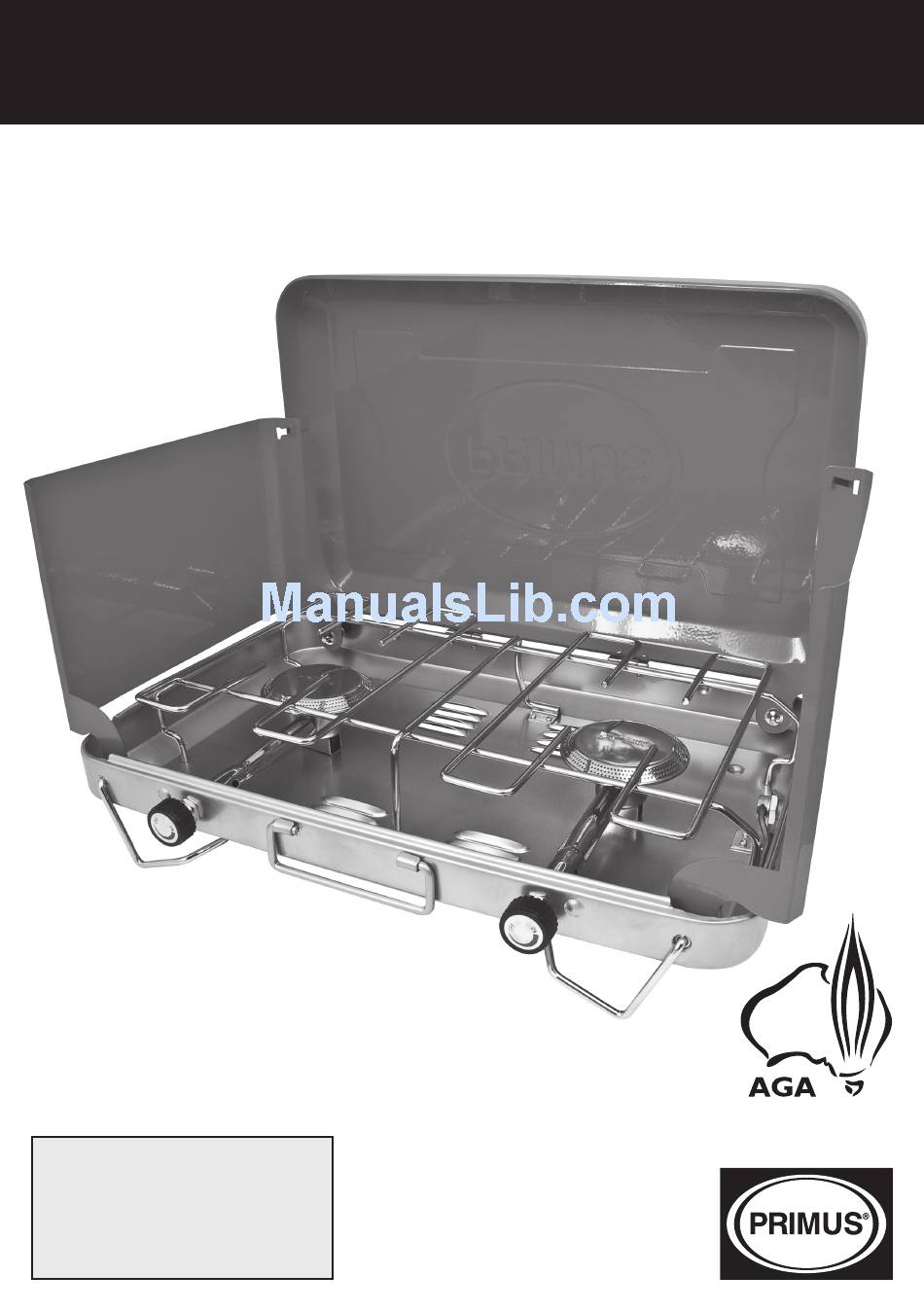

2 BURNER LP GAS STOVE
OPERATING INSTRUCTIONS
Part No. 509012
IMPORTANT
Read these instructions for use
carefully. Familiarise yourself with
the appliance before connecting
it to it's gas container. Keep these
instructions for future reference.
Distributed by
PRIMUS AUSTRALIA PTY LTD
AGA Logo created from high res .jpeg supplie
Bundoora Victoria 3083
www.primusaustralia.com.au
CERT: 4411
Advertisement
Table of Contents
Related Manuals for Primus 509012
Summary of Contents for Primus 509012
-
Page 1: Operating Instructions
2 BURNER LP GAS STOVE OPERATING INSTRUCTIONS Part No. 509012 CERT: 4411 IMPORTANT Read these instructions for use carefully. Familiarise yourself with Distributed by the appliance before connecting PRIMUS AUSTRALIA PTY LTD AGA Logo created from high res .jpeg supplie it to it’s gas container. -
Page 2: General Warnings
GENERAL WARNINGS IMPORTANT • This appliance shall only be connected • Keep away from children at all times. to cylinder with a 3/8” LH BSP gas cylinder • Surfaces of the appliance will become hot during valve certified to AS2469 standards. operation please take care when handling or This appliance is designed for outdoor use only moving the appliance. -
Page 3: Operating The Appliance
OPERATING THE APPLIANCE 1. Gas control 2. Burners 3. Cylinder connection 4. Stove connection 5. Hose 6. Wings 1.CONNECTION 3. Attach the other Your stove is designed to connect directly on to end of the hose to a 3/8” LH BSP camping gas cylinder using the the gas cylinder, specially designed LP Gas hose supplied with tightening using a... -
Page 4: Lighting Burner
2.LIGHTING BURNER 4. TURNING THE APPLIANCE OFF 1. Check that the If the appliance is no longer to be used and to gas control is reduce the risk of blocked gas jets caused by shut off, then turn excess gas being left in the hose, all remaining the gas cylinder gas must be expelled from the hose assembly. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS This appliance must only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage is rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used should comply with one of the following: (A) An enclosure with walls on all sides, but with no overhead cover. -
Page 6: Warranty
TECHNICAL DETAILS & SPARE PARTS Consumption Gas Jet Code 509012 Inlet Pressure: Cylinder Pressure Medium Burner: 0.15mm Description 2 Burner LP Gas Stove Medium Burner: 136g/hr Large Burner: 0.18mm Size 464 x 289 x 82mm 6.8Mj/hr Weight 4.3kg Large Burner: 180g/hr A selection of spare parts &...
