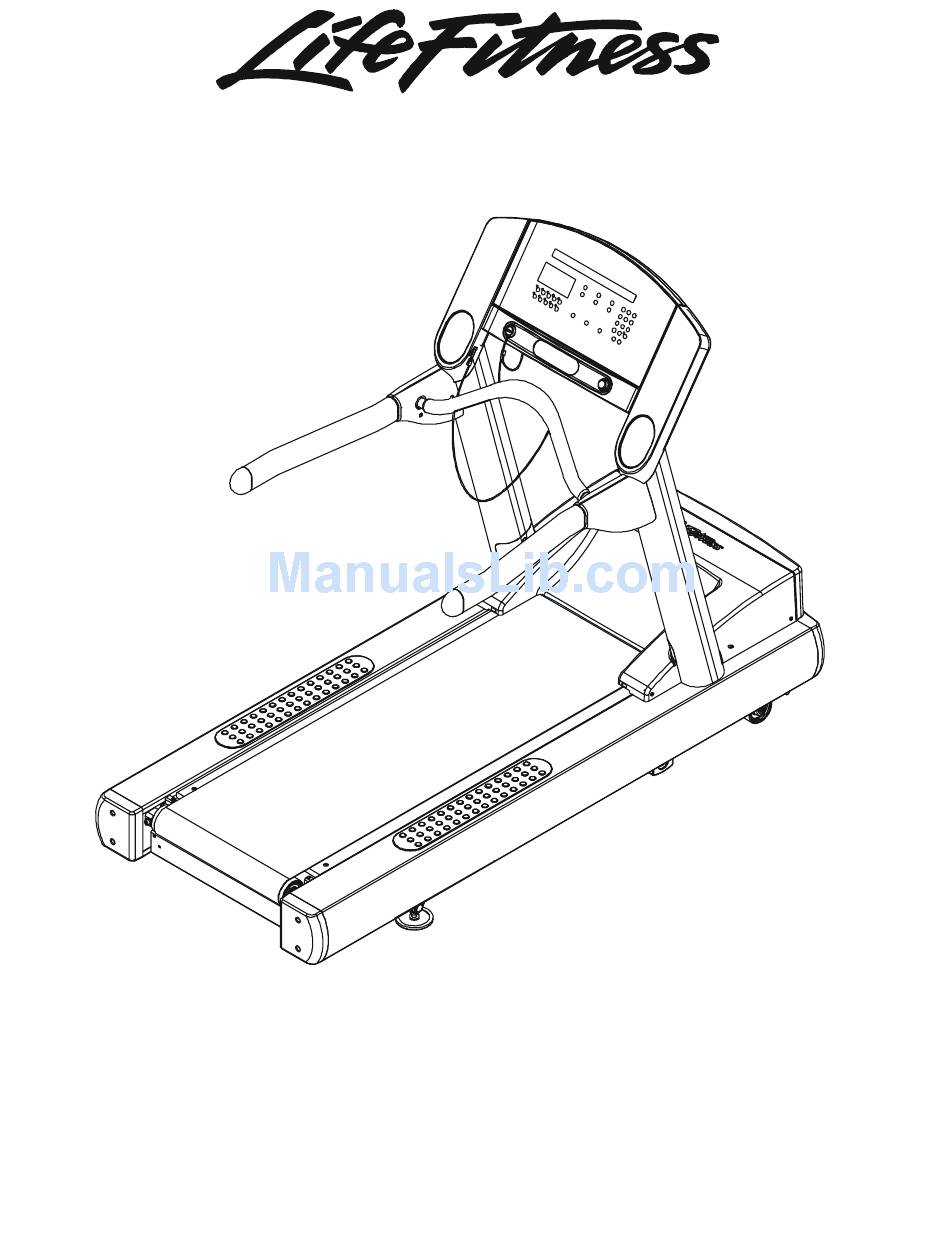

- Page 1 Arctic Silver 93TW Treadmill Customer Support Services PARTS MANUAL rev 03 Jul 2008...
- Page 2 ARCTIC SILVER 93TW REFERENCES OPERATION MANUAL SERVICE MANUAL HARDWARE BAG ACCESS-PLATE ASSY. ASSEMBLY INCLUDES: 1) CONNECTOR PLATE 2) F TYPE CONNECTOR TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN INSTALLATION VIDEO SERVICE VIDEO NOTE: ADDING THE BOLT-ON LCD SCREEN TO THE 93TW-XXXX-03 MAKES THE UNIT A 93TER-XXXX-03.
-
Page 3: Table Of Contents
ARCTIC SILVER 93TW 93TW-0XXX-03 CONTENTS S/N AWJ100000 and up Page REAR ENDCAPS AND CUP HOLDERS ...4 SCUFF PAD, TINSEL AND FRAME TAG BOARD ...5 CONSOLE AND RELATED COMPONENTS...6 UPRIGHTS, HAND RAILS AND ERGO BAR ...7 MOTOR COVER, FRONT COVER AND ENDCAPS ...8 BELT, DECK AND REAR ROLLER...9... -
Page 4: Rear Endcaps And Cup Holders
ARCTIC SILVER 93TW Rear End Caps and Cup Holders Cup Holder, LT AK58-00247-0002 Rear End Cap 0K58-01268-0000 Screws (4) 0017-00101-1772 Rear End Cap 0K58-01268-0000 93TW-0XXX-03 S/N AWJ100000 and up Cup Holder, RT AK58-00247-0001... -
Page 5: Scuff Pad, Tinsel And Frame Tag Board
ARCTIC SILVER 93TW Scuff Pad, Tinsel and Frame Tag Bd. Anti-Static Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Anti-Scuff Pad 0K58-01376-0000 (2) 93TW-0XXX-03 S/N AWJ100000 and up Frame Tag PCB B084-92187-D000... -
Page 6: Console And Related Components
ARCTIC SILVER 93TW Console and Related Components PCB Mounting Screw (8) 0017-00101-1275 PCB Assembly A084-92184-A004 See Table Magnet Disc 0K40-01070-0000 See Table Tether Stop Assy AK58-00246-0000 CD Tray, Rubber Pad 0K58-01359-0000 Console Assembly Overlay/Bezel/Switch Assy. AK58-00439-0001 AK58-00204-0001 AK58-00439-0002 AK58-00204-0001 AK58-00439-0003... -
Page 7: Uprights, Handrails And Ergo Bar
ARCTIC SILVER 93TW Uprights, Handrails and Ergo Bar Handrail Mounting Screw (4) Console Mounting 0017-00101-1774 Screw (4) 0017-00101-1773 Top LT Handrail Boot 0K58-01303-0002 Upright, Plug (2) 0K58-01305-0002 Upright, LT AK58-00310-0004 Upright Tube Cap (2) 0K58-01302-0000 Upright Tube Cap Screw (2) -
Page 8: Motor Cover, Front Cover And Front End Caps
ARCTIC SILVER 93TW Motor Cover, Front Cover and Front End Caps Motor Cover Screws (4) 0017-00101-1772 Felt Strip - 28” 0017-00081-0294 Front Cover 0K58-01266-0000 Screws (4) 0017-00101-1771 93TW-0XXX-03 S/N AWJ100000 and up Motor Shroud Assy. AK58-00398-0000 Flex Deck Decals(2) 0K58-01365-0000... -
Page 9: Belt, Deck And Rear Roller
ARCTIC SILVER 93TW Belt, Deck and Rear Roller Striding Belt 0K58-01400-0000 Deck Mounting Screws (4) 0017-00101-1775 Deck 0K58-01091-0001 TECSPAK Mounting Screw (8) 0017-00101-1652 TECSPAK Spring (8) 0K40-01026-0002 TECSPAK Tinnerman Clip (8) 0017-00103-0198 Washer (8) 0017-00104-0101 Grommet (2) 0017-00042-1147 Screw 0017-00101-1776... -
Page 10: Lift Frame And Lift Motor
ARCTIC SILVER 93TW Lift Frame and Lift Motor IEC Receptacle 0017-00003-0949 Retainer Bracket w/Screw 0017-00042-1145 Frame Screws 0017-00101-1723 Lift Frame End Cap 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel 0K58-01071-0000 Phillips Screw 0017-00101-1612 Washer 0017-00104-0189 Hex Screw (2) 0017-00101-1777 Flat Washer (2) -
Page 11: Wax/Lift Assembly
ARCTIC SILVER 93TW Wax/Lift Assembly–AK58-00243-0000 Pin Collar Spacer (3) 0017-00042-1070 Wax Lift Mounting Screw (3) 0017-00101-1641 Wax/Lift PCB A084-92261-A001 Spacer (3) Locking Nut (3) 0017-00042-1149 0017-00103-0052 Mounting Bracket 0K58-01316-0000 93TW-0XXX-03 S/N AWJ100000 and up Motor Capacitor PCB Mounting Screw (4) -
Page 12: Motor Controller Assembly
ARCTIC SILVER 93TW Motor Controller Assembly AK60-00171-0000 (100-120v) W/O FERRITE AK60-00171-0001 (200-240v) W/O FERRITE AK60-00171-0002 (100-120v) WITH FERRITE AK60-00171-0003 (200-240v) WITH FERRITE 93TW-0XXX-03 S/N AWJ100000 and up... -
Page 13: Drive Motor Assembly
ARCTIC SILVER 93TW Drive Motor Assembly Poly-V Pulley 0K58-01057-0001 Locking Nut (4) 0017-00103-0027 Washer (4) 0017-00104-0409 Insulating Shoulder Washer (4) 0K58-01255-0000 Drive Motor Assembly Number AK58-00172-0000 AK58-00172-0002 Motor w/Caution Label AK58-00171-0000 (SN AWJ100000 - AWJ100020) AK58-00171-0001 (SN AWJ100021 - AWJ100...) -
Page 14: Idler Arm Assembly And Static Brush
ARCTIC SILVER 93TW Idler Arm Assembly and Static Brush Idler Arm Assembly AK58-00053-0002 Anti Static Brush 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Grommet 0017-00042-0326 Drive Belt 0K58-01114-0000 Idler Pulley 0K26-01731-0000 Threaded Idler Shaft 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Motor Pulley 0K58-01057-0001... -
Page 15: Leg Leveler Assembly
ARCTIC SILVER 93TW Leveler Assembly – AK58-00370-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1253 93TW-0XXX-03 S/N AWJ100000 and up Bracket Leveler 0K58-01083-0000 Pivot Pin 0K58-01098-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000... -
Page 16: Front Roller Assembly
ARCTIC SILVER 93TW Front Roller Assy.–AK58-00066-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 3.5” Front Roller 0K58-01001-0001 Flat Washer 0017-00104-0330 93TW-0XXX-03 S/N AWJ100000 and up... -
Page 17: Power Components Schematic
ARCTIC SILVER 93TW Power Components Schematic Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v 0017-00003-0974 Domestic 0017-00003-0948 12’ 220v 0017-00003-0915 RT Angle Plug 0017-00003-0781 220v/60Hz 0017-00003-0696 Continental 0017-00003-0890 240v/50Hz UK Xformer Bracket Assembly (foreign units only) AK58-00210-0000 MOV/Filter Cable Assy. -
Page 18: Cables
ARCTIC SILVER 93TW Wax/Lift Power Supply 120V 240V 220/230V 200V 100V LI N E CHART *CLEAR *BLACK *BLACK LEFT *CLEAR *BLACK *RED *BLACK *RED POLAR *WHITE *WHI *WHI REED SENSE REED BLACK BLACK +12VDC +12VDC WHITE BUS_REQ BUS_REQ GRAY GRAY...
