International Electronics 212iL Installation Manual

(illuminated luxury) keypad/ single unit keypad- control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
212iL
1
6060720 Rev. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 212iL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for International Electronics 212iL

Summary of Contents for International Electronics 212iL

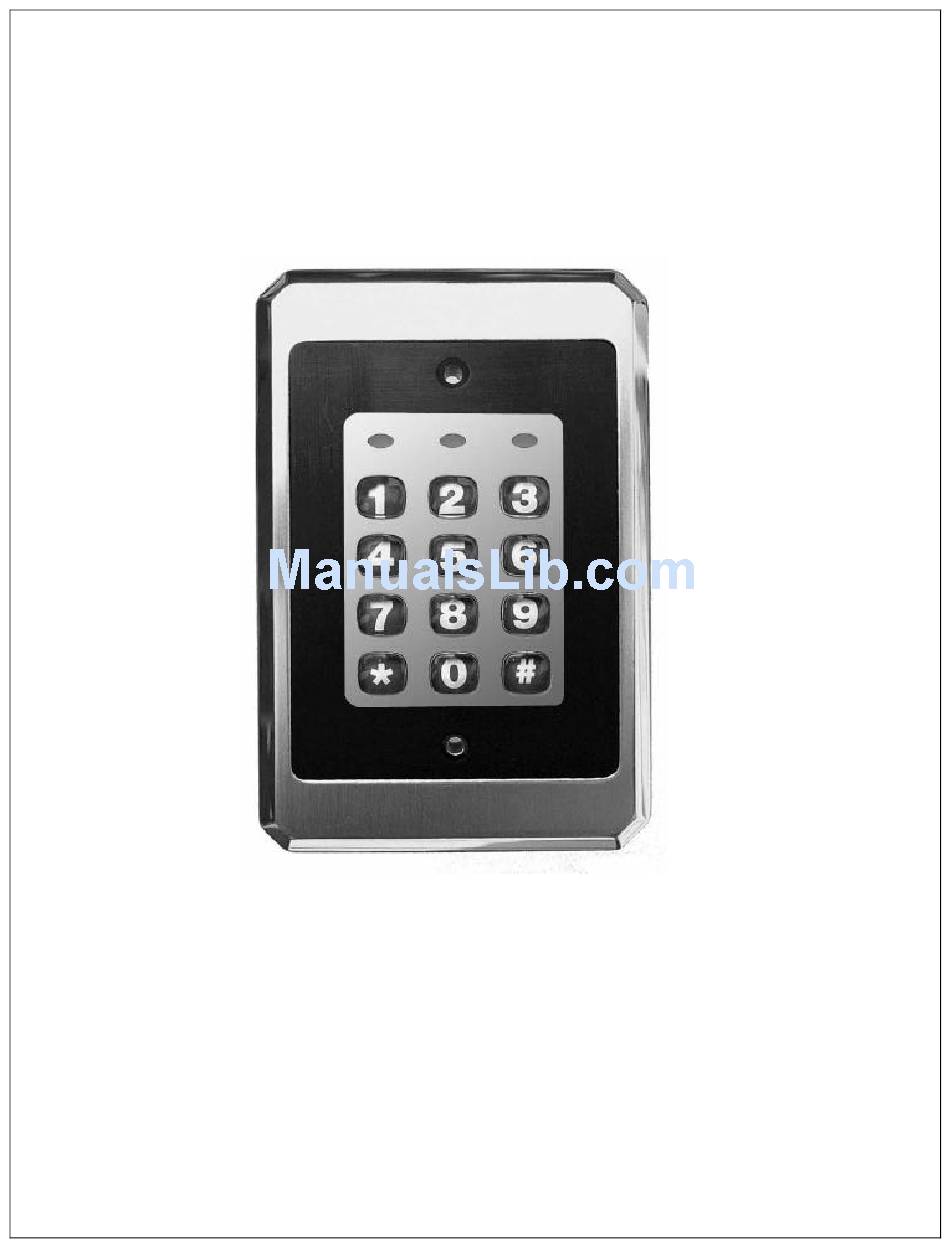

  • Page 1 212iL 6060720 Rev. 1.1...

  • Page 2: Section 1: Unpacking And Checking The Packing List

    Section 2: Mounting the 212iL 212iL Dimensions: 3 3/8" x 5 1/8" x 5/8") 1. Select the appropriate location for the 212iL. Mounting height is the same for an electrical switch, 48" on center. Be sure that the 212iL is mounted indoors ONLY! 48"...

  • Page 3: Section 3: Wiring

    If you are sharing the same DC voltage power supply with the 212iL and the Electric Strike, (that is to say if you have only one power supply for both the 212iL and the lock device), you need to run voltage through the common (Blue) wire on the 6 conductor wire harness of the 212iL.
  • Page 4 212iL is equipped with a Form C, Dry contact relay on board. This means that there is no voltage running through the relay. (Until you supply the common leg of the relay with voltage). Step 1: Splice together the Blue Relay Common wire from the 212iL harness to the Red wire on the 212iL harness.

  • Page 5: Section 4: Power Up

    Upon power up, the 212iL will cycle through the LED's from left to right twice to indicate proper keypad operation. (If the LED's continue to flash, refer to the trouble shooting section of this manual). The Backlighting will now be on and will dim 15 seconds after the last keypress or 5 seconds after the programming mode has been exited.

  • Page 6: Section 5: Programming The 212Il

    The 212iL supports 120 user codes that will operate the keypad and energize the main relay. A user code is stored in the memory of the 212iL with an individual user location, and may be 1 to 6 digits in length.
  • Page 7 Step 5: Changing the 212iL Feedback Options. The 212iL has two key-press feed back options that you may choose from. One is an audio feed back. This will activate the on board sounder every time that a key is pressed. The other is a visual feed back.
  • Page 8 If the Master code is not working or has been forgotten, power down the 212iL and connect the White with Black trace wire to the Red wire and power up the 212iL. This will put the 212iL into program mode indicated by the flashing yellow LED. Next enter 46#00000#00000# * * to default the keypad.
  • Page 9 Programming Options Chart If the pre-programmed default values must be changed Or additional functions are desired, the following options may be programmed. 1. Enter programming mode Press 99 # (master code) Changing the master code Press (new code) (repeat code) NOTE 1 Change the main relay activation time Press...

  • Page 10: Section 6: Trouble Shooting

    Section 6: Trouble Shooting. Refer to this section if the 212iL is not responding correctly to the operation outlined in this instruction manual. The 212iL has been designed to operate with 12-24 VDC only. Verify that the voltage powering this keypad is within these parameters.
  • Page 11 International Electronics Incorporated (IEI) warrants its products to be free from defects in material and workmanship, when they have been installed in accordance with the manufacturer’s instructions, and have not been modified or tampered with. IEI does not assume any responsibility for damage or injury to person or property due to improper care, storage handling, abuse, misuse, normal wear and tear, or an act of God.
