24 volts. The use of solid state circuits in the Beta D-50 has kept its weight to a mere 30 lbs. (14 kg). Consequently the unit is easy to move around to accommodate flexibility in the work environment.
Page 4

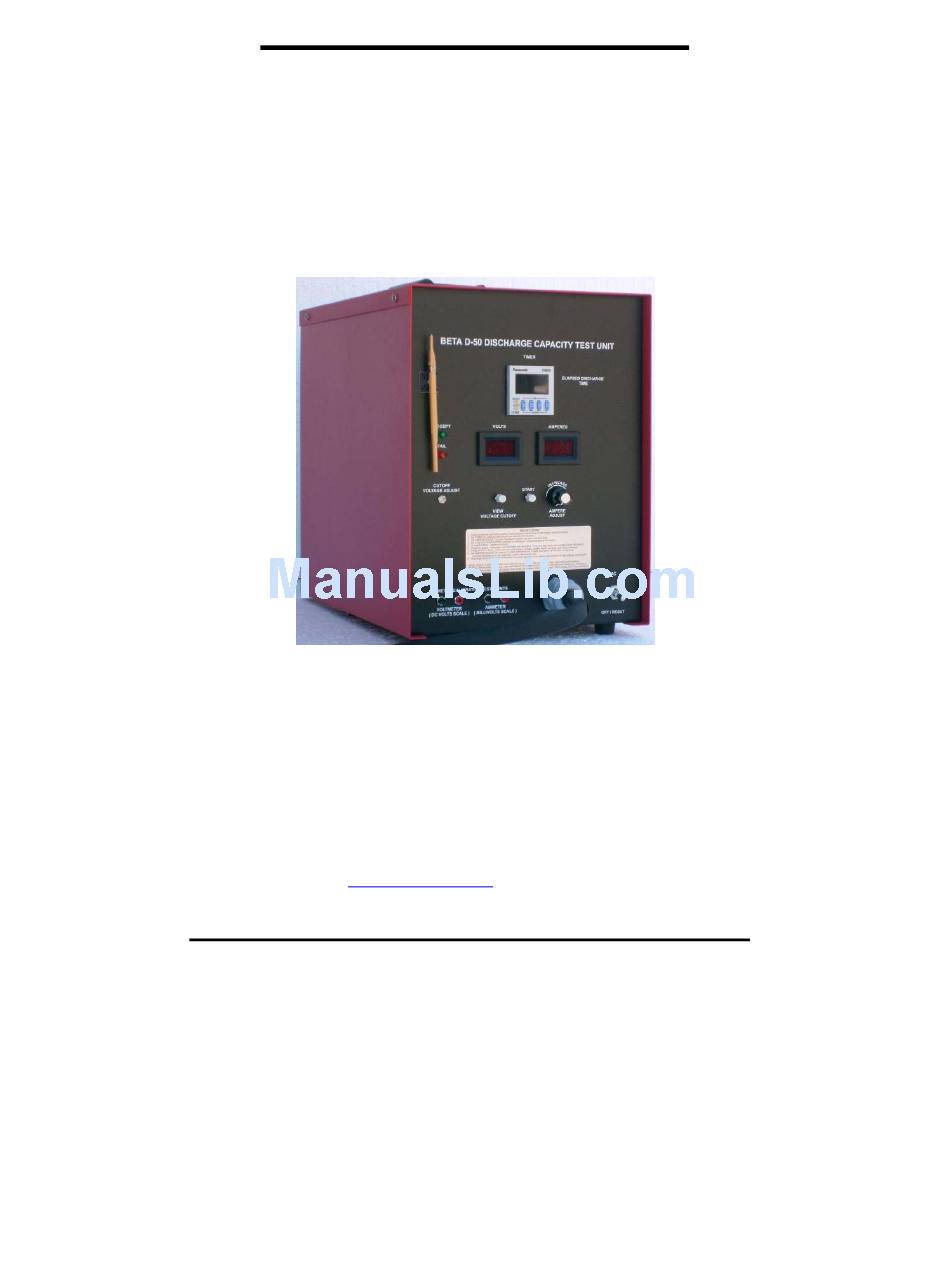

Pressed to start test TEST PORTS Provides output for %$77(5< voltmeter and ' , 6& + $5* ( ammeter calibration & $%/( Figure 1-1. Front view of Beta D-50 Page 2 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 5
SELECT DIAL Selects mains input COOLING voltage (115 or 230 FANS volts) AC LINE FUSE protects line and equipment AC MAINS CABLE Figure 1-2. Rear view of Beta D-50 Page 3 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
2. INSTALLATION 2.1 LINE VOLTAGE The Beta D-50 can operate on either 115 or 230 Volts AC. The desired line voltage can be selected on the rear of the unit. CAUTION: Ensure that the unit is set for the appropriate line voltage before operation.
2. INSTALLATION 2.3 SPACE REQUIREMENTS The Beta D-50 system occupies 15" x 10 ¼" (381 mm x 260 mm) of table top space. Place the unit on a sturdy workbench in a well-ventilated battery servicing area with the battery adjacent to it.
This section gives an overview of how to quickly get started capacity discharge testing a battery using your Beta D-50. If there is uncertainty at any point on how to proceed, please refer to the more detailed instructions in the section 4.
Page 9
LED and “OP” on timer is off.) without the cutoff voltage being reached. The battery is usually fit for service, after complete recharge. See below under respective battery type. BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2 Page 7...
Page 10
NOTE: If in emergency it is required to stop the test, switch the unit to off/reset. When the test is restarted the timer is reset to zero. It may be necessary to recharge the battery before resuming the test. BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2 Page 8...
With increasing hours of use or age, the battery capacity decreases. Therefore, battery manufacturers usually recommend testing for a capacity equal to 80% of the original ampere-hour rating. BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2 Page 9...
Page 13
A schematic of the circuit diagram for the Beta D-50 can be seen in figure 4-3. At the end of discharge, the calculation of ampere-hour capacity is the product of discharge current and the elapsed discharge time.
Page 14
4.4 DISCHARGE TIME 4.4.1 TIMER UNIT SETTING The Beta D-50 has a built in timer, allowing discharge time settings from 0 minutes to 999.9 minutes. Page 12 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 15
To determine the full capacity of the battery a longer time can be set (several hours). The Beta D-50 will then continue the discharge test only until the cutoff voltage has been reached. The timer, cutoff voltage and discharge current displays will freeze at this point.
Page 16
Table 4-3. Discharge test setting for nickel-cadmium batteries 4.5.3 SETTING CUTOFF VOLTAGE ON THE BETA D-50 Before setting the cutoff voltage, a battery has to be connected and the unit has to be turned on. Page 14 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 17
For example, a SLAB battery with a 30 ampere-hour 1-hour capacity rating would be tested with the discharge current set to 24 amperes. Before setting the discharge current the Beta D-50 must have been connected to the battery (see section 4.5) and the AC power switch must have been turned on.
Page 18
4.7 TEST COMPLETION AND ANALYSIS The Beta D-50 automatically completes the test with the set parameters. It may however be required to measure the individual cell voltages for nickel-cadmium batteries during the test (see section 4.7.2).
Page 19
Refer to the battery manufacturer's maintenance manual on how to proceed. 4.7.1 LEAD-ACID BATTERY If the lead-acid battery has been accepted by the Beta D-50 discharge test it has successfully completed the capacity test. 4.7.2 NICKEL-CADMIUM BATTERY Check each cell with a digital voltmeter near the end of the test.
There are two main indicators that can be periodically calibrated: 1) the voltmeter; and 2) the ammeter (see figure 1-1 in section 1). The Beta D-50 is equipped with two sets of test jacks for easy calibration of these digital display meters. In addition the internal shunt, even though calibrated and certified by the shunt manufacturer, could be verified.
Page 21
DC voltage range appropriate for the connected battery. SWITCH ON MAINS POWER Turn on the AC on-off/reset power switch. An audible alarm sounds, and the Accept lamp illuminates. Meters read all 6's or 8's. Page 19 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 22
0 and the timer starts. “OP” on the timer illuminates and the red LED flashes. COMPARE VOLT READINGS Compare the Beta D-50 digital voltmeter reading with the external calibrated voltmeter. a. If readings differ less than ± 0.2 volts, the voltmeter is accurately calibrated.
Page 23
The millivolt meter will read the millivolts dropped across the Beta D-50 internal shunt when a discharge current is drawn. The circuit diagram for the calibration can be seen in figure 5-2.
Page 24
Repeatedly turn the Current Adjust knob fully counter-clockwise to set discharge current to zero. CONNECT BATTERY Connect the battery DC cable to the battery and ensure the connector is plugged in completely. Page 22 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 25
SET DISCHARGE CURRENT Turn the Ampere Adjust knob clockwise to the rated ampere-hours, i.e. 40 amperes for 40 ampere-hour battery. The ammeter displays the current as it is being adjusted. Page 23 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 26
To verify the accuracy over the range of the meter, additional current settings could be checked. Since the Beta D-50 digital meters are linear, checking two or three current settings are adequate to verify the range. The easiest way to check additional current settings is to repeat steps I and J but setting a lower discharge current in step I.
5. CALIBRATION AND MAINTENANCE 5.4 SHUNT VERIFICATION The Beta D-50 internal shunt is calibrated and certified by the shunt manufacturer. The shunt is a linear resistive device consisting of a heavy brass base and heavy manganin (copper alloy) resistance. It is not necessary to calibrate the shunt, however the shunt could be verified with the help of an external calibrated shunt and a millivolt meter (see figure 5-3).
Page 28
5) Check all leads for tightness 5.5.3 REPLACEMENT OF FUSES The Beta D-50 is equipped with two fuses. One 3 ampere AC line fuse and one 70 ampere DC line fuse. See specification in section 7 for the specific types of fuses required.
Check all terminals and inter- The nickel-cadmium cell connectors. Set a low battery inter-cell discharge current and look for connectors are loose or arcing or heat generation. contaminated causing high resistance Page 27 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 30
If short circuit , call Power Products technical service at (415) 883-6300. If trouble cannot be located contact Power Products technical services at (415) 883- 6300. BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2 Page 28...
AC line fuse 3A/250V, type MDA 1 ¼ x ¼ DC line fuse 70AMAXI Fuse Modes: Analysis (automatic cut-off) and deep cycle (full discharge) with cutoff set to one volt. Page 29 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
The open circuit voltage of a fully charged cell is about 1.35 volts. The discharge voltage is about 1.2 to 1.1 volts and varies with temperature, discharge rate, charge state, and age. Page 30 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
Page 33
12-volt battery. For example, a 24-volt battery rated at 30.0 ampere-hours should deliver 30.0 amperes for a minimum of 1.0 hours before reaching the 18.0 volts cutoff voltage. This is a one-hour, C -rate discharge. Page 31 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
There are no warranties which extend beyond the description on the face hereof. This warranty is in lieu of all other warranties, express or implied. Lamar Technologies excludes liability for incidental and consequential damages. An action for breach of this warranty must be commenced within one year after the breach is or should have been discovered.
All digital/analog displays within calibration specification. Shipped condition all in tolerance, passed. Tested by _________ Date _________ Approved By _________ Date _________ Calibration due one year from date of first use: Recommended Required Page 33 BETA D-50 TESTER / ANALYZER - OPERATING MANUAL V2.2...
