Page 1: User Manual

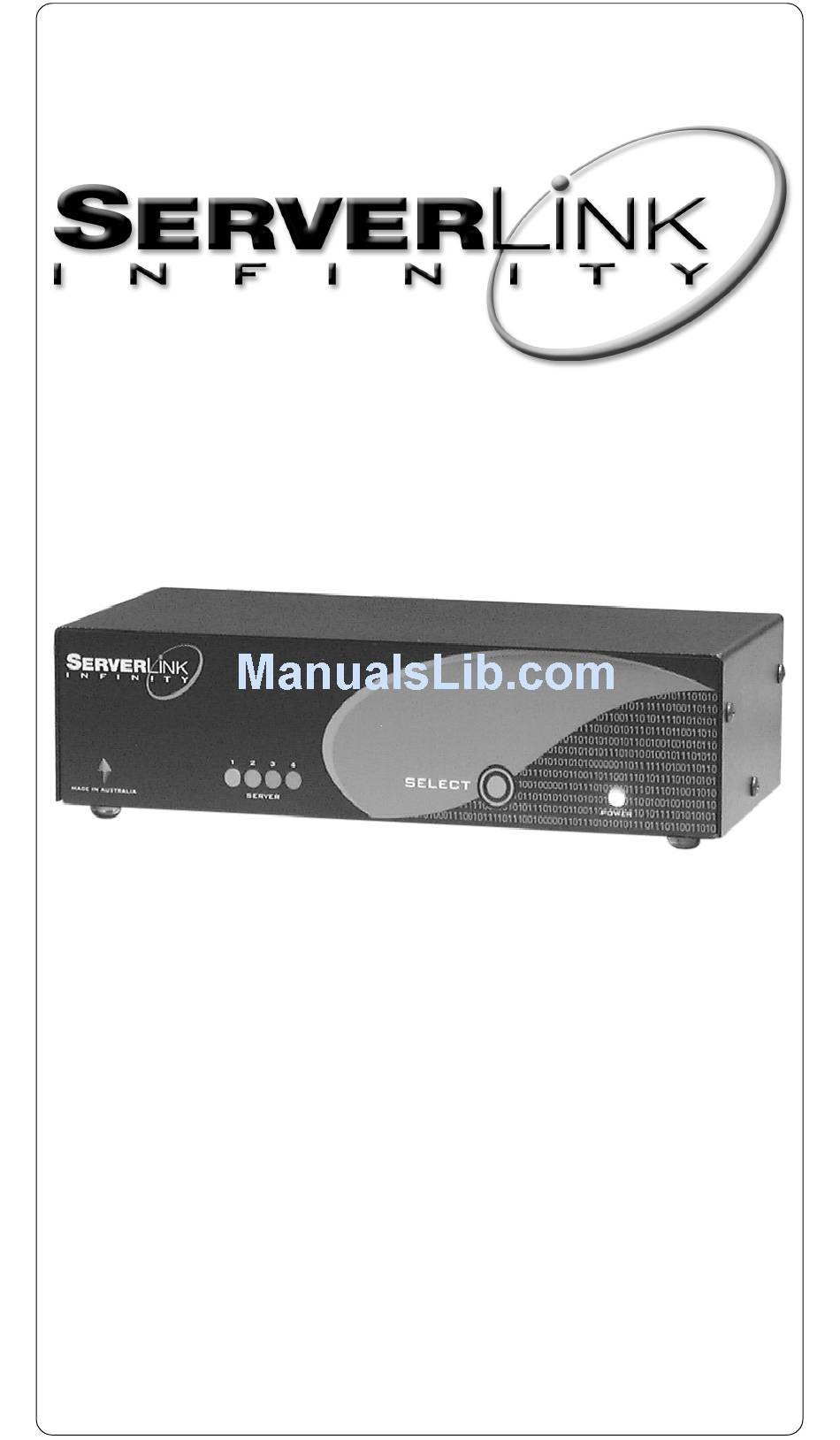

User Manual Model SL-421 Version 2.1 October 2001... -
Page 2: Table Of Contents
Table of Contents 3 Welcome To The ServerLink Infinity. 3 ServerLink Infinity Model 3 Support Service 4 ServerLink Infinity Features 5 Preinstallation 5 General concepts 5 Physical Considerations 6 ServerLink Installation 6 Set up the Console 6 Connect the first computer 6 Turn on the system. -
Page 3: Welcome To The Serverlink Infinity
At sites where an operator requires rapid access to many computers, the ServerLink Infinity offers an ideal solution. The ease of use and its simple operation make the ServerLink Infinity an outstanding tool for your computers. -
Page 4: Serverlink Infinity Features
Each computer can have a user defined name. Individually selectable computers. Scanning function for selected computers. EEPROM memory will save altered settings when the ServerLink is turned off. Automatic mouse emulation. Support for various mouse types. 2 button, 2 button wheel, 4 button wheel. -
Page 5: Preinstallation
In all cases good quality cables should be used. CABLE CONNECTION Connecting cables should be well supported between the computer and the ServerLink. Consider the use of cable ties. Cables should be laid so that individual cables or connectors are not stressed by the weight of adjacent cables. -
Page 6: Serverlink Installation
ServerLink. Match the colour of the connectors with the sockets on the computer and ServerLink. It is best to use input 1 as this is the default selection when the Serverlink boots. Turn on the system. -
Page 7: During Installation
During Installation SOME INSTALLATION TIPS Computer 1 is the default selection when the ServerLink is switched on or reset. It is a good idea to label the cables at each end. This helps when making any changes to the configuration. -
Page 8: Serverlink Popup Screens
THE POPUP SCREEN The SeverLink can be managed from the console by invoking a popup display. A video overlay generated by the ServerLink can be used to show the current status of each connected computer, and to manage various functions in the ServerLink. -
Page 9: Main Setup Screen
The time is set in the Main Setup screen. Main Setup Screen This screen is where various funtions of the ServerLink can be changed. A series of fields, described below, lets the operater change the values used for each funtion. -
Page 10: Hotkey Selection
The Hotkey can be changed to Left Control, Right Control, Left Alt, Right Alt, Left Shift or Right Shift. SERVERLINK NAME The ServerLink may be named. The name will appear on the server selection screen. This is useful in cascading. MONITOR STANDBY TIMEOUT... -
Page 11: Mouse Setup Screen
This Mouse Setup screen is used to set the mouse emulation for each computer. Mouse emulation allows the mouse to work despite the attached computers having different mouse drivers. The ServerLink has an automatic setting for mouse emulation: “AUTO” enabled by default If the automatic mouse emulation does not work for a particular computer, manual mouse emulation may be set. -
Page 12: Product Information Screen
Cascading Your ServerLink In installations where there are more computers than the capacity of your ServerLink, it is possible to cascade two or more ServerLinks. Please visit the ServerLink website for more details about cascading your ServerLink. Other Models Of ServerLink Diamond Systems Pty. -
Page 13: Technical Data
Technical Data Functional Description: An electronic switch for operating multiple computers from one console. Model SL-421 Switchable computers Physical Dimensions Height 50 mm Width 95 mm Length 210 mm Weight 750 g Power Supply: 5 Volt Phantom Power via host(s) keyboard input. -
Page 14: Troubleshooting
Answer - The ServerLink will boot faster than the connected computers, but if the serverlink is turned on after one of the computers has completed its boot diagnostics then that computer will hang. Solution - reset that computer with the ServerLink turned on Problem: The keyboard of a computer hangs. -
Page 15: Notices
ServerLink Infinity Model SL-421 and this manual at any time without notice. Warranty The ServerLink Infinity Model SL-421 is covered by a three year warranty against defective parts and workmanship provided that the defect has not been caused by misuse or abuse. - Page 16 ServerLink Support Service ServerLink Toll Free Support Free Call anywhere in Australia 1800 262 262...
