ATS
Automatic Transfer Switch
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for serverLink ATS

Summary of Contents for serverLink ATS

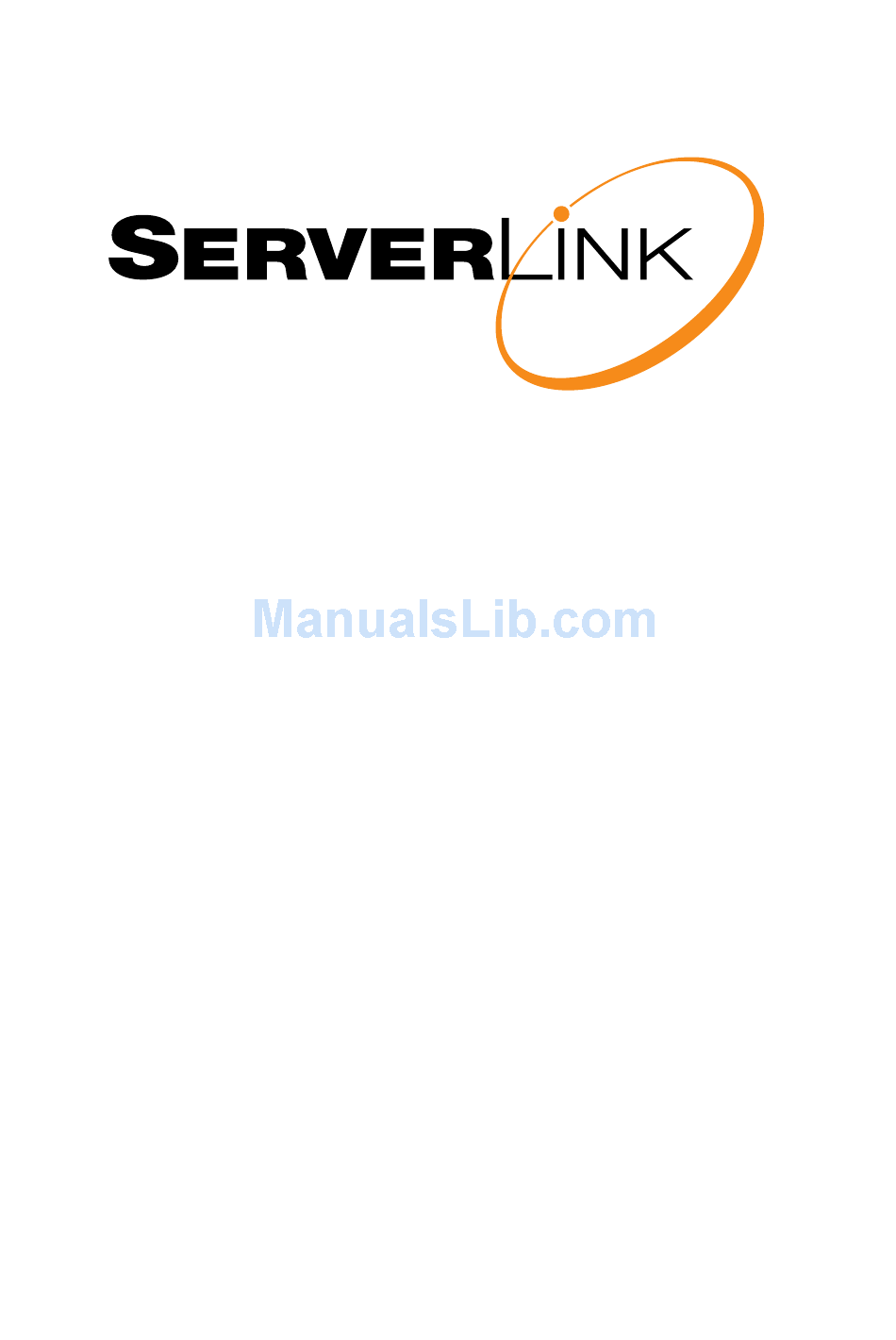

  • Page 1 Automatic Transfer Switch User Manual...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ........................1 2. ATS Package ........................3 3. Function ...........................4 4. Installation........................6 5. Configuration ........................8 6. Web Interface ........................9...

  • Page 3: Introduction

    AC sources, then the system availability is increased and the dual input advantages are fully used. The ATS is an Internet ready device designed and is equipped with an intelligent current- meter (True RMS) that will indicate the total power consumption of ATS.
  • Page 4 • Do not overload the output of the ATS. The total connected load should not exceed rated input power. • Do not exceed the leakage current limit for the ATS in your system. See the “Earth Leakage Current” section later in this document for limits.

  • Page 5: Ats Package

    2. ATS Package The standard ATS package contains: ATS. Rack mount Brackets. CD-ROM, it contains: User Manual. Monitoring Software. MIB: Management Information Base for Network. Adobe Acrobat Reader. ATS User Manual Ver. 1.0...

  • Page 6: Function

    Light on means that web access is protected by SSL. DHCP (green): Light on means that PDU gets IP address through DHCP. Input (green): Indicate input power status. Output (green): Indicate which input power source is active to provide output ATS User Manual Ver. 1.0...
  • Page 7 RJ11 for option probe attached to detect temperature and humidity. Circuit Breaker Overload power protection. (Only 30 Amp above is available) ATS User Manual Ver. 1.0...

  • Page 8: Installation

    E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips)." Diagram ATS User Manual Ver. 1.0...
  • Page 9 Switch on the ATS. Note : The default setting for the way to get IP address is DHCP. If ATS can not get the IP from DHCP server, its IP address will stay at 192.168.0.216 ATS User Manual Ver. 1.0...

  • Page 10: Configuration

    5. Configuration The ATS can be configured to fit several power distribution requirements. Two supported configurations for Redundant Switch are shown below. Minimum acceptable configuration: Redundant Switch with two UPS units connected to the same facility power source. Best configuration: Redundant Switch with two Smart-UPS units connected to two separate AC lines, each UPS receiving power from a separate facility power source.

  • Page 11: Web Interface

    6. Web Interface Login: Input the ATS IP address in web browser. Default ID is snmp. Password is 1234. ATS User Manual Ver. 1.0...
  • Page 12 Information: ATS Indicate the status of ATS input power Status Description: Active Standby: Backup power source n/a: No power input or power is out of range. Indicate the temperature and humidity ATS User Manual Ver. 1.0...
  • Page 13 Information: System Indicate ATS system information, including: Model No. Firmware Version MAC Address System Name System Contact Location ATS User Manual Ver. 1.0...
  • Page 14 Information: Power Provide ATS power information, including: Voltage, Frequency, Power Factor, Active Power, Apparent Power and Main Energy. Accumulated Energy: Subtotal for energy. User can reset to 0 and restart calculating. Carbon Emission Data: Reference data. CO2 Electricity Emission Rate: Users can check this parameter through their power plant.
  • Page 15 Configuration: ATS ATS Selection Manually select one of inputs as the primary power source. Input Identification Rename input power identification. ATS User Manual Ver. 1.0...
  • Page 16 Configuration: Threshold Set the warning and overload threshold for each circuit. Set lower and upper threshold for temperature and humidity. ATS User Manual Ver. 1.0...
  • Page 17 Configuration: User Change ID and password. Default ID is snmp and password is 1234. ATS User Manual Ver. 1.0...
  • Page 18 Configuration: Network PDU network information Enable DHCP: Change the way to get IP address for PDU. ATS User Manual Ver. 1.0...
  • Page 19 Email Address: Input the recipient email address. The message in the email: Indicate OutletA~H-XXXXXXXX status in order X=0 : means the power off. X=1 : means the power on. Note: Make sure DNS server can resolve the Email Server’s domain name. ATS User Manual Ver. 1.0...
  • Page 20 When event occurs, PDU can send out trap message to pre-defined IP address. Trap Notification: Set receiver IP for trap. Community: Set SNMP community. Read Community is public and fixed. Default Write Community is “public” and can be modified by user. ATS User Manual Ver. 1.0...
  • Page 21 User must input the correct ID and password to enable SSL function. The ID and password must be the same with the setting in “User”. Change port User can change network port number for web access. ATS User Manual Ver. 1.0...
