Page 1: User Guide

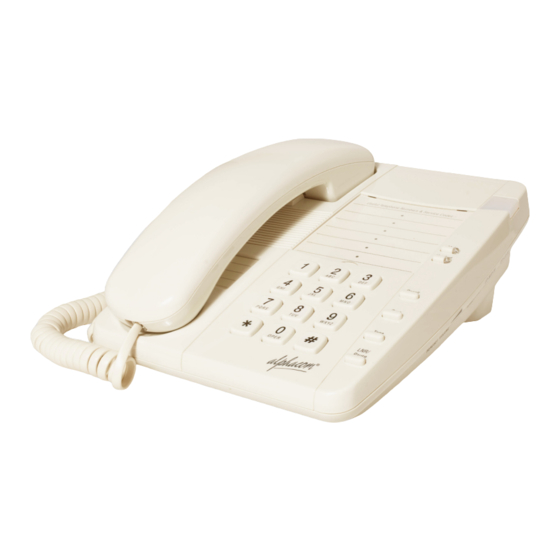

Alphacom NR200HP executive RANGe heAdsetPhONe USER GUIDE Versatility & Value... -
Page 2: Table Of Contents
11.7 HANDSET MuTE buTTON 11.8 bASE uNIT LATCHAbLE MuTE 11.9 SAVE fuNCTION OpERATINg pROCEDuRE fOR pbx CONNECTION 12.1 pbx RECALL 12.2 pAbx pAuSE fACILITy 12.3 MESSAgE WAITINg OpERATION 12.4 gENERAL uSE IN CASE OF DIFFICUlTy CARE OF yOUR NR200HP HEADSETPHONE... -
Page 3: Guarantee
CONDITIONS OF USE your NR200Hp Headsetphone is approved for use on business or private direct exchange lines and on compatible pbx extensions. When connected to a direct exchange line this must be a standard exclusive (not shared service) line. -
Page 4: Facilities And Features
Facilities and Features This apparatus has been approved for the use of the following facilities Simple telephone facility with headset operation Loop Disconnect or DTMf Signalling (selectable) Mixed Mode signalling Earth Loop and Timed break Recall. Handset push to mute facility or optional push to speak (in handset mode only) base unit latchable mute, with LED indication. -
Page 5: Locations Of Controls
NR200HP Headsetphone LOCATIONS OF CONTROLS Wall mount off-hook handset reset Ring / MW indicator Hook Switch Save Mode Time Shift Store Wall Mount Mute button in handset Mute with indicator Headset with indicator Recall Save Tone Pause Switches below Notation Panel... -
Page 6: Utilisation Of Controls
Utilisation of Controls The button functions are as follows: 0 - 9 Dialing digits. * - # Dialling codes for Mf signalling Recall for use on pbx or for star services Save used to store the last number in a memory Tone Switches from Loop Disconnect to DTMf during dialling Redial... -
Page 7: Installation
The numbers when added together must be 4 or less. Sometimes bT telephones are unmarked but they can generally be assumed to have a REN of 1.0. If in doubt, please check with your BT Sales Office. The REN value of your NR200HP Headsetphone telephone is 1.0. -
Page 8: The Recall Mode Selector Switch
To find out if you are on a digital exchange, or when it will be provided, contact your local BT office. your NR200Hp businessphone provides tone signalling when the Dial Mode selector switch is set to the (TONE) position and the Recall Mode selector switch is in the TbR position. -
Page 9: Connecting To Telephone Socket
Set the switch to the Hl, MED or LO position to adjust the pitch of the ringer. Wall Mounting you may wish to mount the NR200Hp Headsetphone on a wall. To do this: Slide the plastic, “wall mount” upwards to remove, turn it around and replace it in the slot. -
Page 10: Operating Procedures
Operating Procedures Two modes of operation are provided; normal handset mode where the handset is lifted and replaced in the normal manner and headset mode where the caller or called party is heard through the headset. When making or receiving a telephone call, you can alternate between the two modes of operation. -
Page 11: Mixed Mode Operation
11.7 HANDSET MUTE BUTTON When using the NR200Hp Headsetphone in handset mode (not headset), whilst the handset mute button is depressed the other party will not hear the conversation. If specified the NR200HP Headsetphone can be supplied with this button as ‘push to talk’, and in this instance the telephone will be clearly... -
Page 12: Operating Procedure For Pbx Connection
OPERATING PROCEDURE FOR PBX CONNECTION The NR200Hp businessphone is suitable for connection to a pAbx which returns secondary proceed indication. 12.1 PBX RECAll When connected to a pbx, the telephone will send a Recall Signal to the exchange when the RECALL button is pressed. This NR200Hp Headsetphone provides either TIMED LINE bREAK RECALL or EARTH RECALL. -
Page 13: In Case Of Difficulty
In the event that this telephone does not work, contact your Networks Operator (bT, Hull etc) as it is likely that the exchange line is faulty. If the replacement telephone works correctly the NR200Hp Headsetphone must be returned for repair. - Page 14 Distributed by: Alphacom ® Incom House, Waterside Trafford park Manchester, M17 1WD Tel: 0161 935 1000 fax: 0161 935 1015 www.alphacomtelecoms.co.uk email: sales@alphacomtelecoms.co.uk All Alphacom telephones are manufactured to comply with CE standards...
