Installation Guide
DS-7208 & 7216HVI-S Series DVR
Verify Contents
Verify that the package contents are correct by checking the
items against the packing list.
Note:
Please contact your dealer for damaged or missing
items.
DVR Pre-Installation
The DS-7208&7216 Series DVRs are highly advanced
surveillance equipment that should be installed with care.
Please take into consideration the following precautionary
steps before installation of the DVR.
1. Keep all liquids away from the DVR.
2. Install the DVR in a well-ventilated and dust-free area.
3. Ensure environmental conditions meet factory
specifications.
4. Install a manufacturer recommended HDD.
DVR Installation
During the installation of the DVR:
1. Use brackets for rack mounting.
2. Ensure there is ample room for audio and video cables.
3. When installing cables, ensure that the bend radius of the
cables are no less than five times than it's' diameter.
4. Connect both the alarm and RS-485 cable.
5. Allow at least 2cm (~0.75in) of space between racks
mounted devices.
6. Ensure the DVR is grounded.
7. Environmental temperature should be within the range of
-10º C ~ 55º C, 14º F ~ 131º F.
8. Environmental humidity should be within the range of
10% ~ 90%.
Hard Disk Installation
Rear Panel Diagram
Before installing a hard disk drive (HDD), please make sure
the power is disconnected from the DVR. A manufacturer
recommended HDD should be used for this installation.
Tools Required: Phillips screwdriver.

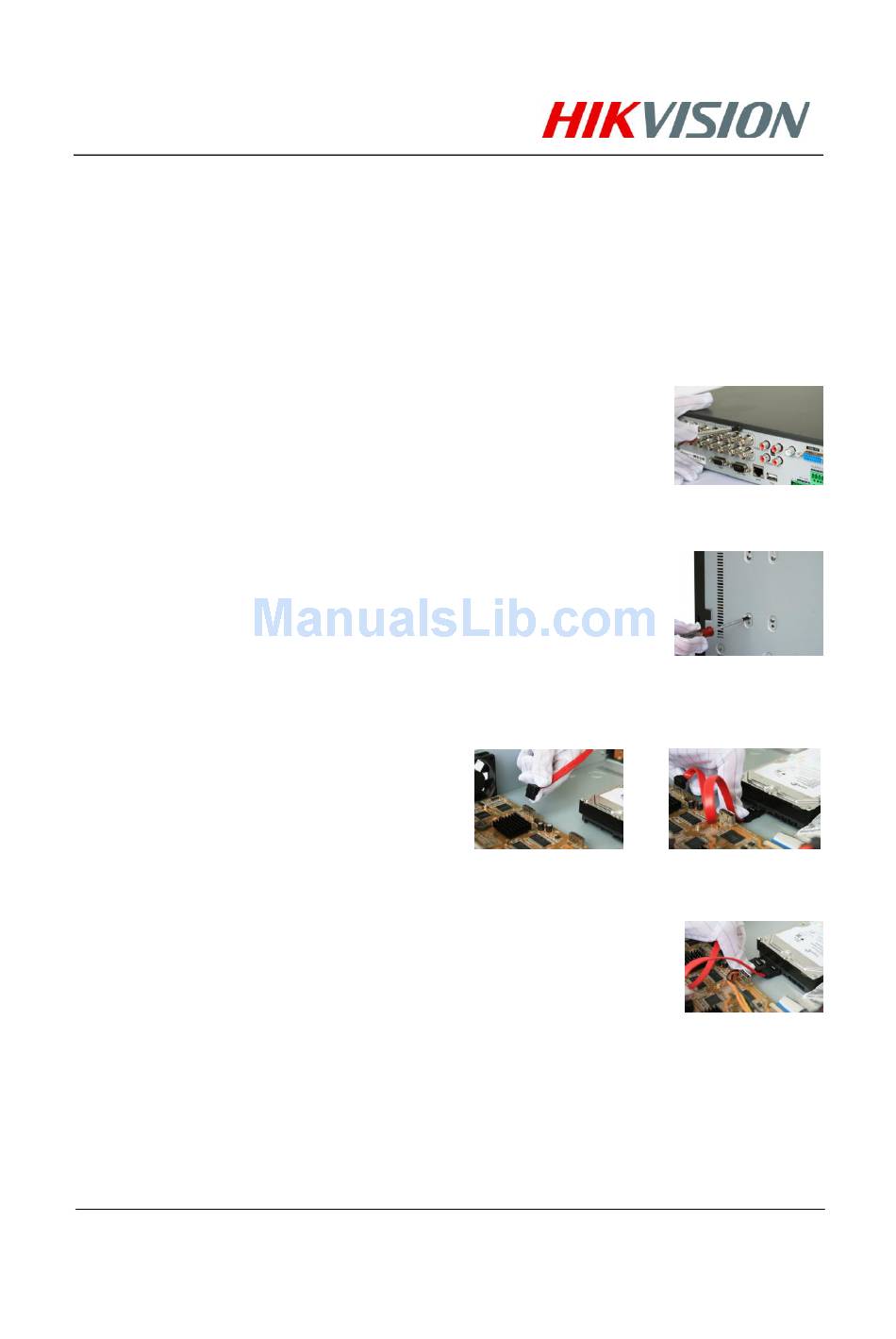

To install a HDD on your DVR:
1.
2.
3.
4.
5. Re-install the lid of the DVR and fasten screws.
Installation Guide - DS-7208 & 7216HVI-S Series DVR
Remove the lid of the DVR by unfastening the screws
on the back.
Install the HDD on the chassis
Connect the HDD to the motherboard of the DVR with
the included data cable.
Connect the power cable to the HDD.
1
Advertisement
Related Manuals for HIKVISION DS-7208HVI-S Series
Summary of Contents for HIKVISION DS-7208HVI-S Series
-
Page 1: Installation Guide
Installation Guide DS-7208 & 7216HVI-S Series DVR Before installing a hard disk drive (HDD), please make sure Verify Contents the power is disconnected from the DVR. A manufacturer Verify that the package contents are correct by checking the recommended HDD should be used for this installation. items against the packing list. - Page 2 Figure 8. Rear Panel Diagram Item Description BNC connector for video output. If VGA is connected, it won’t function. VIDEO OUT If VGA is not connected, the interface will show main GUI. VIDEO SPOT OUT BNC connector for monitor. Single window view. VIDEO IN BNC connectors for analog video input.
-
Page 3: Peripheral Connections
figure above). Peripheral Connections Connecting to Alarm Input / Output Device There are 4 jumpers (JP4, JP5, JP6, and JP7) on the motherboard, each corresponding with one alarm output. By The alarm input/output interface of the DVR is shown below: default, jumpers are connected. -
Page 4: Hdd Storage Calculation
Note: The RS-485 PTZ control should be connected with the T+ and T- pin on the RS-485 terminal block. HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate.
