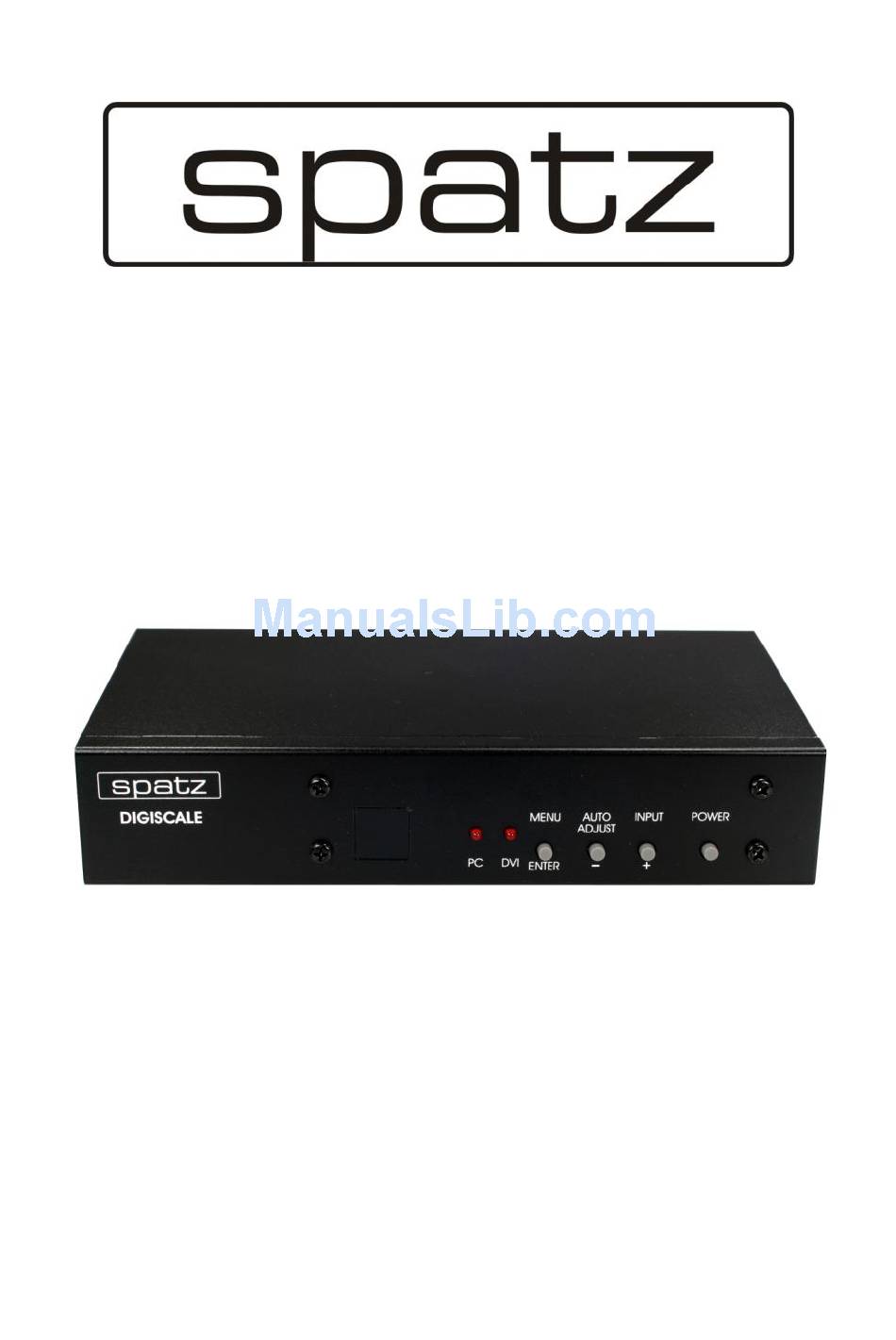

- Page 1 PC/HD to 1080p DVI Scaler Box Operation Manual DIGISCALE...
- Page 2 Converters, Video Processors, and HDMI/DVI devices. This manual includes operation information on the DIGISCALE. Please read this to become familiar with the DIGISCALE and keep the manual for possible reference in the future. SPATZ's DIGISCALE is designed to convert PC, HD and DVI to digital DVI at a variety of HDTV and PC resolutions.
- Page 3 Auto Tune ("-"): Press the "-" button to carry out picture auto adjust for the VGA input. The DIGISCALE will fine tune the position (centering) and color of the output picture.
- Page 4 The DIGISCALE accepts PC and DVI inputs. The formats supported by these inputs are as follows: - When connecting to a PC source use a 15-pin D-sub cable to connect the output of a PC to the D-Sub input connector of the DIGISCALE.
- Page 5 OUTPUT Resolution/Refresh DVI/HDMI Rate 480I/576I(NTSC/PAL) 480P/576P 720P@(60/50) 1080I@(60/50) 1080P@(60/50) VGA@60 SVGA@60 XGA@60 SXGA@60 UXGA@60 WXGA@60(1280x800) WSXGA@60(1680x1050) WUXGA@60(1920x1200) WXGA+ @60 (1440x900) SXGA+@60 (1400x1050) Pins definition of modem cable Remote Controller Definition Definition Baud Rate : 19200 bps Data Bit : 8 bits Parity : None Stop Bit :...
- Page 6 TX Command Code Response Description S POWER 0 POWER OFF POWER OFF S POWER 1 POWER ON POWER ON S SOURCE SOURCE COMP COMP INPUT S SOURCE SOURCE PC PC INPUT S SOURCE 2 SOURCE DVI DVI INPUT S OUTPUT 0 OUTPUT NATIVE NATIVE RESOLUTION OUTPUT S OUTPUT 1...
- Page 7 OUTPUT S CONTRAST 0~100 CONTRAST 0~100 CONTRAST 0~100 ADJUST [Defaut:50] S BRIGHTNESS 0~100 BRIGHTNESS 0~100 BRIGHTNESS 0~100 ADJUST [Defaut:45] S HUE 0~100 HUE 0~100 HUE 0~100 ADJUST [Defaut:50] S SATURATION 0~100 SATURATION 0~100 SATURATION 0~100 ADJUST Defaut:60] S SHARPNESS 0~100 SHARPNESS 0~100 SHARPNESS 0~100 ADJUST [Defaut:32]...
- Page 8 RX Command Code Response Description R POWER POWER ON SHOW POWER STATUS R SOURCE SOURCE Comp, PC, DVI SHOW SOURCE STATUS R OUTPUT OUTPUT NATIVE~WUXGA SHOW OUTPUT STATUS R SIZE SIZE FULL~PANSCAN SHOW SIZE STATUS R PICTUREMODE PICTUREMODE STANDARD~USER SHOW PICTURE MODE STATUS CONTRAST CONTRAST 0~100 SHOW CONTRAST STATUS...
