Spatz XHDMI Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XHDMI
HDMI to HDMI
Scaler Box
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XHDMI and is the answer not in the manual?

Questions and answers

Related Manuals for Spatz XHDMI

Summary of Contents for Spatz XHDMI

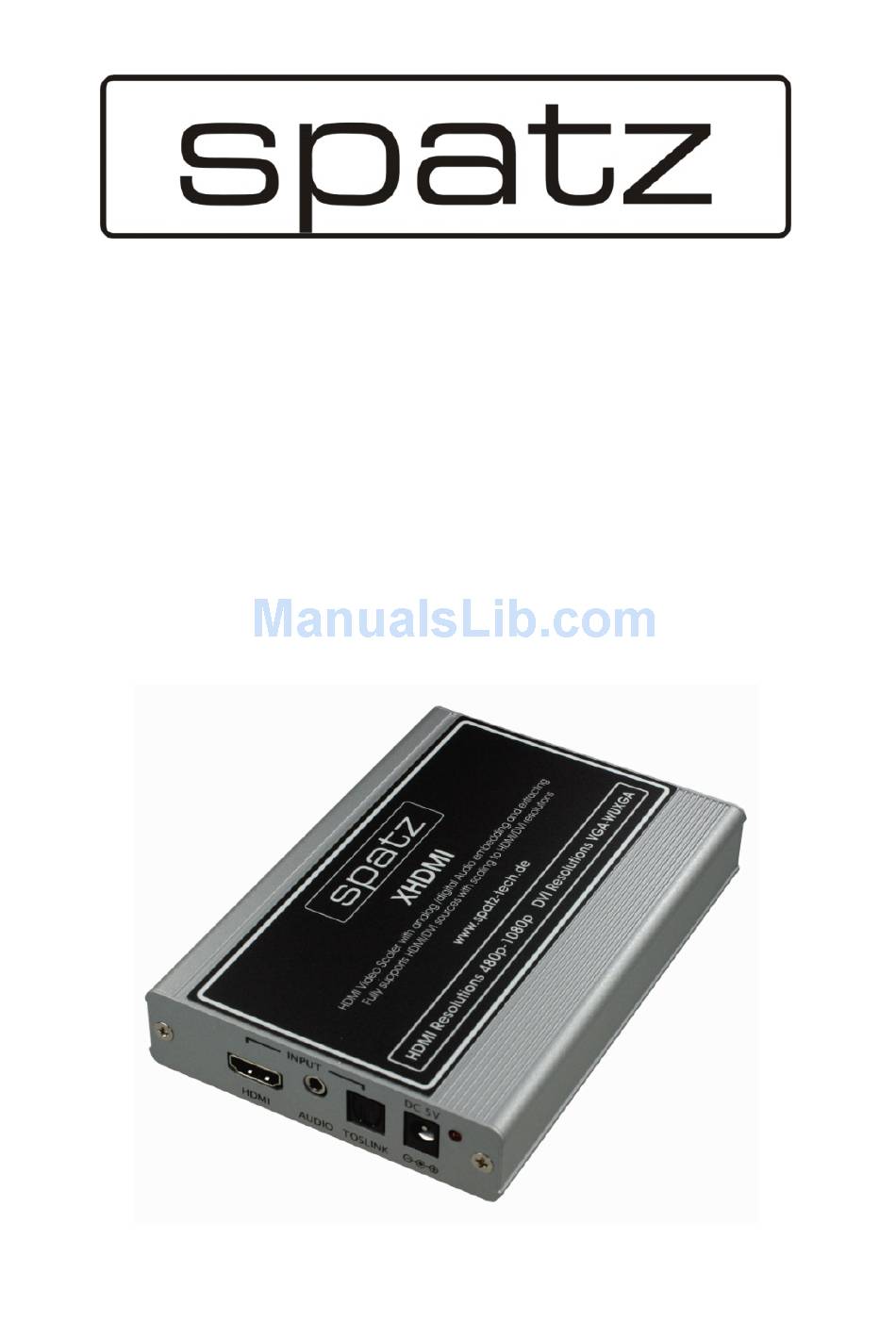

  • Page 1 XHDMI HDMI to HDMI Scaler Box Operation Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction................2. Features..................1 3. Package Contents ..............1 4. Operation Controls and Functions......... 4.1 Front Panel................. 4.2 Rear Panel................3 4.3 OSD Operation..............5. Reset Functionality..............4 6. Specifications................6.1 General Specification............6.2 Support Resolution............. 5 7.

  • Page 3: Introduction

    1. Introduction This is a compact yet versatile HDMI to HDMI Scaler Box. It accepts HDMI input with a separate Toslink or analog audio and scale it to HDMI output (at a number of selectable resolutions) with additional Toslink and analog audio output.

  • Page 4: Operation Controls And Functions

    4. Operation Controls and Functions 4.1. Front Panel OUTPUT MENU HDMI TOSLINK AUDIO 1. MENU Button: a. Press the MENU button to bring up OSD operation menu (see section "4.3 OSD Operation" for reference.) b. When in the OSD menu mode, use MENU button as an OK key to confirm the selection.

  • Page 5: Rear Panel

    4.2. Rear Panel INPUT DC 5V HDMI AUDIO TOSLINK 1. HDMI INPUT: Connect the HDMI input port to the HDMI output port of your source equipment such as DVD player or Set-Top-Box. 2. AUDIO INPUT: Connect the analog audio input port to the output port of your source equipment such as DVD player or Set-Top-Box.

  • Page 6: Osd Operation

    4.3 OSD Operation Tier Option Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT Back to 1...

  • Page 7: Specifications

    6. Specifications 6.1. General Specification * Frequency bandwidth: 1.65Gbps (single link) * Input Ports: HDMI x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * Output Ports: HDMI x 1 / Toslink x 1 / 3.5mm Phone Jack x 1 * 5V/2.6A DC power supply * Dimensions: 102(W) x 145(D) x 25(H)mm * Weight: 3.2Kgs...
