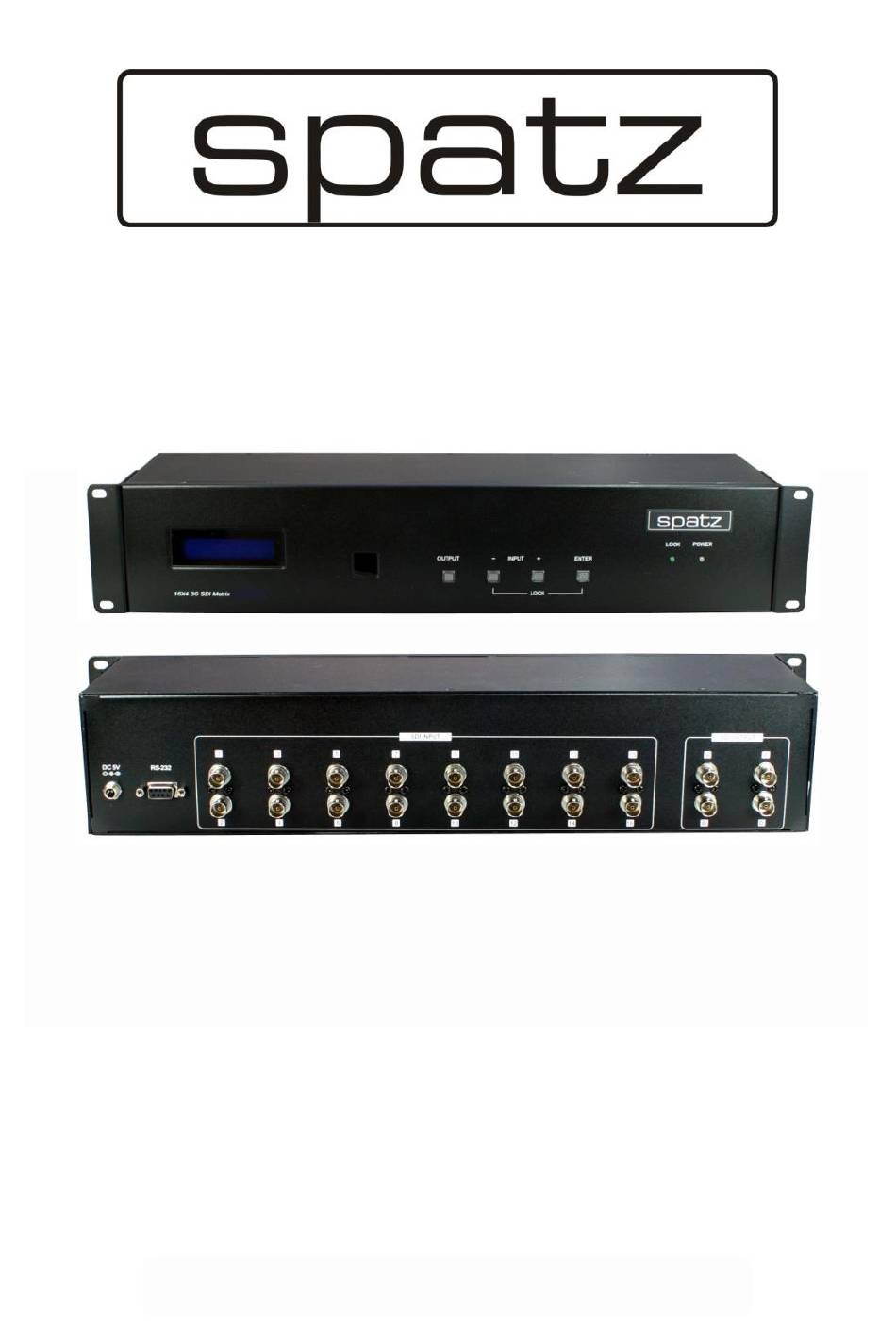

  • Page 1 SDI-X164 16 by 4 3G-SDI Matrix...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. SPATZ assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. SPATZ assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction..........5 2. Applications ..........5 3. Package Contents ........5 4. System Requirements......5 5. Features ............ 5 6. Operation Controls and Functions..6 6.1 Front Panel ..........6 6.2 Rear Panel...........7 7. RS-232 Protocols ........8 7.1 Pin Assignment ........8 7.2 Commands .........8 8.

  • Page 5: Introduction

    1. INTRODUCTION The 16 by 4 3G-SDI Matrix allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without signal loss. For professionals this means that it is now easier to switch sixteen 3G-SDI signals and split it up to four SDI signal outputs.

  • Page 6: Operation Controls And Functions

    • Connect with other units to extend your signal over long distances • Equalized and re-clocked • Supports signal input and output distance of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals. NOTE Cable tested with Belden 1694A.

  • Page 7: Rear Panel

    ENTER Button Press this button to confirm the selection. Press both the ENTER key and – key together to lock all the keys on panel. To unlock, press both the ENTER key and – key together again to release the locking system.

  • Page 8: Rs-232 Protocols

    7. RS-232 PROTOCOLS 7.1 Pin Assignment Pins definition of modem cable CMSDI-164 Remote Controller Definition Definition Baud Rate: 19200bps Data bit: 8 bits Parity: None Stop bit: 1 bit 7.2 Commands Command Description poweron enter Power ON poweroff enter Power OFF portx xx enter x= a~d output, xx=01~16 input e.g.

  • Page 9: Remote Control

    8. REMOTE CONTROL Power Press the button to turn on/off the unit. OUTPUT Press a output port from A~D first then select an input number and press enter to confirm the selection. INPUT Press 1~16 to select the desired input source after selecting the output then press enter to confirm the selection ENTER Press this button to confirm every output with input selection.

  • Page 10: Connection And Installation

    9. CONNECTION DIAGRAM DVx16 SDI Monitorx4...

  • Page 11: Specifications

    10. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmit ion Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s Input Ports 16 x BNC (SDI/HD-SDI/3G-SDI) Output Ports 4 x BNC (SDI/HD-SDI/3G-SDI) Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±...
