safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension
cord unless plug can be fully inserted. Do not attempt to defeat this safety feature.
12.
SAVE THESE INSTRUCTIONS
Place all of the parts in front of you and check to see
if all required parts are present by using the following
parts list:
REF
Box Qty. FREEDOM FILTER MODEL
1- Pump Assembly (Contains P-1, P-2,
P-9, P-13, P-16, XL-3, P-2) See page 11 for diagram.
Reference Quantity Included Description
No.
10 1
4 1
11 2
5 1
15 1
7 2
17 1
24 2
24 2
25 2
26 2
12 2
6 8

ASSEMBLING YOUR DIATOM FREEDOM FILTER

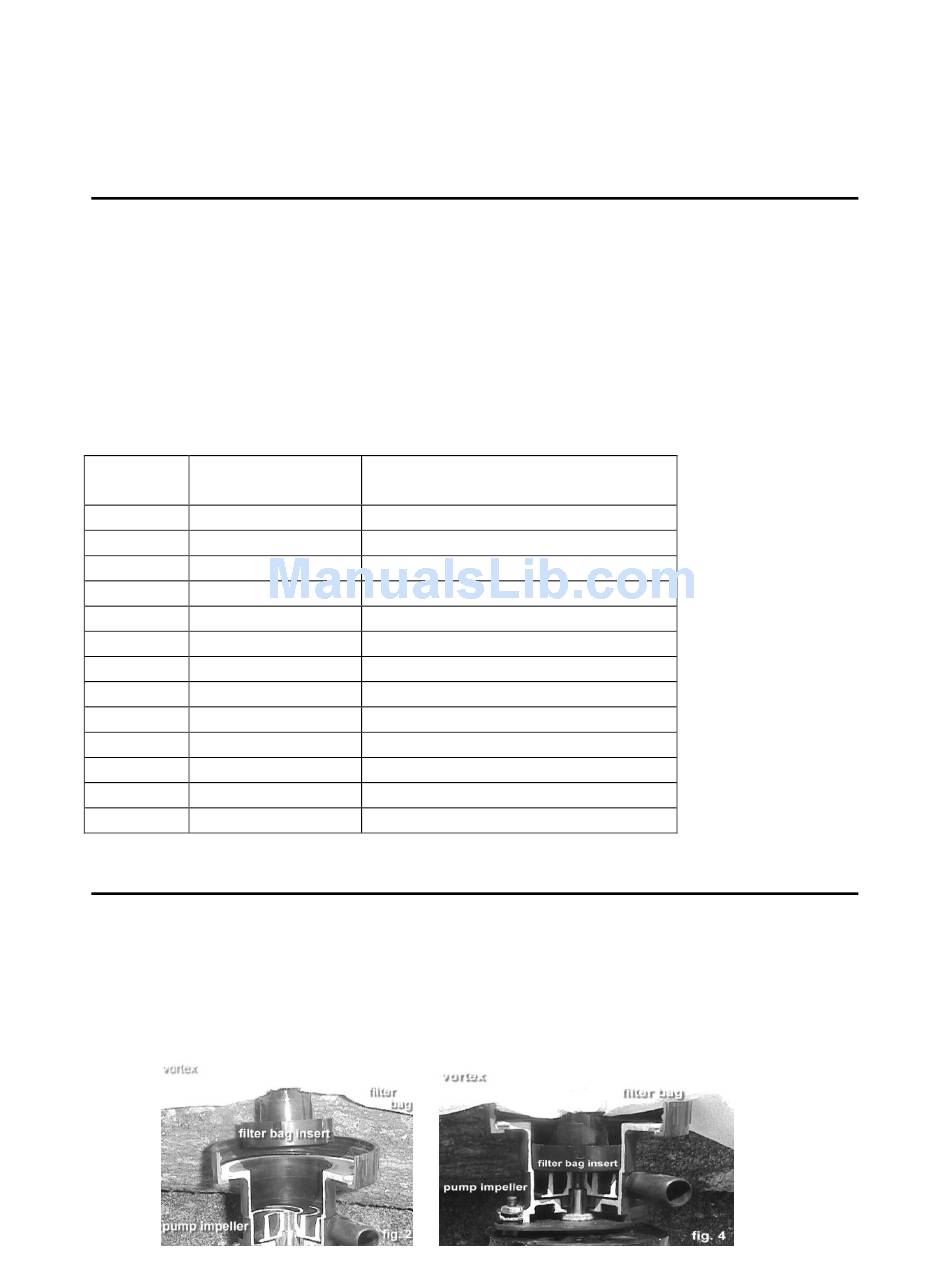

1. To insert the P-4 filter bag into the main casting: the small hole in the round- shaped insert should
be in line with the turbulence connector port for best operation. The hole allows air to escape
from the jar when the unit is filling with water. Its location on the outer edge of the insert dictates
that it is in a position of constant pressure during the re-circulating or starting phase of the filter
and also while the filter is in operation. Force the filter bag insert into the impeller cavity as far as
it will go, until firmly seated, approximately 1 inch into main casting. (Fig. 2)
2.
Install the P-5 turbulence tube by forcing one end over the turbulence tube connector port on the
bottom of the main casting. (Fig. 4)
3.
PARTS IDENTIFICATIONS FOR
DIATOM FREEDOM FILTER
Two Quart Chamber Base (PH-10)
Filter Bag (P-4)
Four Foot Section Hoses (XL-11)
Turbulence Tube (P-5)
Recharge Valve (P-29)
Flex Tubes (P-26)
Filter Charge
Strainer Plates (P-24)
Strainer Screens (P-24)
Cap Plugs (P-25)
Eight Inch Tubes (P-26)
"U"-tubes (XL-12)
Rubber Hose Clamps (P-6)
~5~
