3. Remove felt washer and wipe shaft dry of oil and grease.
Sand shaft lightly with medium grit sandpaper to remove
old seal residue. Re-oil felt washer and replace over shaft.
4. When replacing a main casting the P-16 shaft seal should
Also be replaced to insure a proper seal. Glue in a new seal
Using any brand automotive gasket shellac and allow overnight
Drying.
5. Grease the P-16 shaft seal with Diatom Filter Shaft Seal lubricant
part 31, by filling the center of the seal with grease. Replace
the three star washers on motor, hold one finger over the inside
of the seal and press the casting over the motor shaft in line with
mounting studs. Wipe out any excess grease from inside of casting,
replace the flat washers and nuts. Center the casting and tighten lightly.

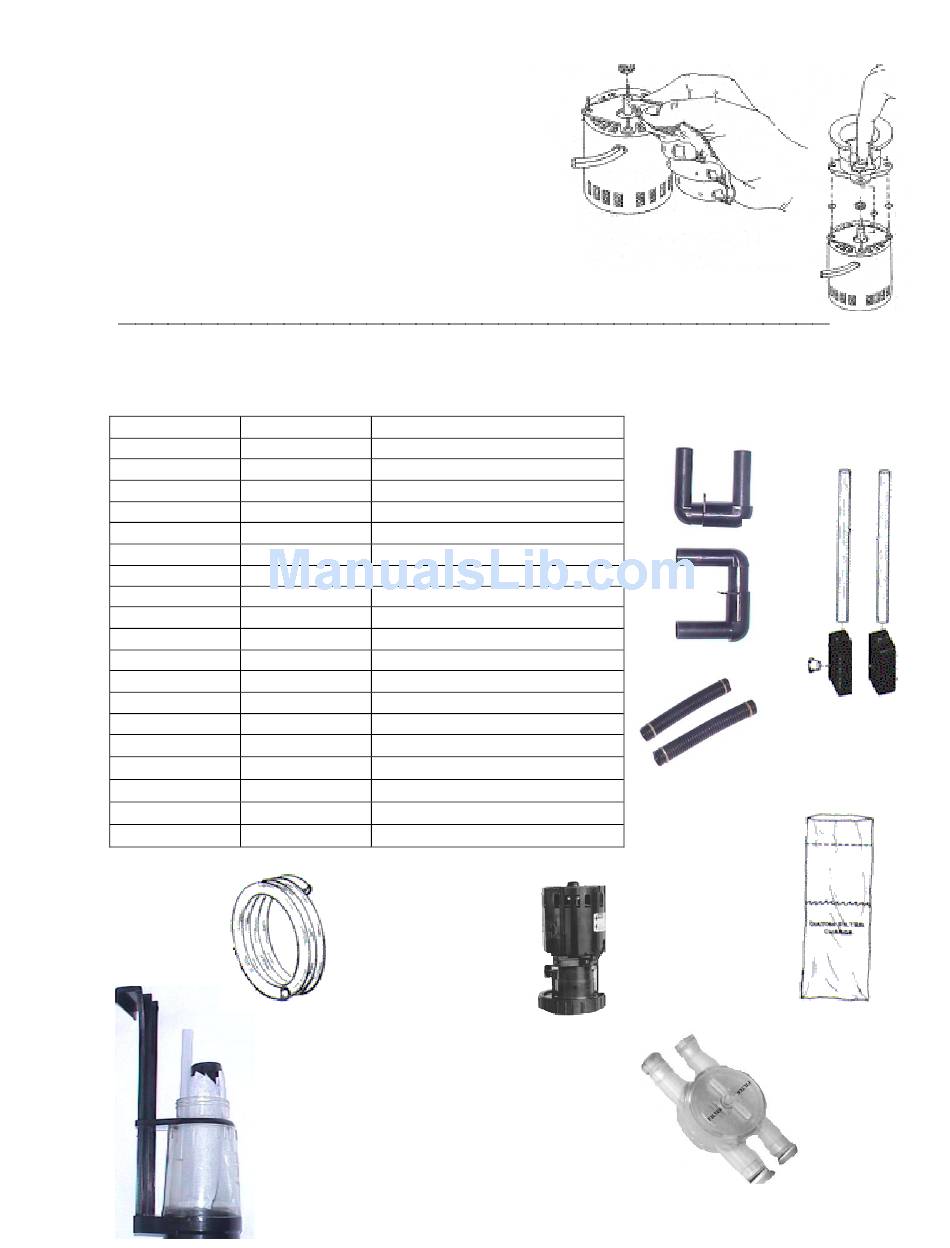

DIATOM FREEDOM FILTER MODEL PARTS LISTING
Reference No. Part No.
1 P-1
2 P-2
3 XL-3
4 P-4
5 P-5
6 P-6
7 PH-11
9 P-9
10 P-10
11 XL-11
12 XL-12
13 P-13
16 P-16
17 P-17
23 P-23
24 P-24
25 P-25
26 P-26
15 P-29
11 ---
11
EXPLODED VIEW
Description
Motor w/special hardened shaft.
Main casting w/P-13, P-9, P-16
Impeller
Filter bag
Turbulence tube
Hose clamp
No kink tubes
Jar gasket
Chamber base
Hose
"U" tubes
Jar ring
Shaft seal
Mixing Bag
Motor mounting plate (not shown)
Strainer (w/P-25)
Cap plug
Intake and exhaust tube
Recharge valve
Inside
16 ---
2 and 3
Inside
Fig. 25
Fig. 26
--- 12
12
--- 7
--- 1
--- 13
--- 15
--- 26
--- 24
--- 17
