Summary of Contents for ReDeal ZP120N 6-10KVA
-

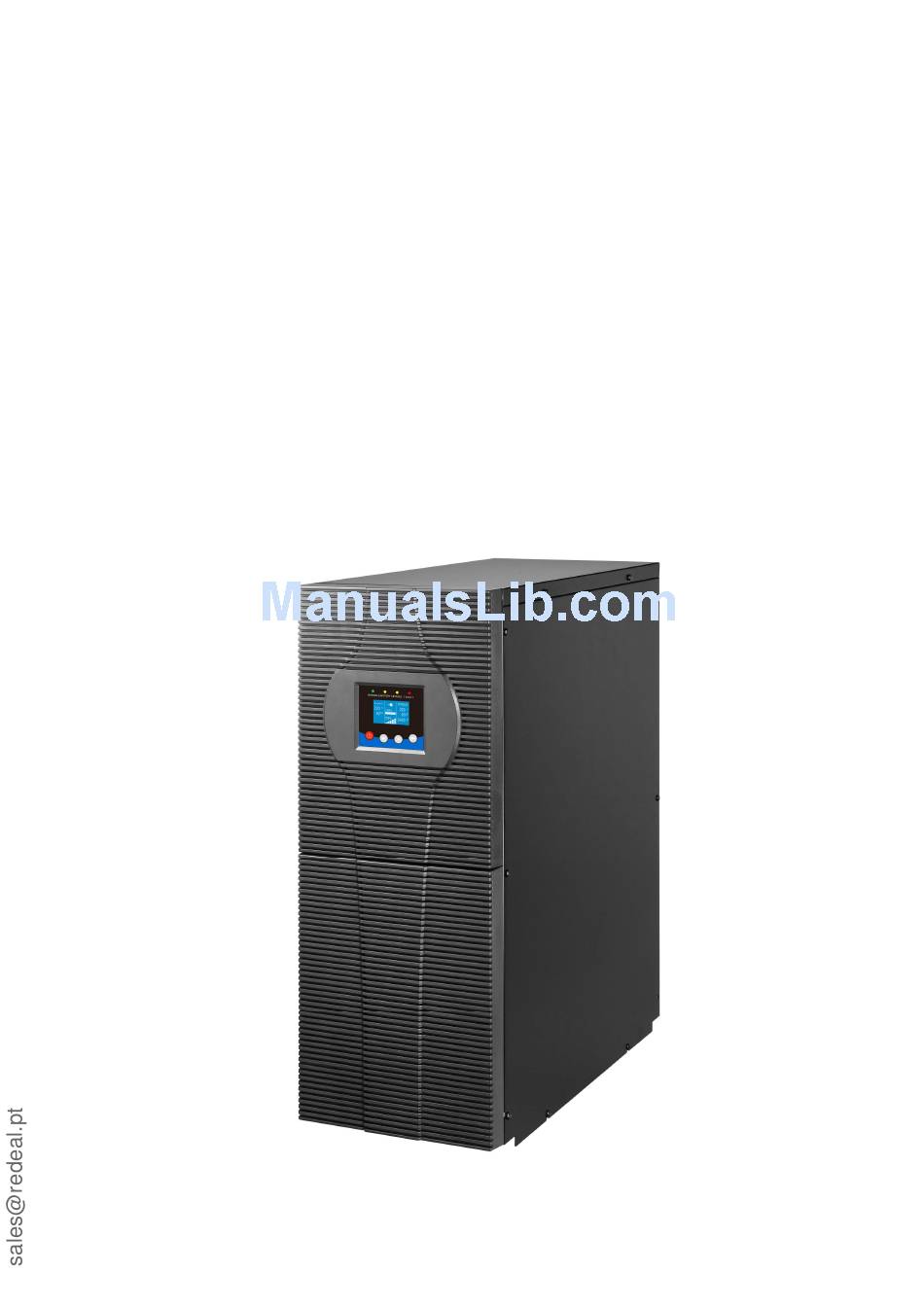

Page 1: User Manual
Deal USER MANUAL Model ZP120N 6-10KVA Deal www.redeal.pt... -
Page 2: Table Of Contents
6. Special function.................. 41 6.1 HE function ..................41 6.2 Converter function ................. 42 6.3 Parallel function ................42 7. Trouble Shooting................48 7.1 Trouble Shooting According To Warning Indication ...... 48 7.2 Trouble Shooting According To Fault Indication......50 www.redeal.pt... - Page 3 7.3 Trouble Shooting In Else Cases............ 51 8. Battery Maintenance ................52 9. Communication Port................53 9.1 USB Interface ................53 9.2 Dry contact Interface ..............53 9.3 RS-232 Interface （optional） ............. 53 9.4 Intelligent slot................. 53 10. Software .................... 54 www.redeal.pt...
-
Page 4: Safety And Emc Instructions
★ An appropriate disconnect device as short-circuit backup protection should be provided in the building wiring installation. ★ The equipment is powered by two sources: the mains source, the internal battery or the external battery source. www.redeal.pt... -
Page 5: Operation
It is to be serviced only by qualified maintenance personnel. ★ Caution - risk of electric shock. Even after the unit is disconnected from the mains power supply (building wiring terminal), components inside the UPS are still connected to the battery which are potentially dangerous. www.redeal.pt... -
Page 6: Transport
1.4 Transport ★ ★ ★ ★ Please transport the UPS only in the original packaging to protect against shock and impact. 1.5 Storage ★ The UPS must be stockpiled in the room where it is ventilated and dry. www.redeal.pt... -
Page 7: Standards
Level 3 ..: IEC/EN 61000-4-8 Level 3 Voltage Dips ..: IEC/EN 61000-4-11 Low Frequency Signals.....:IEC/EN 61000-2-2 Warning: This is a product for commercial and industrial application in the second environment-installation restrictions or additional measures may be needed to prevent disturbances. www.redeal.pt... -
Page 8: Description Of Commonly Used Symbols
Deal 2. Description of Commonly Used Symbols Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning: www.redeal.pt... -
Page 9: Introduction
Output power factor is 0.9, perfect output sine waveform, suitable almost all critical equipment. High input power factor ≥0.99, overall high efficiency ≥0.92, save power and wiring expense for user. Low input current distortion, avoid power pollution. www.redeal.pt... -
Page 10: Electrical Specifications
< 5% @ full load ≥ Power Factor 0.99 @ full load *Rated current while input rated voltage is 230VAC OUTPUT Model No. 6K & 6K-KS 10K & 10K-KS Power rating 6kVA/5.4kW 10kVA/9kW 208*/220/230/240×（1 士 1%）VAC Voltage Frequency 50/60×（1±0.05）Hz (Battery mode) www.redeal.pt... -
Page 11: Operating Environment
32Amax 50Amax BAT pack 3.3 Operating Environment Operating Temperature C to 45 Operating humidity < 95% Altitude < 1000m* Storage temperature C to 50 *The load capacity should be derated 1% every 100m heightened on the basis of 1000m. www.redeal.pt... -
Page 12: Typical Backup Time (Typical Values At 25°C In Minutes)
100 % Load 3.5 Dimensions and weights Dimensions W×H×D Net Weight Model No. (mm) (kg) 260 x 708 x 550 6K-KS 260 x 708 x 550 25.5 260 x 708 x 550 10K-KS 260 x 708 x 550 29.5 www.redeal.pt... - Page 13 Deal Deal Fig. 3-1 Front view www.redeal.pt...
- Page 14 Deal USB Port RS 232(optional) EPO Port Dry contact Intelligent Slot Parallel Port Maintenance Switch Input Breaker Terminal Block 6K & 6K-KS 10K & 10K-KS Fig. 3-2 Back View www.redeal.pt...
-
Page 15: Installation
Warning: the plastic poly-straps around the shipping container are under tension. While cutting, don’t face to them, they will spring back and may cause eye injury. The shipping materials are recyclable. After unpacking, save them for later use or dispose of them appropriately. www.redeal.pt... -
Page 16: Input And Output Power Wires And Protective Earth Ground Installation
Condensation to water drops may occur if the UPS is unpacked in a very low temperature environment. In this case it is necessary to wait until the UPS is fully dried inside out before proceeding installation and use. Otherwise there are hazards of electric shock. www.redeal.pt... - Page 17 AC contactor: RISK OF VOLTAGE BACKFEED. Isolate the UPS before operating on this circuit, then check for hazardous voltage between all terminals. www.redeal.pt...
- Page 18 UPS’s maximum input current. Otherwise the receptacle may be burned and destroyed. 7) The protective earth ground wire should be installed first according to the following diagram. It is better to use green wire or green wire with yellow ribbon wire. www.redeal.pt...
- Page 19 “ON” position, the UPS will charge the batteries automatically. It can also use the UPS immediately without charging the batteries, but the backup time may be less than the standard value. www.redeal.pt...
-
Page 20: Operating Procedure For Connecting With The External Battery
1) Ensure the UPS is not powered on and the mains input breaker is set in the “OFF” position. 2) A DC breaker must be installed between the external battery pack and the UPS. The capacity of breaker must be not less than the data specified in the general specification. www.redeal.pt... -
Page 21: Epo Connection
EPO status, then UPS would stop alarm and recover to Bypass model. And UPS needs be turned on by manual operation. The polarity of connector could be inversed by setting in LCD menu in the chapter of 5.4.7. Contact your local distributor for further information before modifying the settings. www.redeal.pt... -
Page 22: Operation
When the unit is powered on and is in Bypass Turn on mode, press this button for more than 1s to turn ON When the unit has been turned ON, press this Turn off button for more than 3s to turn OFF www.redeal.pt... - Page 23 △ △ △ △ Turning on Line mode ● ↑ ● ● ↑ Battery mode ● ● ↑ HE mode △ △ △ △ Battery test mode ↑ ● Fault mode ★ ↑ ↑ ↑ Warning mode www.redeal.pt...
- Page 24 Status summary, including mode and load Alarm status, if any are present Notes: alarm including fault and warning information Battery and charger status, including battery voltage, charge level and charger status Running information including parallel UPS and running time www.redeal.pt...
-
Page 25: Operating Mode
5.2 Operating mode ь ᗐ The different graphic symbol could be displayed corresponding to current operating mode or status. 5.2.1 Line mode The example of LCD display in Line mode is shown in the following diagram. Fig. 5-3 Line mode www.redeal.pt... - Page 26 The UPS does not have the backup function when it is in bypass mode. The power used by the load is supplied from the mains power via internal filter. The UPS will beep once every 2 minutes in bypass mode. Fig. 5-5 Bypass mode with output www.redeal.pt...
- Page 27 Once the mains power is loss or abnormal, the UPS will transfer to Line mode or Battery mode and the load is supplied continuously. Fig. 5-7 HE mode The function could be enabled through the LCD setting or the software (Winpower, etc.). www.redeal.pt...
- Page 28 UPS. Normally the problems are not fatal and the UPS continues working, but they should be paid attention to, or the UPS may fail. The detailed warning table is shown in chapter of 7. www.redeal.pt...
- Page 29 When the UPS is overload, the alarm will beep twice every second. Some unnecessary loads should be get rid of one by one to decrease the loads connected to the UPS, we suggest to go less than 90% of its nominal power capacity. www.redeal.pt...
- Page 30 �щ Fig. 5-12 Battery test And if the battery status detected is “battery disconnected”, the symbol of battery failure would be shown and UPS would alarm. Fig. 5-13 Battery fails www.redeal.pt...
-
Page 31: Turning On And Turning Off Ups
1s, UPS starts to turn on. A few seconds later, the UPS turns into Battery mode. If the mains power comes back, the UPS will transfer to Line mode without output interruption of the UPS. www.redeal.pt... -
Page 32: Lcd Operation
In the default UPS status summary screen, when pressing >1s, the display would enter main menu tree. The main menu tree includes six branches: UPS status menu, event log menu, measurement menu, control menu, identification menu, setting menu. www.redeal.pt... - Page 33 Deal WELCOME UPS status Alarm # 41 Event log Battery Volt: 220V Battery charging Charger level:100% Measurements Status: Increase mode �щ Para Num: 2 Running time: 0001: 03: 01: 00 Control Identification Settings Fig. 5-14 Main menu tree www.redeal.pt...
- Page 34 UPS status menu tree. The content of UPS status menu tree is same as the default UPS status summary menu. By pressing >1s, the display would return the last main menu tree. ̭ 薰 Fig. 5-15 UPS status menu tree www.redeal.pt...
- Page 35 The max number of record is 50, when the number is larger than 50, the oldest one would be changed to the newest information. By pressing more than 1s, the display would return the last main menu tree. ̭ 薰 Fig. 5-16 Event menu tree www.redeal.pt...
- Page 36 A lot of detailed useful information could be checked here, Ex. the output voltage and frequency, the output current, the load capacity, the input voltage and frequency, etc. By pressing >1s, the display would return the last main menu tree. ̭ 薰 Fig. 5-17 Measurement menu tree www.redeal.pt...
- Page 37 Bypass mode. And the reason of fault should be checked and deleted before UPS is turned on again by manual operation. Restore factory settings: all the settings would be recover to default factory settings. It could only be done in Bypass mode. www.redeal.pt...
- Page 38 Deal �щ Fig. 5-18 Control menu tree www.redeal.pt...
- Page 39 “Identification”, the display would enter the next identification menu tree. The identification information includes UPS serial number, firmware serial number, model type, would be shown here. By press >1s, the display would return the last main menu tree. www.redeal.pt...
- Page 40 The unsuitable option set by user may result in potential failures or protecting function loss, even directly damage the load, battery or UPS. The most of settings could only be done while UPS is in Bypass mode. www.redeal.pt...
- Page 41 “Identification”, the display would enter the next setting menu tree if “User password” is disabled. If “User password” is enabled, the user should enter the password by press , and , then enter the next setting menu tree. www.redeal.pt...
- Page 42 *Password is AAAA when enabled. **Read the chapter of 6.1 and 6.2, before using high efficiency or converter function. ***Ensure the real battery quantity is same as the setting, or the batteries would be damaged permanently. Example: set rated output voltage value www.redeal.pt...
- Page 43 Deal Fig. 5-22 Set rated output voltage value �щ www.redeal.pt...
-
Page 44: Special Function
So the function is not suitable to some sensitive loads, and the region where the mains power is unstable. 6.1.2 Set the function The function could be enabled through the LCD setting in Bypass mode. Enter the power strategy setting menu by following chapter of 5.4.7. www.redeal.pt... -
Page 45: Converter Function
For occasions where reliability is highly depended on, N+X is the optimal mode. As long as the UPS is equipped with parallel cables, up to 4 UPSs can be connected in parallel to realize output power sharing and power redundancy. www.redeal.pt... - Page 46 Please refer to the wiring diagram in the following diagram. The distance between the UPSs in parallel and the breaker panel is required to be less than 20 meters. The difference between the wires of input and output of the UPSs is required to be less than 20%. www.redeal.pt...
- Page 47 Deal �щ Fig. 6-1 Input and output Terminal Block wiring diagram www.redeal.pt...
- Page 48 1V. If the difference is more than 1V, check the wiring. 11) Press the button of one UPS, each UPS would start to turn on, all the UPSs would transfer to the INV mode together. Measure the output voltage of each UPS separately to check if www.redeal.pt...
- Page 49 “BPS” to “UPS”, then set the UPS own maintenance switch from “BPS” to “UPS” and screw the maintenance cover plate back again. Press the button of one UPS, each UPS would start to turn on, after turning on, the UPSs should work parallel in the Line mode. www.redeal.pt...
- Page 50 “BPS” to “UPS”, then set the UPS own maintenance switch from “BPS” to “UPS” and screw the maintenance cover plate back again. Press the button of one UPS, each UPS would start to turn on, after turning on, the UPSs should work parallel in the Line mode. www.redeal.pt...
-
Page 51: Trouble Shooting
Check if some loads are failed. Fan Failure Fan abnormal Check if the fan is running normally. Charger Fail The charge fails Consult dealer. Battery Over Voltage Battery voltage is Check if the battery quantity is higher than normal right. value www.redeal.pt... - Page 52 There are different The UPSs with different UPSs in parallel capacity (Ex. one 6KVA and system one 10KVA) are forbidden to parallel. ECO In Para HE function is HE function is forbidden in enabled in parallel parallel system. system www.redeal.pt...
-
Page 53: Trouble Shooting According To Fault Indication
The load is pure Remove some non-critical inductive and loads. capacitive Bypass supplies the load first, ensure there is no overload, then turn on UPS. Cable male and female The parallel cable is Check the parallel cable. Loss fault disconnected www.redeal.pt... -
Page 54: Trouble Shooting In Else Cases
3. LCD/LED display information, Buzzer alarm status 4. Mains power condition, load type and capacity, environment temperature, ventilation condition 5. The information (battery capacity, quantity) including external battery pack if present 6. Other information for complete description of the problem www.redeal.pt... -
Page 55: Battery Maintenance
If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. We suggest to replace the battery at least every 4 years ( at 25°C) www.redeal.pt... -
Page 56: Communication Port
9.4 Intelligent slot This series is equipped with an intelligent slot for other optional card to achieve remote management of the UPS through internet / intranet, or relay card, or ModBus Card. Please contact your local distributor for further information. www.redeal.pt... -
Page 57: Software
3. When downloading all required files from the internet, enter the serial No: 511C1-01220-0100-478DF2A to install the software. When the computer restarts, the WinPower software will appear as a green plug icon located in the system tray, near the clock. www.redeal.pt...
