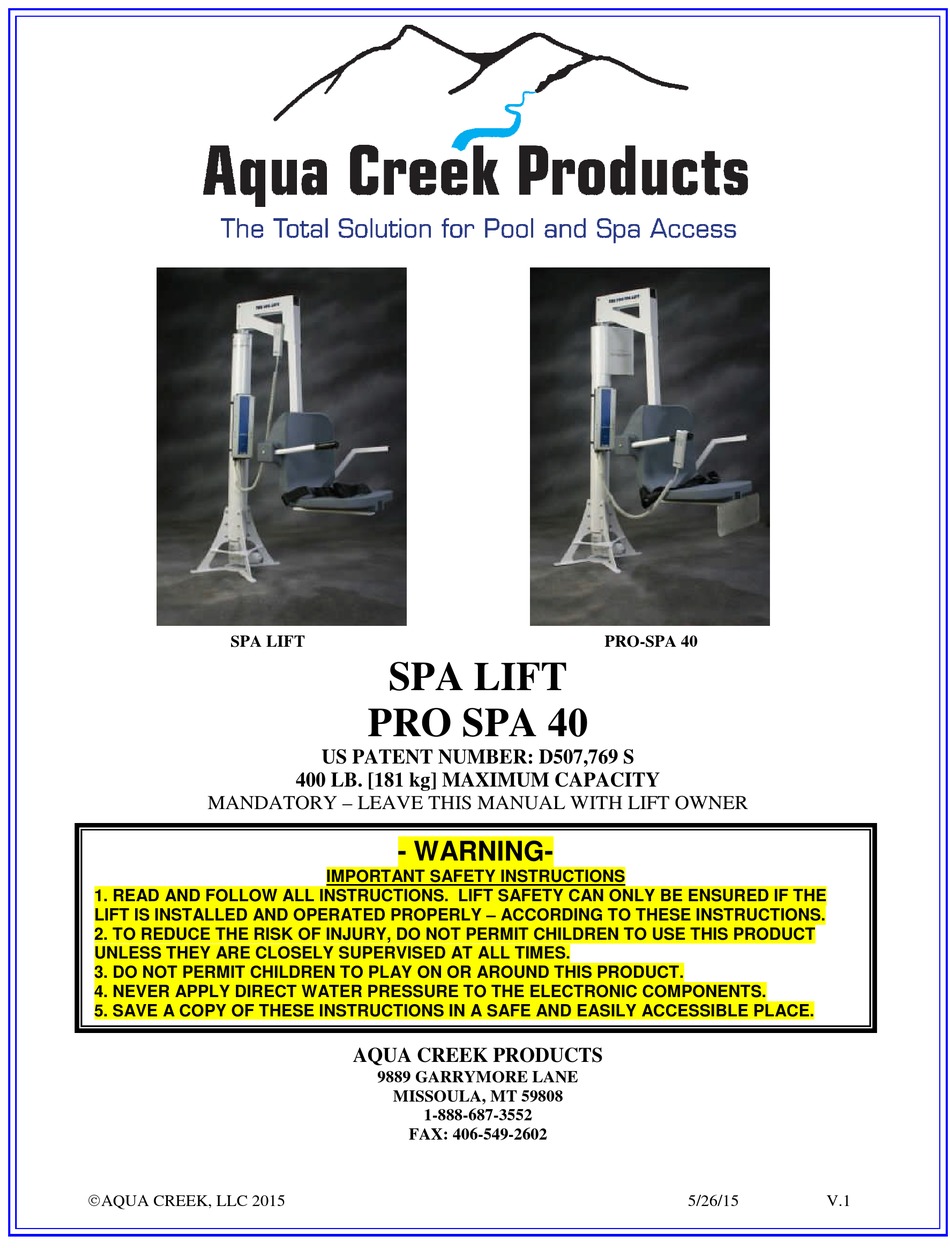

SPA LIFT
PRO-SPA 40
SPA LIFT
PRO SPA 40
US PATENT NUMBER: D507,769 S
400 LB. [181 kg] MAXIMUM CAPACITY
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
- WARNING-
IMPORTANT SAFETY INSTRUCTIONS
1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE
LIFT IS INSTALLED AND OPERATED PROPERLY – ACCORDING TO THESE INSTRUCTIONS.
2. TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS PRODUCT
UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3. DO NOT PERMIT CHILDREN TO PLAY ON OR AROUND THIS PRODUCT.
4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS.
5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE.
AQUA CREEK PRODUCTS
9889 GARRYMORE LANE
MISSOULA, MT 59808
1-888-687-3552
FAX: 406-549-2602
AQUA CREEK, LLC 2015
5/26/15
V.1
Advertisement
Related Manuals for Aqua Creek SPA LIFT
Summary of Contents for Aqua Creek SPA LIFT
- Page 1 4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS. 5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE. AQUA CREEK PRODUCTS 9889 GARRYMORE LANE MISSOULA, MT 59808 1-888-687-3552 FAX: 406-549-2602 AQUA CREEK, LLC 2015 5/26/15...
-
Page 2: Parts List
Refer to page 4 for parts identification. PARTS LIST CRATE 1 1. SPA LIFT ASSEMBLY ITEMS INCLUDED WITH SPA LIFT/ PRO SPA 40 LIFT 1. (1) 24V BATTERY 2. (1) BATTERY CHARGER 3. (1) HAND CONTROLLER 4. (1) SEAT BELT 5. - Page 3 ANCHOR INSTALLATION INSTRUCTIONS TOOLS NEEDED: Hammer, 1 1/8” Masonry Bit, Drill, Marker/Chalk Before installing the anchors, it is necessary to determine where you want to place the lift on your deck. You will want to locate the lift as close to the outside wall of your pool/spa as possible to ensure that the seat arm clears your spa/pool wall.
- Page 4 INSTALLING THE LIFT 1.) Once the anchors have been installed, you can now install the lift. Position the lift over the anchors as shown in figure 2. 2.) Using the supplied hardware, secure the lift to the deck as shown in figure 2. 3.) Attach the supplied safety belt to the chair by opening each end of the belt and looping the ends through the slots on either side of the chair as shown in figure 2.
- Page 5 When the desired angle is achieved tighten the jam nut to lock the angle. OPERATING INSTRUCTIONS SPA LIFT AND PRO SPA 40 NOTE: CHECK ALL NUTS & BOLTS FOR TIGHTNESS BEFORE EACH USE NOTE (PRO SPA 40 ONLY): CHECK DRIVE BELT FREQUENTLY TO PREVENT SLIPPAGE AND PROLONG SYSTEM LIFE.
- Page 6 PRO SPA 40 USERS (AUTO-ROTATE) Now take the handheld controller and press the “up” arrow at the top of the controller. The lift should start to move up smoothly. Continue holding the “up” arrow button until you have cleared the pool/spa wall. Once the user has cleared the pool/spa wall vertically, press either of the lower buttons on the handheld controller to rotate over the pool/spa wall.
- Page 7 Finally, release the safety belt, flip up the arm rest, and exit the chair. OPERATING INSTRUCTIONS SPA LIFT LEG REST NOTE: CHECK ALL NUTS & BOLTS FOR TIGHTNESS AND FOR WORN PARTS...
- Page 8 You may transfer to the chair from either side, by flipping up the armrest on the preferred side to allow for easy lateral transfer. Once you are in the chair, lower the flip-up arm back into its normal position for operating the lift. If your lift is equipped with a leg-rest, position your legs comfortably on the leg-rest.
- Page 9 BATTERY SYSTEM OPERATING INSTRUCTIONS WALL MOUNT CONTROL BOX HANDHELD CHARGER CONTROLLER 24 V SEALED BATTERY The Spa and Pro Spa Battery system come with a 24v sealed rechargeable battery, wall mount charging unit (with mounting bracket), control box, and a waterproof handheld controller. The control box is mounted to the lift has a plug-in socket for the actuator, the rotate motor (Pro Spa) and the handheld controller.
-
Page 10: Battery Maintenance
BATTERY MAINTENANCE 1. RECHARGE THE BATTERY AS OFTEN AS POSSIBLE. The battery power unit is a sealed lead acid battery pack. Frequent recharges will prolong the battery life and maintain a high cold amperage capacity. THE BATTERY CAN BE STORED ON THE CHARGER WHEN NOT IN USE. - Page 11 EXPLODED VIEW PRO SPA 40...
- Page 12 NUT, 316 SS, NYLOCK, 1/2"-13 1 BOLT, 3/8-16 X 1 1/4 HCS BOLT, 316 SS, 3/8-16 X 1 1/4 HCS 2 P-SLE110 SLEEVE, UHMW, FOR SPA LIFT SEAT POLE 2 BOLT, 3/8-16 X 3/4 HCS BOLT, 316 SS, 3/8-16 X 3/4 HCS...
- Page 13 EXPLODED VIEW SPA LIFT...
- Page 14 SPA LIFT PARTS LIST ITEM # QTY PART NUMBER DESCRIPTION 1 SPA/PSPAWM-SA-0904SBA WELDMENT, BASE, SPA/PRO SPA 1 SPAWM-A-1050SH SPA LIFT CYLINDER WELDMENT 1 SPA/PSPA-SA-1004SPS PISTON ASSY, SPA/PRO SPA 1 SPA/PRO SPA UPPER ARM SPA/PRO SPA UPPER ARM ASSEMBLY 1 SPA/PSPA-SA-1050CA...
-
Page 15: Seat Assembly Parts List
SEAT ASSEMBLY PARTS LIST ITEM NO. QTY. PART NUMBER DESCRIPTION 1 P-901 CHAIR, PLASTIC, 18" BLUE 2 P-2100FLA-38 CHAIR II ARMREST TUBE 1 P-1208HSB BRACKET, PLASTIC, HANDSET BRACKET 2 RUBBER HAND GRIPS GRIP, RUBBER HAND GRIP 2 SCREW, #12 X3/4 FHSMS SCREW, 316 SS, #12 X3/4", FHSMS 4 FLAT WASHER, 1/4 SS WASHER, FLAT, 1/4, 316 SS 2 BOLT, 1/4-20 X3 1/4 BHSCS BOLT, 316 SS, 1/4-20 X3 1/4 BHSCS... - Page 16 CARE OF YOUR LIFT Routine cleaning is an absolute necessity to ensure the integrity of the lift. Note that the Aqua Creek Pool Lift should not be stored in a pump room or in a storage room where pool chemicals are kept. Storing the lift near pool chemicals may cause rusting and other damage to occur.
-
Page 17: Belt Tightening
BELT TIGHTENING: The drive belt should be checked periodically to ensure it is tight, to ensure that the lift rotates properly. To check the drive belt remove the motor shroud (see parts section) and check that the drive belt is snug and does not slip when the lift is rotated. If the belt slips or does not seem tight, tighten the belt using a pry-bar and a combination wrench as shown. - Page 18 AQUA CREEK PRODUCTS 24V SPA/PRO SPA LIFT TROUBLESHOOTING GUIDE Before troubleshooting make sure the battery is fully charged. If the lift doesn’t move when the handset button is pressed: When you can’t get the lift to move check the following things: Make sure the battery is fully charged: A.
- Page 19 If the battery is fully charged and the lift is not moving then: Check all cords: A. Check that the cords are properly plugged in. Start by unplugging the remote and the actuator cord from the control box. Once these cords are removed check the ends for corrosion or damage.
- Page 20 If the lift stops moving over the water and is stuck: 4. Then try pushing the emergency button: A. If the lift gets stuck out over the water use a pen or pencil tip and stick it into the emergency button on the front of the control box to retract the lift.
- Page 21 Non-payment for product to Aqua Creek may void warranty. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect. Within thirty (30) days after receipt of a written warranty claim by Aqua Creek, and barring any unforeseen delays, the place of purchase will be notified of Aqua Creek’s decision regarding the claim.
