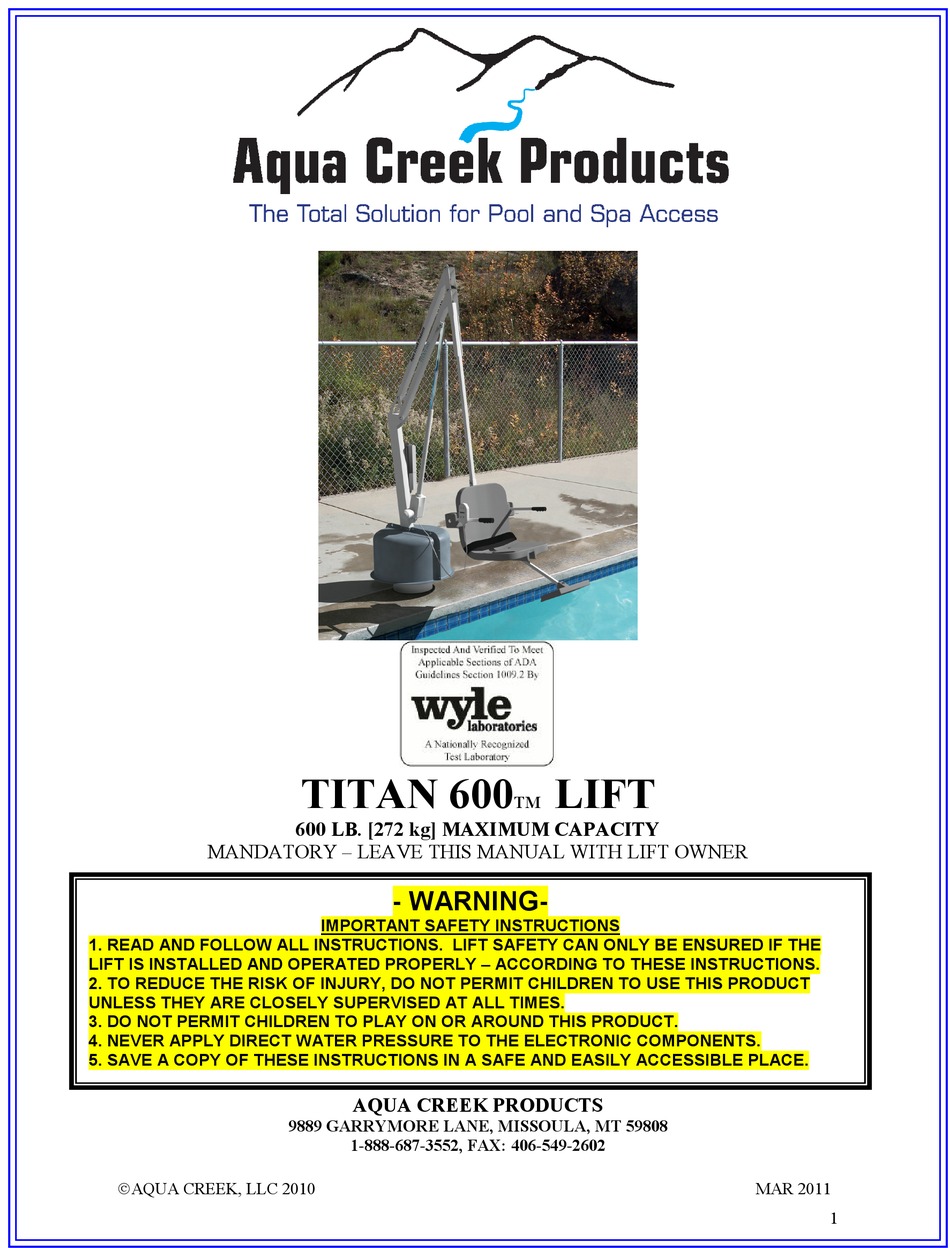

TITAN 600
LIFT
TM
600 LB. [272 kg] MAXIMUM CAPACITY
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
- WARNING-
IMPORTANT SAFETY INSTRUCTIONS
1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE
LIFT IS INSTALLED AND OPERATED PROPERLY – ACCORDING TO THESE INSTRUCTIONS.
2. TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS PRODUCT
UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3. DO NOT PERMIT CHILDREN TO PLAY ON OR AROUND THIS PRODUCT.
4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS.
5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE.
AQUA CREEK PRODUCTS
9889 GARRYMORE LANE, MISSOULA, MT 59808
1-888-687-3552, FAX: 406-549-2602
AQUA CREEK, LLC 2010
MAR 2011
1
Advertisement
Table of Contents
Related Manuals for Aqua Creek TITAN 600
Summary of Contents for Aqua Creek TITAN 600
- Page 1 4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS. 5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE. AQUA CREEK PRODUCTS 9889 GARRYMORE LANE, MISSOULA, MT 59808 1-888-687-3552, FAX: 406-549-2602 AQUA CREEK, LLC 2010 MAR 2011...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE ASSEMBLY OVERVIEW LIFT LOCATION: ADA GUIDELINES (USA) APPLICATION GUIDE ANCHOR INSTALLATION: RETROFIT ANCHOR INSTALLATION: NEW CONSTRUCTION STEP 1: LIFT ASSEMBLY STEP 2: INSTALL LIFTING ARM STEP 3: INSTALL CONTROL ARM STEP 4: INSTALL SEAT ARM STEP 5: INSTALL SEAT ASSEMBLY STEP 6: INSTALL FOOTREST STEP 7: INSTALL BATTERY &... -
Page 3: Assembly Overview
(1) 3/16” ALLEN WRENCH UNPACKING THE SHIPPING CONTAINER: When you receive your new Aqua Creek TITAN 600 pool/spa lift, check your shipment carefully. Locate all main components and hardware listed above. The tools listed will be needed to install and... - Page 4 Before installing the TITAN 600 Lift it will be necessary to select a location for the anchor. Because of its versatility the TITAN 600 Lift can be installed in a wide variety of locations, but the owner/installer should be aware of the requirements of the Americans with Disabilities Act (ADA) with concern to lift installations.
-
Page 5: Application Guide
(height) positions. With the seat in its highest position the TITAN 600 lift will clear a 30” [762mm] high spa or pool wall. Also, because the TITAN 600 lift rotates in either direction a full 360º... -
Page 6: Anchor Installation: Retrofit
ANCHOR INSTALLATION: RETROFIT INSTRUCTIONS The TITAN 600 lift should be installed in a deck or footing with the following specifications: 1. MINIMUM FOOTING SIZE: 4’ - 0” x 4’ - 0” x 12” THICK. 2. MINIMUM CONCRETE STRENGTH: 3000 PSI 3. -
Page 7: Anchor Installation: New Construction
ANCHOR INSTALLATION: NEW CONSTRUCTION For new construction a footing should be poured according to the diagram below. Again, make sure the anchor is installed flush and plumb with the deck surface. Again, the footing should have the following specifications: 4. MINIMUM FOOTING SIZE: 4’ - 0” x 4’ - 0” x 12” THICK. 5. - Page 8 INSTALLATION & ASSEMBLY INSTRUCTIONS: STEP 1: INSERT MAIN ASSEMBLY INTO ANCHOR Locate the TITAN 600 MAIN ASSEMBLY and lift it from the shipping container. WARNING! NEVER LIFT THE MAIN ASSEMBLY USING THE LINEAR ACTUATOR AS A HANDLE! LIFT THE ASSEMBLY FROM THE ENDS.
-
Page 9: Step 2: Install Lifting Arm
STEP 2: INSTALL LIFTING ARM Locate the LIFTING ARM and the following hardware: • (1) 1/2” x 2-3/4” SHOULDER BOLT • (1) 3/8” x 1-3/4” SHOULDER BOLT (1) 5/16” FLAT WASHER • • (1) 5/16” NYLOCK NUT • (2) 3/8” FLAT WASHER •... -
Page 10: Step 3: Install Control Arm
STEP 3: INSTALL CONTROL ARM Locate the CONTROL ARM and the following hardware: • (1) 1/2” x 2-3/4” SHOULDER BOLT • (1) 3/8” FLAT WASHER • (1) 3/8” NYLOCK NUT Install the CONTROL ARM (either end) onto the MAST as shown in the figure above. Tighten the NYLOCK NUT until snug as shown in PHOTO 3. -
Page 11: Step 4: Install Seat Arm
STEP 4: INSTALL SEAT ARM Locate the SEAT ARM and the following hardware: • (2) 1/2” x 3” SHOULDER BOLT • (2) 3/8” FLAT WASHER • (2) 3/8” NYLOCK NUT Install the SEAT ARM at the ends of the CONTROL ARM and LIFTING ARM as shown in the figure above. - Page 12 STEP 5: ADJUST THE SEAT POSITION The SEAT ASSEMBLY will arrive attached to the SEAT ARM adjusted to its highest position. To adjust the SEAT ASSEMBLY to a lower position remove the hardware as shown above. Slide the SEAT ASSEMBLY to its desired position (in 4” increments) and reinstall the hardware.
-
Page 13: Step 6: Install Footrest
STEP 6: INSTALL THE FOOTREST Locate FOOTREST ASSEMBLY and install it on the seat shown above. QUICK RELEASE attached SEAT ASSEMBLY with a lanyard (cable). Pull out the pin and slide the FOOTREST ASSEMBLY into the slot and line up one of the holes on the FOOTREST TUBE with the hole for the pin. -
Page 14: Step 7: Install Battery & Handset
STEP 7: INSTALL 24V BATTERY & HANDSET Locate the 24V Battery, the Battery Charging unit and the Handset Control. Charge the battery for 24 hours (see page 16 “Charging the Battery”) then install it on the bracket above the Control Box as shown above and in the photo to the left. Plug the Handset Control into the Control Box as shown above and in the photo to the left. -
Page 15: Lift Operation
LIFT OPERATION: Before operating the lift for the first time, the user or operator should become familiar with the Handset Control and its functions. The figure to the left gives a quick explanation of the four buttons and their function. For example, to move the lift UP, press the top left button with the ▲... - Page 16 WARNING MAKE SURE THE AREA AROUND THE TITAN LIFT IS CLEAR BEFORE OPERATING. NEVER OPERATE THE LIFT WITH ANY PERSON WITHIN THE OPERATING RANGE OF THE LIFT, INCLUDING ON THE DECK OR IN THE WATER. NEVER MOVE THE LIFT DOWN WHILE OVER THE DECK. IF THE LIFT COMES INTO CONTACT WITH THE DECK OR A WALL, RELEASE THE BUTTON IMMEDIATELY OR PRESS THE EMERGENCY STOP BUTTON.
- Page 17 CARE OF YOUR LIFT Routine cleaning is an absolute necessity to ensure the integrity of the lift. Note that the Aqua Creek Pool Lift should not be stored in a pump room or in a storage room where pool chemicals are kept. Storing the lift near pool chemicals may cause rusting and other damage to occur.
-
Page 18: Troubleshooting Guide
TROUBLESHOOTING GUIDE Before troubleshooting make sure the battery is fully charged. If the lift doesn’t move when the handset button is pressed: When you can’t get the lift to move check the following things: Make sure the battery is fully charged: A. - Page 19 If the battery is fully charged and the lift is not moving then: Check all cords: Check that the cords are properly plugged in. Start by unplugging the remote and the actuator cord from the control box. Once these cords are removed check the ends for corrosion or damage.
- Page 20 ITEM # QTY. DESCRIPTION PART NUMBER REVOLUTION/TITAN BASE GEAR REV-100-30 PARTS LIST: REVOLUTION/TITAN COVER P-930 TITAN BASE ASSEMBLY REV-200-65 TITAN MOTOR PLATE REV-310-40 REVOLUTION/TITAN MOTOR GEAR REV-320-00 TITAN MAST ASSEMBLY REV-400-PL2 TITAN BOOM ARM REV-500-20 TITAN CONTROL ARM REV-600-20 TITAN SEAT ARM REV-700-10 REVOLUTION/TITAN SEAT BRACKET REV-800-10...
- Page 21 PARTS LIST: SEAT ASSEMBLY ITEM # QTY DESCRIPTION PART NUMBER 1 SEAT BODY F-132RC 2 SEAT ARMREST TUBE SA-0904SAT 2 SEAT ARMREST HANDGRIP RUBBERFINGERGRIPS 1 SAFETY BELT ASSEMBLY F-11SB 2 1/4"-20 x 3" HEX BOLT, S.S. BOLT1/4X3SSHEX 2 1/4" FLAT WASHER, S.S. FLATWASHER1/4SS 1 1/4"...
- Page 22 EXCEED THE RATED LIFTING CAPACITY OF 600 POUNDS [272 kg] FOR THE TITAN 600 LIFT. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect.
