Avital 2101L Owner's Manual

Hide thumbs Also See for 2101L:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
The company behind Avital
is Directed.
Since its inception, Directed has had one purpose,
to provide consumers with the finest vehicle security
products and accessories available. The recipient of
nearly 100 patents and Innovations Awards in the field
of advanced electronic technology.
Quality Directed products are sold and serviced
throughout North America and around the world.
Call (800) 876-0800 for more information about our
products and ser vic es.
©
2015 Directed, All rights reserved.
Directed is committed to delivering world class
Vista, CA 92081
www.avital.com
quality products and services that excite and
delight our customers.
Auto Security Systems
®
G2101L 2015 04
IT'S YOUR CAR - CONTROL IT FROM THE START
O W N E R' S
G U I D E
M
O
D
E
L
2101L

Advertisement

Table of Contents
loading

Related Manuals for Avital 2101L

Summary of Contents for Avital 2101L

  • Page 1 The company behind Avital Auto Security Systems ® is Directed. Since its inception, Directed has had one purpose, to provide consumers with the finest vehicle security products and accessories available. The recipient of IT'S YOUR CAR - CONTROL IT FROM THE START nearly 100 patents and Innovations Awards in the field of advanced electronic technology.

  • Page 2: Table Of Contents

    Table of contents What is included ...................... 2 Your warranty ......................2 Important information ....................3 FCC/id notice....................3 System maintenance ..................4 Replacement remote controls ................4 Transmitter functions ....................5 Standard configuration ..................5 Using your system ....................7 Locking ......................

  • Page 3: What Is Included

    What is included • The control module • A pair of four-button trans mit ters • A status LED indicator light • A push-button Valet switch ® • Your warranty registration Your warranty Your warranty registration must be completely filled out and returned within 10 days of purchase.

  • Page 4: Important Information

    You can print additional or replacement copies of this manual by accessing the Directed website at: www.avital.com. FCC/id notice This device complies with Part 15 of FCC rules. Operation is subject to the following con di tions: (1) This device...

  • Page 5: System Maintenance

    412 Series System maintenance The system requires no specific main te nance. Your remote is pow ered by a small, lightweight 3-volt lithium battery (CR2032) that will last approximately one year under normal use. When the battery begins to weaken, operating range is reduced and the LED on the remote starts to dim.

  • Page 6: Transmitter Functions

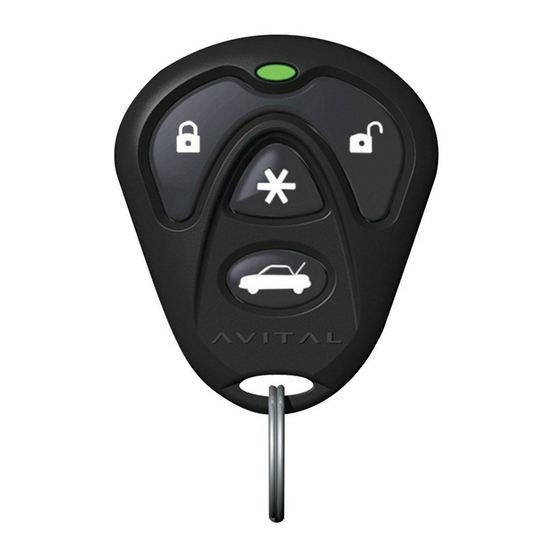

    Transmitter functions The receiver uses a computer-based learn routine to learn the trans mit ter buttons. This makes it possible to assign any specific transmitter button, or combination of buttons, to any receiver function. The transmitter initially comes programmed with the Standard Configuration, but may also be customized by an authorized dealer.
  • Page 7 - An optional auxiliary convenience or expan- sion function that has been added to your system can be activated by pressing these buttons simultaneously. DRW-226 _____________________. The auxiliary output controls DRW-226 © 2015 Directed. All rights reserved.

  • Page 8: Using Your System

    Using your system Locking Pressing for one second locks the doors and acti- ® vates the optional Failsafe Starter Kill (if installed). The parking lights flash once to confirm the system is locked. While the system is locked, the status LED flashes once DRW-226 per second.

  • Page 9: Disabling The System Without A Transmitter

    Disabling the system without a transmitter If your remote transmitter is lost or damaged, you can manually override the starter kill (if installed). To do this, you must have the ve hi cle’s ignition key and know ® where the Valet switch is located.

  • Page 10: Panic Mode

    ® when having the vehicle serviced. In Valet Mode the starter kill cannot be activated even with the trans mit ter, but all con ve nience func tions (door locks, trunk release, etc.) will continue to work normally. To enter or exit Valet Mode: ®...

  • Page 11: Rapid Resume Logic

    Rapid resume logic This Directed system can store its current state to non-volatile memory. If power is lost and then recon- nected, the system recalls the stored state from memory. If the unit is in Valet Mode and the battery is dis con nect ed for any reason such as to service the car - when the battery is re con nect ed the unit will be in Valet Mode.

  • Page 12: Glossary Of Terms

    Glossary of terms Control Unit: The “brain” of your system. Usually hidden under the dash area of the vehicle. It houses the micro- processor that monitors your vehicle and controls all system functions. LED: A light mounted at a discretionary location inside the vehicle.

  • Page 13: Security & Convenience Expansions

    Security & convenience expansions Listed below are some of the many expansion options available for use with your system. Some options may require additional parts and/or labor. Please consult with your dealer for a complete list of options available for use with this system. Domelight Supervision: The domelight will illuminate for 30 seconds each time the system is disarmed using the remote.
  • Page 14 by using the transmitter. The 535T will roll two windows both up and down. The 535T also provides one touch switch operation. Progressive Door Unlocking: For added security, your system can be configured to unlock the driver’s door only, leaving the passenger doors locked. Pressing the unlock button an additional time will unlock the passenger doors.

  • Page 16: Quick Reference Guide

    Quick reference guide • To lock using your remote: Press for one second. The doors lock, and the LED starts to flash. The Failsafe® Starter Kill prevents the vehi- cle’s starter from cranking if it has been in stalled. If DRW-226 audible mode has been enabled, the ve hi cle’s horn (if connected) honks and the parking lights flash...

  • Page 18: Limited Lifetime Consumer Warranty

    Limited lifetime consumer warranty Directed Electronics. (“Directed”) promises to the original purchaser to repair or replace (at Directed’s election) with a comparable reconditioned model any Directed unit (hereafter the “unit”), excluding without limitation the siren, the remote transmitters, the associated sensors and accessories, which proves to be defective in workmanship or material under reasonable use during the lifetime of the vehicle provided the following conditions are met: the unit was purchased from an authorized Directed dealer, the unit was professionally installed and serviced by an authorized Directed dealer;...
  • Page 19 ANY LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.

  • Page 20: Notes

    Notes © 2015 Directed. All rights reserved.
