Page 1: User Manual

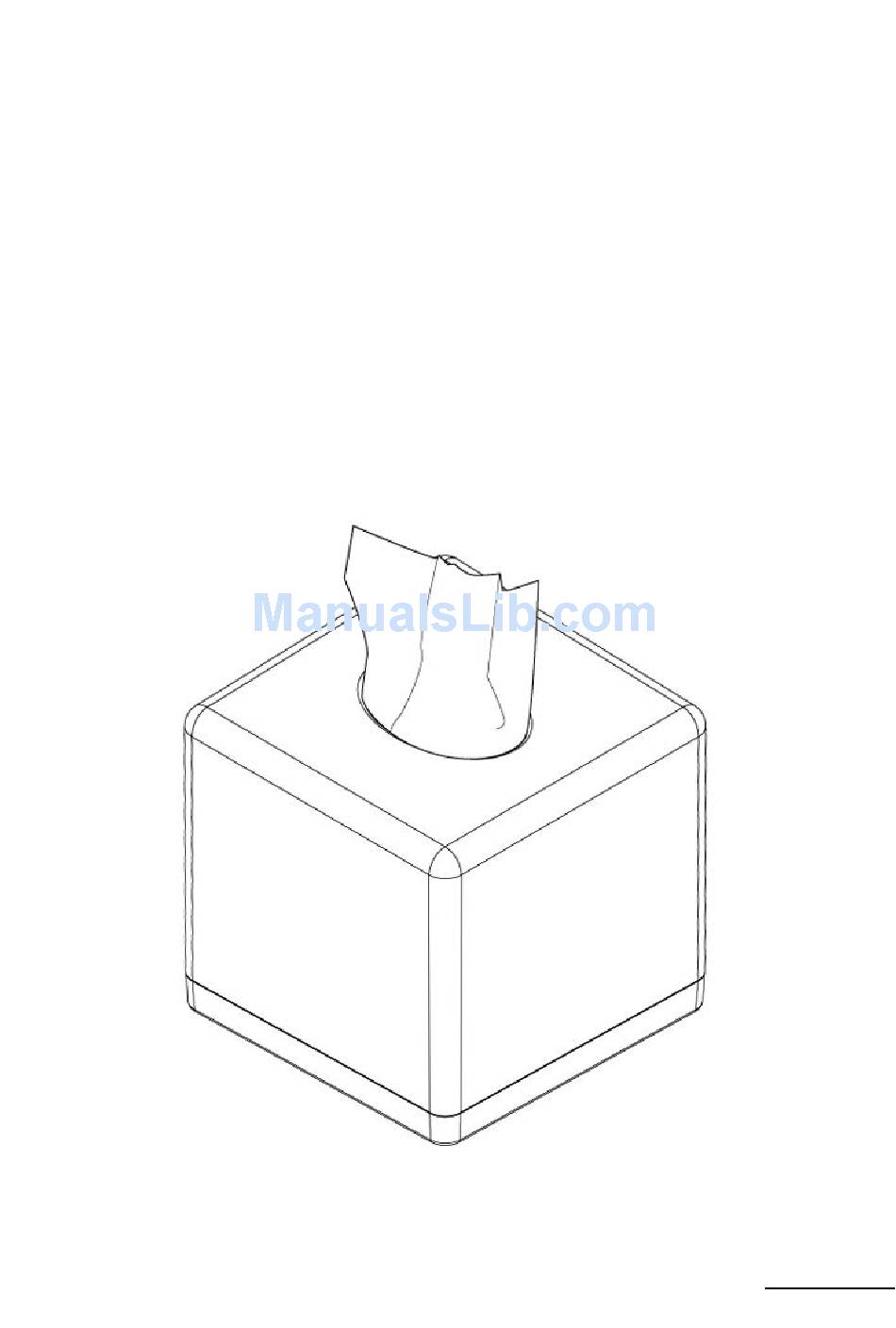

720P Tissue Box - HD Stealth Camcorder - User Manual Ver. 1.4.0 F40709000 Oct 27, 2014... -
Page 2: Table Of Contents
Table of Contents Quick Start Guide ........................... - 2 - Diagram ..............................- 3 - LED Indicator Status..........................- 4 - Package Contains..........................- 5 - Compatible Storage ..........................- 6 - IR Remote Controller..........................- 7 - OSD Menu Structure Tree ........................- 8 - Live View Screen ........................- 9 - OSD Operation ........................- 10 - Specification............................ -
Page 3: Quick Start Guide
Quick Start Guide * insert a battery and a SD card * locate the DVR to a proper * slide the power switch to place “On” * PIR will be triggered when movement pass by * insert the SD card to your PC * play the videos back directly and check the videos through the monitor... -
Page 4: Diagram
Diagram Appearance Perspective - 3 -... -
Page 5: Led Indicator Status
LED Indicator Status LED will light up when you turn the power switch to "ON", and then LED will follow below behavior. Blinking Power Indicator Power on Power off (Red LED) Blinking System ready and Micro Micro SD card is Fast Blinking (0.25s) : SD Card SD card is working... -
Page 6: Package Contains
Package Contains SC1740 Main Unit x 1 3.7V 4800mA Li-polymer Battery x 1 Remote Control x 1 Power Adapter & Cradle x 1 - 5 -... -
Page 7: Compatible Storage
Compatible Storage In order to work properly, below micro SD card brands and class 6 above are highly recommended. * Apacer * Toshiba * Sandisk * Kingston Micro SD card Class 6 or above is highly recommended, and will have smoother footage. Please format the micro SD card or SD card by the 720P DVR series first before recording. -
Page 8: Ir Remote Controller
IR Remote Controller Icon Button Function Description(s) Recording Start to recording manually or to power off the device. Lock / unlock Key lock / unlock Menu Exit to last page or enter into OSD setting. UP / DOWN / LEFT / RIGHT Enter Confirm or enter to next page. -
Page 9: Osd Menu Structure Tree
OSD Menu Structure Tree 1, 2, 3, 4, 5, 10, 15, 30 fps Frame Rate HD/D1 Resolution Recording Best / Better / Fair Quality 5, 10, 15, 20, 60 seconds PIR auto off time Triggering Schedule setting MENU Total Space Total Time Storage Time Left... -
Page 10: Live View Screen
Live View Screen Recording mode Storage mode power indicator Recording resolution Frame rate Storage information Keypad lock mode Date/time stamp - 9 -... -
Page 11: Osd Operation
OSD Operation Press "Menu" to get into the On-Screen-Display (OSD) page and modify the default setting(s). There are five categories in the OSD, they are: "Recording," "Triggering," "Storage," and "Setting". In this page, please press "OK" to enter into any mode, which you would like to adjust. For example, in recording mode, using to select items and using to change setting. - Page 12 2) Triggering: Press to change setting. Press to select item. In the "Schedule," you can select all / column / row to change the schedule setting by hour, day or week at one click - 11 -...
- Page 13 3) Storage: Press to change setting. Press to select item. Total space and total time will be calculated automatically. 4) Setting: Press to change setting. Press to select item. Buzzer "off" will mute the remote control sound. Status display "on" will show all the setting icons on the live-view screen.
- Page 14 Factory Default Factory default will show all the default values in factory setting. Press “Yes” to load default setting 5) Playback mode: Press to enter Playback Menu. Press to select item. Press OK to enter the selected item. **File Serch mode Select the file you would like to playback.
- Page 15 ** Date / Time Search Press to select item. Press to change values Press “OK” to play the file Press when file playback, and then DVR will turn off. - 14 -...
-
Page 16: Specification
Specification Dimension 135*135*128 mm Operation Temperature 0 ºC ~ + 50 ºC Video Resolution HD (720*1280) / D1 (720*576 PAL / 720*480 NTSC) @30fps Power Supply Li-polymer 4800 mAh Video Compression H.264 Video Recording Mode PIR Motion / Panic Playback Fast Forward / Rewind Recording Quality Best / Better / Fair... - Page 17 Thank you for purchasing our 720P Tissue Box. Please read this manual before installation. For customer support, contact your dealer, keep your Invoice for further support. Do not open/modify the device, as it may cause damage to the unit and void the Warranty.
