- Page 1 Flash Drive DVR Manual...
- Page 2 Notice Working Environment: Please abide by the laws concerning your area. Any illegal use of this product is prohibited; otherwise it is at your own risks. Working Temperature: Please use this product in normal room temperatures and not in abnormal temperatures. Working Humidity: Please use it in an environment where the moisture is fit for human beings to live in.

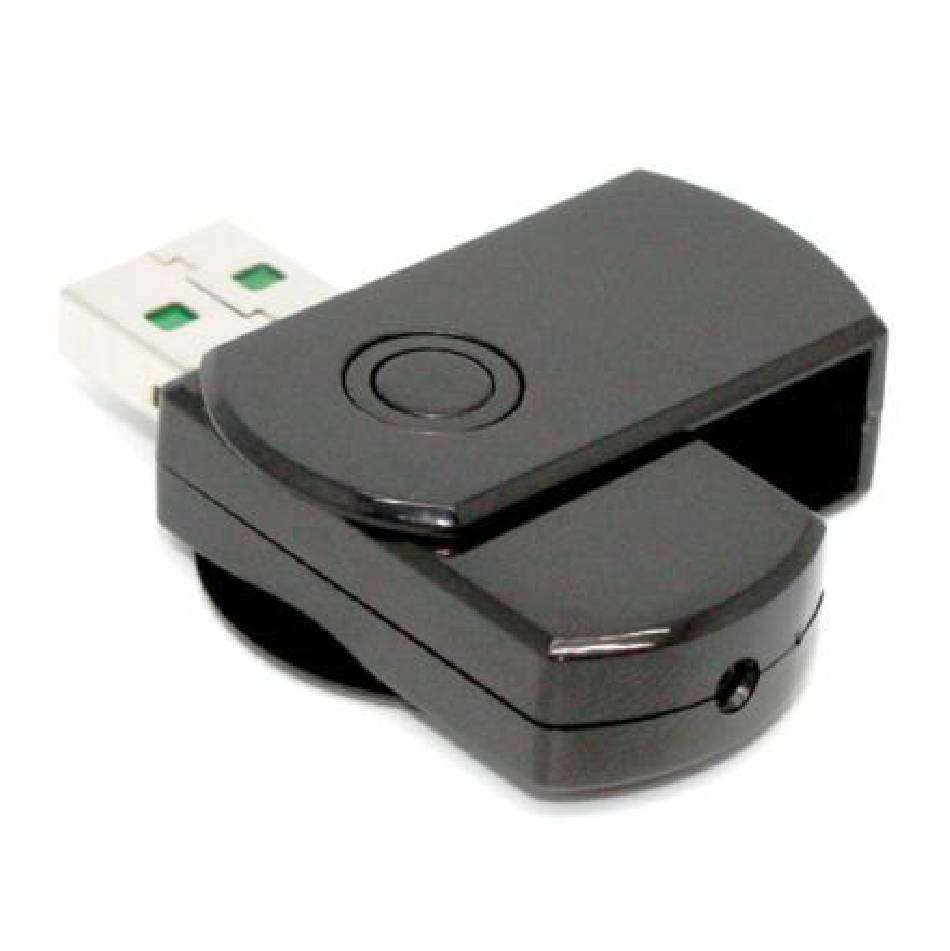

- Page 3 Introduction This is a new generation of miniature digital DVR housed in an ultra-small USB flash drive body with a HD resolution camera and battery. With it, you can capture high quality videos, take pictures, or use for personal monitoring and security. Used as a PC webcam, you can enjoy on-line video chatting or conferencing.
- Page 4 Features ● Sleek Flash Drive Design The 360-degree rotating cover provides a comfortable handle at any angle. The high-speed USB 2.0 port allows for fast data transfers. ● High Definition Camera Video: 1280 x 960 Resolution AVI Files Camera: 1600 x 1200 Resolution JPEG Files ●...
-
Page 5: Product Diagram
Product Diagram... -
Page 6: Basic Functions
Basic Functions 1. Turn On: Press and hold the mode button for approximately 2 seconds. The indicator light will come on as the device searches for a memory card. Card Inserted: The indicator light will flash once and then stay lit. This means the device is in Standby mode and is ready to be operated by the user. - Page 7 3. Record Video: When the device is in Standby mode, short press the mode button once. While recording, the indicator light will flash slowly to remind you that it is in video mode. Short press the button again to save video and put the device back into Standby mode. The maximum single file length is 30 minutes, after which a new file is started.
- Page 8 6. Flash Drive: With the device turned off, connect it to a computer USB port. In this mode, you can access the files from your computer like any other type of removable storage. 7. Webcam Mode: With the device turned off, connect it to a computer USB port and short press the mode button once.
- Page 9 9. Charging the Battery: The device can be charged by connecting it to a computer or other 5V charger with a USB cable. If the indicator light flashes, it means that the device is being charged. If the indicator light stays on, it means that the device is fully charged. The charge time is approximately 2-3 hours.
- Page 10 11. Instructions of the LED Indicator Light: -No Card: LED indicator light shuts off after flashing 3 times. -Full Card: LED indicator light shuts off after flashing for 6 times. -Standby: LED indicator stays on. -Motion Detection Standby: LED indicator flashes quickly. -Video Recording: LED indicator light flashes slowly.
-
Page 11: Specifications
Specifications Video Format Video Resolution 1280*960 Frame Rate of Video 30 fps Picture Format Picture Resolution 1600*1200 Battery Life 60 minutes(approx.) Charging Voltage DC 5V Types of Ports USB 2.0 Memory Card Slot Micro SD...
